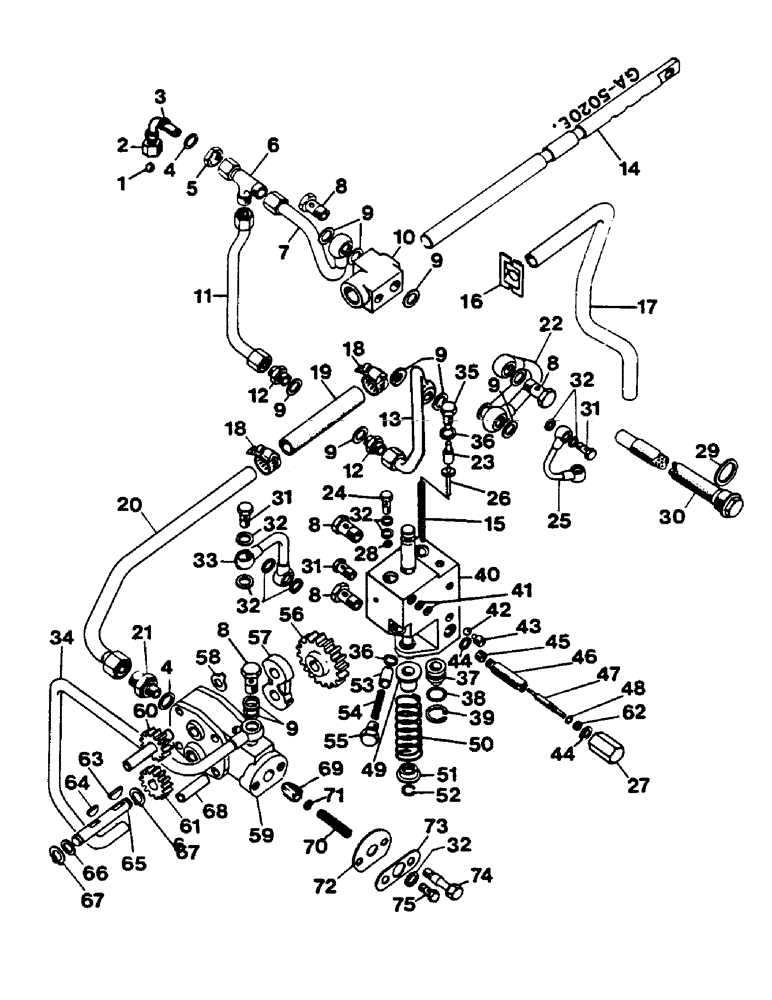

Запчасти Case IH 744 (1F18) - POWER-SHIFT MECHANISM (04) - Drive Train

1

211-1016

BALL,12.7mm OD, Gr 24

Steel

1шт.

2

3058452R1

TUBE NUT,Coupling, M16 x 1.5

union

1шт.

3

3145380R1

ELBOW,Blkhd, M10 Tube

UNION

1шт.

92-11062

LOCK WASHER,5/8"

1шт.

4

933155R1

SEALING RING,M16 x 20 x 1.5

2шт.

5

934021R1

JAM NUT,Thin, M16 x 1.5, Cl 05

1шт.

6

3058078R91

TEE

UNION

1шт.

7

3058073R91

PIPE

pressure

1шт.

8

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

5шт.

9

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing

13шт.

10

3136523R1

JUNCTION

BLOCK

1шт.

11

3058074R92

PIPE

pressure

1шт.

12

3058450R1

HYD CONNECTOR,M14 x 1.5 x M16 x 1.5

2шт.

13

3145899R1

PIPE

pressure

1шт.

14

3137966R1

ROD

644

1шт.

14

3217313R1

ROD

744/844/844S (Y9543-) G

1шт.

14

3145884R2

SHAFT

ROD, 744/844/844S (-Y9542) G

1шт.

15

3134778R1

SPRING

"0" = 7 mm, L = 97 mm (-xxx)

1шт.

15

3223960R1

SPRING

"0" = 12 mm, L = 84 mm (xxx-)

1шт.

16

3059297R1

PLATE, LOCKING

CLIP, suction pipe

2шт.

17

3131744R1

PIPE

suction

1шт.

18

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

333710R91

2шт.

19

3058198R1

HOSE,16.40 mm ID x 2032.00 mm

SUCTION

1шт.

20

3058048R92

PIPE

suction

1шт.

21

3058449R1

HYD CONNECTOR,M16 x 1.5 x M18 x 1.5

1шт.

22

3145898R1

PIPE

pressure

1шт.

23

NSS

NOT SOLD SEPARAT

Order: 3145376R92

1шт.

24

3136521R11

PIPE FITTING

SCREW hollow

1шт.

25

3136522R1

PIPE FITTING

pressure

1шт.

26

3134770R1

PIN

GUIDE spring "0" = 4.4 mm (-xxx)

1шт.

26

3223961R1

CLEVIS PIN

GUIDE spring "0" = 8.5 mm (xxx-)

1шт.

27

3058422R1

NUT

CAP screw

1шт.

28

211-1009

BALL

steel

1шт.

29

1964123C1

SEALING RING,M23 x 31 x 2

1шт.

30

3057892R93

FILTER

1шт.

31

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

hollow

3шт.

32

713710R2

SEALING RING,M12 x 15.5 x 1.5

10шт.

33

3058076R91

PIPE

pressure

1шт.

34

3058049R91

TUBE

PIPE cooling

1шт.

35

3057889R1

SCREW

BOLT

1шт.

36

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

37

3134769R1

PLUG

RETAINER, O-ring "0" = 14 mm (-xxx)

1шт.

37

3223962R1

RETAINER

O-ring "0" = 18.5 mm (xxx-)

1шт.

38

3058131R2

O-RING

1шт.

39

3058007R1

RING

CIRCLIP (-xxx)

1шт.

39

3221891R1

RING

snap (xxx-)

1шт.

40

3145376R92

VALVE

control, with: 15, 23, 26, 27, 35-40, 42-55, 62

1шт.

40

3145376R92

VALVE

control, with piston and spool

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

41

710673R2

SEALING WASHER,8mm ID x 11.5mm OD x 1mm Thk

RING packing

2шт.

42

211-1008

BALL,1/4" Dia

1шт.

43

3057891R1

SET SCREW

1шт.

44

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing

2шт.

45

3058420R1

FILTER SCREEN

oil

1шт.

46

3058418R91

VALVE

throttle, with: 45, 47, 48, 62

1шт.

47

NSS

NOT SOLD SEPARAT

Order: 3145378R92

1шт.

48

3058130R1

O-RING

1шт.

49

3057875R1

CUP

spring retainer, upper

1шт.

50

3145379R1

SPRING

pressure

1шт.

51

3057876R1

CUP

spring retainer, lower

1шт.

52

3058189R1

RING

snap

1шт.

53

3057878R2

STOP

BOLT

1шт.

54

3145377R1

SPRING

pressure

1шт.

55

3058188R1

PLUG

1шт.

56

3057867R3

GEAR

driving, 17 teeth

1шт.

57

NSS

NOT SOLD SEPARAT

Order: 3225275R91

1шт.

58

933119R1

WASHER,Tab, M8.4 ID x 22 OD x .75 Thk

SHEET

8шт.

For hydraulic pump 3057857R98

1шт.

59

3225275R91

PUMP

hydraulic, 3057857R98

1шт.

413-530

BOLT,Hex, 5/16" - 18 x 1-7/8", Gr 5

BOLT, 5/16" x 44 mm

4шт.

425-105

NUT,5/16"-18, G5

4шт.

60-61

NSS

NOT SOLD SEPARAT

Order: 3225275R91

1шт.

62

825-1406

NUT,M6, Cl 8

1шт.

63

3059296R1

SPLINE

KEY

1шт.

For hydraulic pump 3057857R98

1шт.

64

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

65

NSS

NOT SOLD SEPARAT

Order: 3225275R91

1шт.

66

Q131

WASHER

1шт.

For hydraulic pump 3057857R98

1шт.

67

933073R1

SNAP RING,M12, Ext

CIRCLIP

2шт.

68

NSS

NOT SOLD SEPARAT

Order: 3225275R91

1шт.

69

3134137R2

PLUG

VALVE, safety

1шт.

For hydraulic pump 3057857R98

1шт.

70

3058098R2

SPRING

free length 44-46 mm

1шт.

For hydraulic pump 3057857R98

1шт.

70

3229566R1

SPRING

free length 41 mm

1шт.

For hydraulic pump 3225275R91

1шт.

71

446143

WASHER

adjusting 9.5 x 1.0 mm

1шт.

For hydraulic pump 3057857R98

1шт.

71

3229568R1

WASHER

adjusting 6.5 x 0.5 mm

1шт.

For hydraulic pump 3225275R91

1шт.

72

3058179R2

SHIM

0.3 mm

1шт.

72

3058180R2

SHIM

M 0.6 mm

1шт.

73

3058195R1

PLATE, LOCKING

SHEET

1шт.

74

3057870R2

SCREW

BOLT

2шт.

75

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

hollow M12 x 24 mm

1шт.

For hydraulic pump 3057857R98

1шт.

75

3229567R1

SCREW

hollow M12 x 24 mm

1шт.

For hydraulic pump 3225275R91

1шт.
