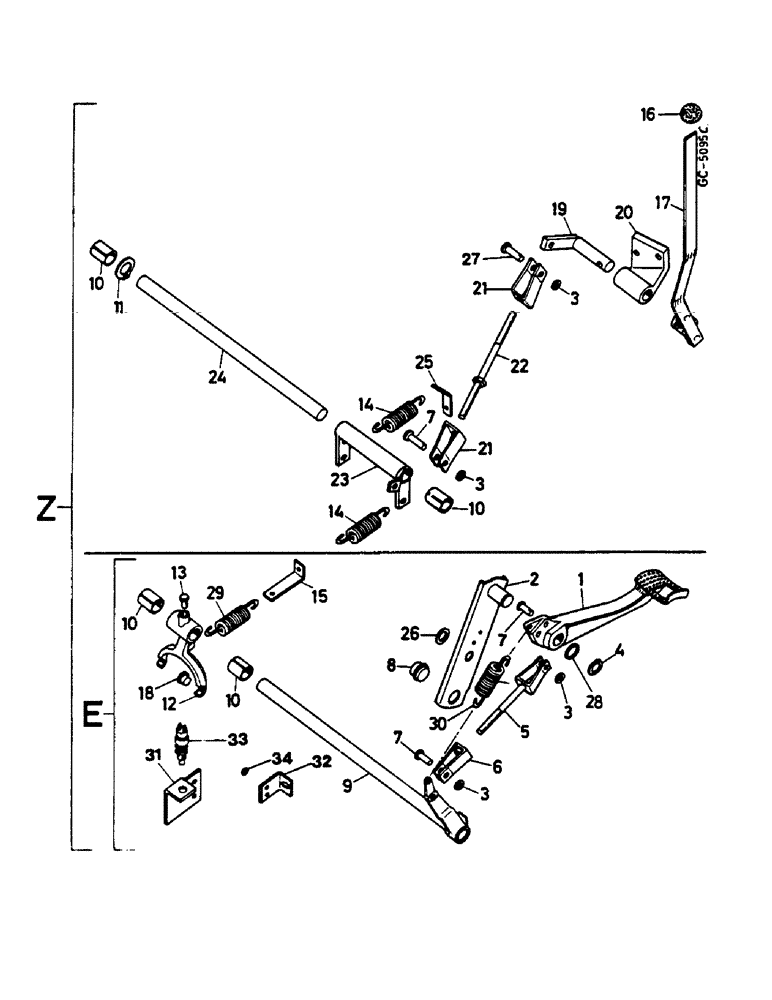

Запчасти Case IH 744 (1E10) - CLUTCH RELEASE PARTS (04) - Drive Train

1

3221758R1

PEDAL

clutch (A 11319-) G

1шт.

1

3147343R1

PEDAL

clutch (-A 11318) G

1шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

1шт.

2

3221174R91

SUPPORT

pedal (A 11319-) G

1шт.

2

3147338R91

SUPPORT

pedal (-A 11318) G

1шт.

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

92-11062

LOCK WASHER,5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

10.5 x 22 x 1.5 mm

2шт.

3

95-51041

WASHER,3/8" x 7/8" x .083"

10.3 x 18.7 x 1.6 mm, double clutch 844/844s

2шт.

4

933128R1

SNAP RING,M25, Ext

CIRCLIP

1шт.

5

3230897R1

ROD

adjustable (A 11319-) G

1шт.

5

3221759R91

ROD

adjustable (-A 11318) G

1шт.

114494

NUT,Jam, 3/8"-24, G5

(-A 11318) G

1шт.

129-123

NUT,3/8"-24, G5

(-A 11318) G

1шт.

6

3221760R91

ADJUSTABLE CLEVIS

(A 11319-) G

1шт.

6

3058293R1

CLEVIS

(-A 11318) G

1шт.

7

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

Single clutch 644/744/844/844S

2шт.

7

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

Double clutch 844/844S

3шт.

7

138084

SPLIT PIN/SAFETY PIN

headed (Finnland-Version), double clutch 844/844S

1шт.

32-612

COTTER PIN,3/32" x 3/4"

(2 x 20 mm)

1шт.

8

3147341R1

PIN

1шт.

9

3221755R91

SHAFT

clutch release (A 11319-), single clutch 644/744/844/844S

1шт.

On units with cab 2000

1шт.

9

3147308R91

SHAFT

clutch release (-A 11318) G

1шт.

718031R1

SET SCREW

BOLT, 5/16" x 45 mm

1шт.

425-105

NUT,5/16"-18, G5

1шт.

10

3221757R1

BUSHING

single clutch 644/744/844/844S

2шт.

3221757R1

BUSHING

double clutch 844/844S

4шт.

11

3057131R1

RING, SNAP

RING SNAP CIRCLIP, double clutch 844/844S

1шт.

12

3057129R1

FORK

YOKE clutch, release 644/744, single clutch 644/744/844/844S

1шт.

12

3145729R1

FORK

YOKE clutch, release 844/844S

1шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

14

3058348R1

SPRING

1шт.

15

3057130R4

SUPPORT

ANGLE return, spring 644/744, single clutch 644/744/844/844S

1шт.

15

3145774R1

SUPPORT

SPARE PART ANGLE return, spring 844/844S, single clutch 644/744/844/844S

1шт.

15

3145734R2

ANGLE

return spring 844/844S, double clutch 844/844S

1шт.

16

3134919R2

KNOB

double clutch 844/844S

1шт.

17

3145749R92

LEVER

double clutch 844/844S

1шт.

18

3147471R1

ROLLER

thrust 844/844S

2шт.

19

3145752R91

SHAFT

PIN double clutch 844/844S

1шт.

838-5840

LOCK PIN,M8 x 40, Slotted

Double clutch 844/844S

1шт.

20

3145755R91

SUPPORT

double clutch 844/844S

1шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

double clutch 844/844S

1шт.

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

double clutch 844/844S

2шт.

425-106

NUT,3/8"-16, Cl 5

Double clutch 844/844S

2шт.

21

3058293R1

CLEVIS

double clutch 844/844S

2шт.

425-106

NUT,3/8"-16, Cl 5

Double clutch 844/844S

1шт.

105606

NUT

3/8", double clutch 844/844S

1шт.

22

3145757R91

ROD

adjusting, double clutch 844/844S

1шт.

12790R1

NUT

3/8", double clutch 844/844S

1шт.

125-10003

NUT,3/8"-16, G5, LH

double clutch 844/844S

1шт.

23

3147373R91

FORK

CLEVIS release, double clutch 844/844S

1шт.

24

3147372R1

SHAFT

SPARE PART clutch release, double clutch 844/844S

1шт.

25

3217512R1

ANGLE

return spring, double clutch 844/844S

1шт.

26

3147342R1

WASHER

SPARE PART

1шт.

27

3217319R1

PIN

headed, double clutch 844/844S

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

double clutch 844/844S

1шт.

28

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

1-1/32 x 1-1/2 x 1/32

1шт.

29

3221761R1

SPRING

double clutch 844/844S

1шт.

30

3221762R2

SPRING

return, double clutch 844/844S

1шт.

31

3229770R1

SUPPORT

ANGLE (xxx-)

1шт.

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

2шт.

32

3223967R1

ANGLE

(-xxx)

1шт.

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

2шт.

832-10406

NUT,M6 x 1, Cl 8

2шт.

33

3401400R1

LIGHT SWITCH

start safety, 644 = (010935-) C, 744 = (009507-) C, 844 = (005400-) C, 844S = (011574-) C

1шт.

34

934948R1

WASHER,M6

2шт.
