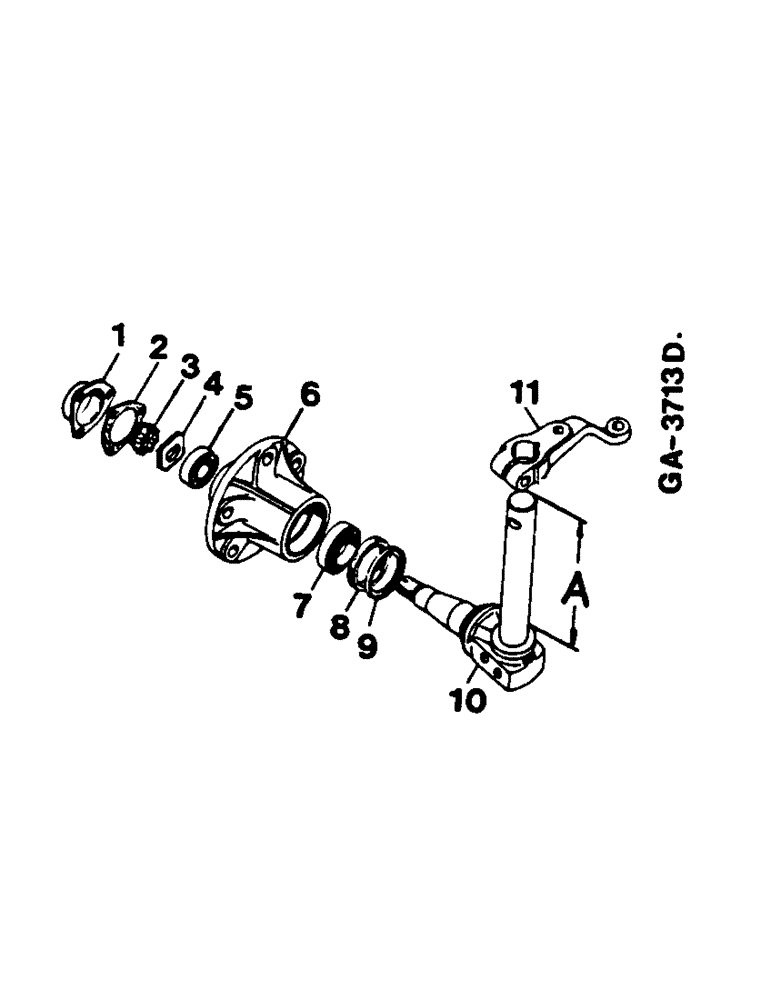

Запчасти Case IH 744 (3H05) - STEERING KNUCKLE Suspension

A = 247 mm for 18" Axle, A = 297 mm 20 ", A = 377 mm 24"

1шт.

1

713238R1

CAP

2шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

6шт.

492-11031

LOCK WASHER,5/16"

6шт.

2

49116D

GASKET,0.79mm Thk

2шт.

3

3059772R1

THRUST WASHER

CAP lock

2шт.

4

3057062R2

WASHER,22.73mm ID x 40mm OD x 4mm Thk

PLATE

2шт.

5

3229813R91

TAPERED BEARING

outer, 62 x 31.75 x 18.16 mm

2шт.

5

3142103R91

TAPERED BEARING

outer, 59 x 31.75 x 15.87 mm

2шт.

6

3131012R3

HUB

used with bearing: 3142103R91

2шт.

6

3229812R1

HUB

used with bearing: 3229813R91

2шт.

3137538R2

FLANGE BOLT

10шт.

7

671074R91

CRANKSHAFT BEARING

inner

2шт.

8

3131013R1

SEALING RING,69.5mm ID x 85mm OD x 7mm Thk

2шт.

9

3131014R1

RING,74mm ID x 85mm OD x 1mm Thk

clamping

2шт.

10

3405599R1

STEERING KNUCKLE

LH A = 247 mm, 644 (-014221) C, 744 (-013698) C, 844 (-006275) C, 844S (-016724) C

1шт.

Version with power steering

1шт.

10

3405601R1

STEERING KNUCKLE

LH A = 247 mm, 644 (014222-) C, 744 (013699-) C, 844 (006276-) C, 844S (016725-) C

1шт.

Version with power steering

1шт.

10

3405613R1

STEERING KNUCKLE

LH A = 297 mm, 644 (-014221) C, 744 (-013698) C, 844 (-006275) C, 844S (-016724) C

1шт.

10

3405615R1

STEERING KNUCKLE

LH A = 297 mm, 644 (014222-) C, 744 (013699-) C, 844 (006276-) C, 844S (016725-) C

1шт.

10

3405617R1

STEERING KNUCKLE

LH A = 377 mm, 644 (-014221) C, 744 (-013698) C, 844 (-006275) C, 844S (-016724) C

1шт.

10

3405619R1

STEERING KNUCKLE

LH A = 377 mm, 644 (014222-) C, 744 (013699-) C, 844 (006276-) C, 844S (016725-) C

1шт.

10

3405600R1

STEERING KNUCKLE

RH A = 247 mm, 644 (-014221) C, 744 (-013698) C, 844 (-006275) C, 844S (-016724) C

1шт.

Version with power steering

1шт.

10

3405602R1

STEERING KNUCKLE

RH A = 247 mm, 644 (014222-) C, 744 (013699-) C, 844 (006276-) C, 844S (016725-) C

1шт.

Version with power steering

1шт.

10

3405614R1

STEERING KNUCKLE

RH A = 297 mm, 644 (-014221) C, 744 (-013698) C, 844 (-006275) C, 844S (-016724) C

1шт.

10

3405616R1

STEERING KNUCKLE

RH A = 297 mm, 644 (014222-) C, 744 (013699-) C, 844 (006276-) C, 844S (016725-) C

1шт.

10

3405618R1

STEERING KNUCKLE

RH A = 377 mm, 644 (-014221) C, 744 (-013698) C, 844 (-006275) C, 844S (-016724) C

1шт.

10

3405620R1

STEERING KNUCKLE

RH A = 377 mm, 644 (014222-) C, 744 (013699-) C, 844 (006276-) C, 844S (016725-) C

1шт.

425-1514

JAM NUT,Jam, 7/8"-14, G5

2шт.

137218

COTTER PIN,5/32" x 1 1/4"

1шт.

11

NSS

NOT SOLD SEPARAT

ARM tie rod, see Figures: 3H8, 3H11

1шт.
