(3H01) - FRONT AXLE

Запчасти Case IH 744 (3H01) - FRONT AXLE Suspension

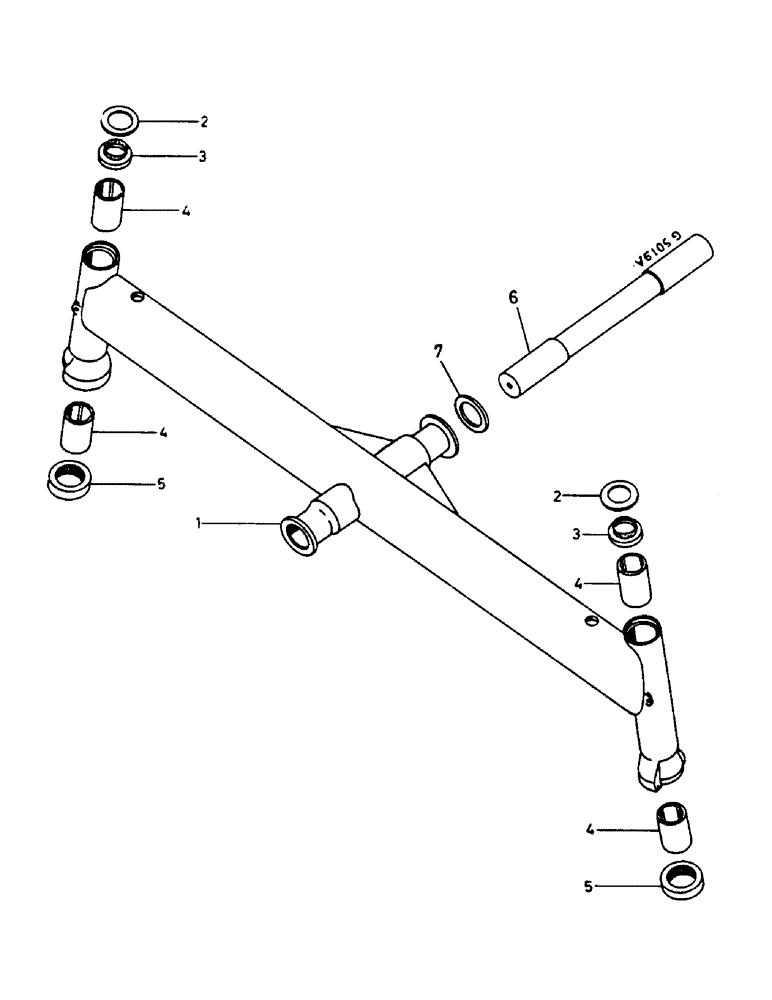

Схема запчастей Case IH 744 - (3H01) - FRONT AXLE Suspension
4
5
1
2
5
4
6
3
7
4
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3405588R91

AXLE

front, with: 3 - 4

1шт.

1

3146353R92

AXLE, FRONT

version with power steering, 644 (-010067) C, 744 (-008669) C, 844 (-005275) C, 844S (-010500) C

1шт.

1

3224279R92

AXLE, FRONT

version with power steering, 644 (010068-014221) C, 744 (008670-013698) C, 844 (005276-006275) C, 844S (010501-016724) C

1шт.

1

3405589R91

AXLE

version with power steering, 644 (014222-) C, 744 (013699-) C, 844 (006276-) C, 844S (016725-) C

1шт.

739157R91

LUBE NIPPLE

LUBRICATOR

2шт.

2

3059771R1

SHIM

0.20 mm

1шт.

2

3217593R1

SHIM

1.00 mm

1шт.

2

3217594R1

SHIM,40mm ID x 60mm OD x 1.5mm Thk

1.50 mm

1шт.

3

3131033R1

SEAL,39mm ID x 53mm OD x 8mm Thk

SCRAPER

2шт.

4

3057051R1

BUSHING

4шт.

5

3057058R91

BEARING ASSY

thrust

2шт.

6

3140082R1

PIVOT

PIVOT front, axle

1шт.

3059875R6

SCREW,5/8" - 11 x 40mm

5/8" x 40 mm

1шт.

329-1410

JAM NUT,Jam, 5/8"-11, G8

1шт.

7

3057042R1

SHIM,40.05mm ID x 59.94mm OD x 0.55mm Thk

1шт.
