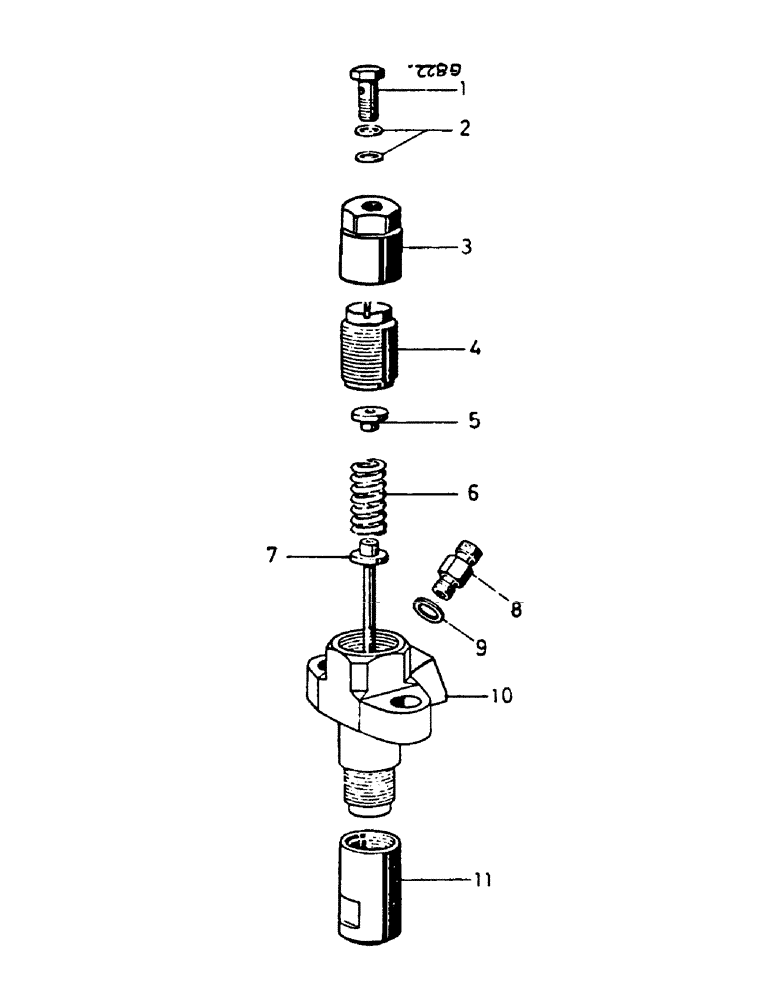

Запчасти Case IH 744 (3C03) - INJECTION NOZZLE HOLDER, 644 (-064068)E, 744 (-549322, 549324-489)E, 844 (-016264)E, 884S(-00883)E Power

1

3055298R92

NOZZLE HOLDER

injection , Includes: Ref. 1 - 11

1шт.

1

3132999R1

HOLLOW SCREW

hollow

1шт.

2

710673R2

SEALING WASHER,8mm ID x 11.5mm OD x 1mm Thk

RING packing

2шт.

3

3056943R1

CROWN NUT

nozzle cap

1шт.

4

3132998R1

SCREW

adjusting

1шт.

5

787049R1

CUP

spring

1шт.

6

759844R1

SPRING

1шт.

7

3056939R1

SPINDLE

PIN thrust

1шт.

8

3056940R91

UNION

connector, with filter bar

1шт.

9

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING packing

1шт.

10

NSS

NOT SOLD SEPARAT

Order: 3055298R92

1шт.

11

3133042R1

NOZZLE HOLDER

NUT cap

1шт.
