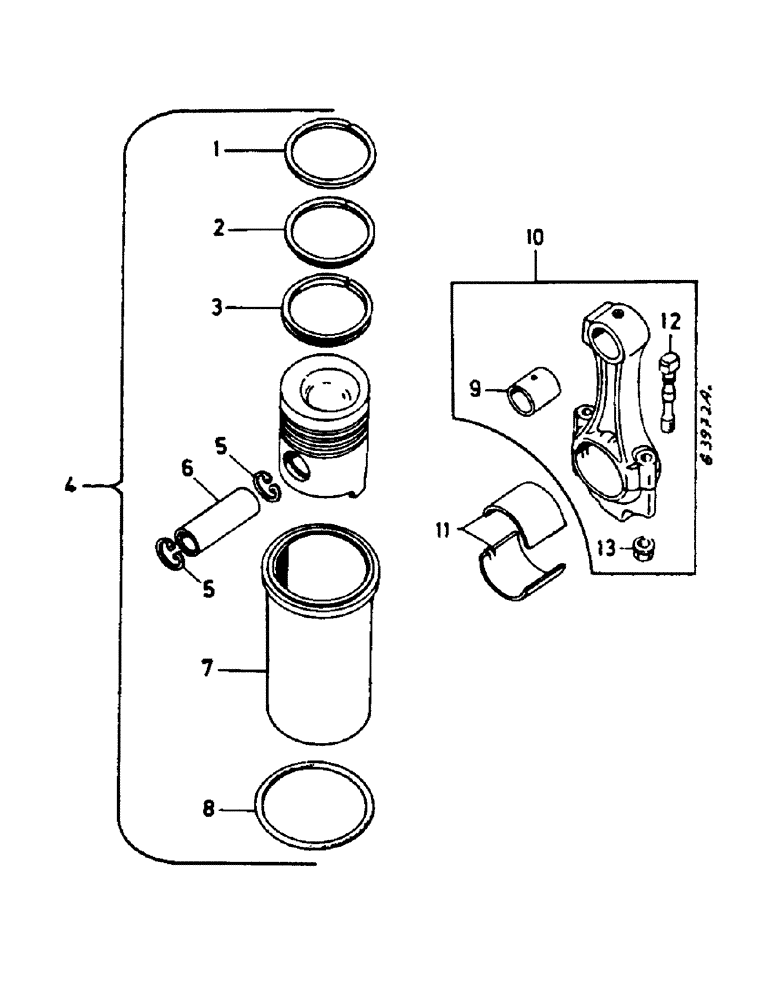

Запчасти Case IH 744 (3B01) - PISTON AND CYLINDER SLEEVE Power

1

3218416R92

PISTON RING SET

compression, set of 1 piston (644), Includes: Ref. 1-3

4шт.

1

3218416R92

PISTON RING SET

compression, set of 1 piston chromium plated (644), Includes: Ref. 1-3

4шт.

1

3218416R92

PISTON RING SET

compression, set of 1 piston (744), (-xxx), Includes: Ref. 1-3

4шт.

1

3218416R92

PISTON RING SET

compression, set of 1 piston chromium plated (744), (-xxx), Includes: Ref. 1-3

4шт.

1

3139594R91

PISTON RING

compression, set of 1 piston chromium plated (744), (xxx-), Includes: Ref. 1-3

4шт.

1

3218669R91

PISTON RING SET

compression, set of 1 piston chromium plated (844), Includes: Ref. 1-3

4шт.

1

3144977R91

PISTON RING SET

compression, set of 1 piston chromium plated (844S), (xxx-), Includes: Ref. 1-3

4шт.

1

3218669R91

PISTON RING SET

compression, set of 1 piston chromium plated (844S), (-xxx), Includes: Ref. 1-3

4шт.

4

3218758R95

SLEEVE ASSY

PISTON with ring set, 3218416R91 (644)

4шт.

4

3139591R96

PISTON & RINGS KIT

with ring set, 3139594R91 (744), (xxx-)

4шт.

4

3218759R95

SLEEVE ASSY

PISTON with ring set, 3218416R91 (744), (-xxx)

4шт.

4

3218668R94

SLEEVE ASSY

PISTON with ring set, 3218669R91 (844)

4шт.

4

3218461R95

SLEEVE ASSY

PISTON with ring set, 3144977R91 (844S), (xxx-)

4шт.

4

3218461R95

SLEEVE ASSY

PISTON, with ring set, 3218669R91 (844S), (-xxx)

4шт.

5

933327R1

SNAP RING,M36, Int

CIRCLIP

8шт.

6

3055217R2

PISTON PIN

piston

4шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE, cylinder

4шт.

8

3228344R1

SEALING RING,5mm Thk x 110mm ID

3055021R2

4шт.

9

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin

4шт.

10

1967029C1

CONNECTING ROD

644

4шт.

10

1967032C1

CONNECTING ROD

744/844

4шт.

10

1967048C1

ROD, CONNECTING

844S

4шт.

11

3055351R91

BEARING ASSY

connecting rod, standard size, 644/744/844

4шт.

11

3144688R92

BEARING,CON.ROD

BEARING, CON. ROD standard size, 844S

4шт.

11

3056834R11

BEARING ASSY

standard size .01" undersize, 644/744/844

4шт.

11

3144876R92

SET

standard size .01" undersize, 844S

4шт.

11

3056879R11

BEARING ASSY

standard size .02" undersize, 644/744/844

4шт.

11

3144881R92

BEARING,CON.ROD

BEARING, CON. ROD standard size .02" undersize, 844S

4шт.

11

3055781R11

BEARING ASSY

connecting rod, standard size .03" undersize, 644/744/844

4шт.

11

3144886R92

BEARING,CON.ROD

BEARING, CON. ROD standard size .03" undersize, 844S

4шт.

12-13

3055033R11

BOLT

Connecting rod, with nut, Includes Ref 13

8шт.
