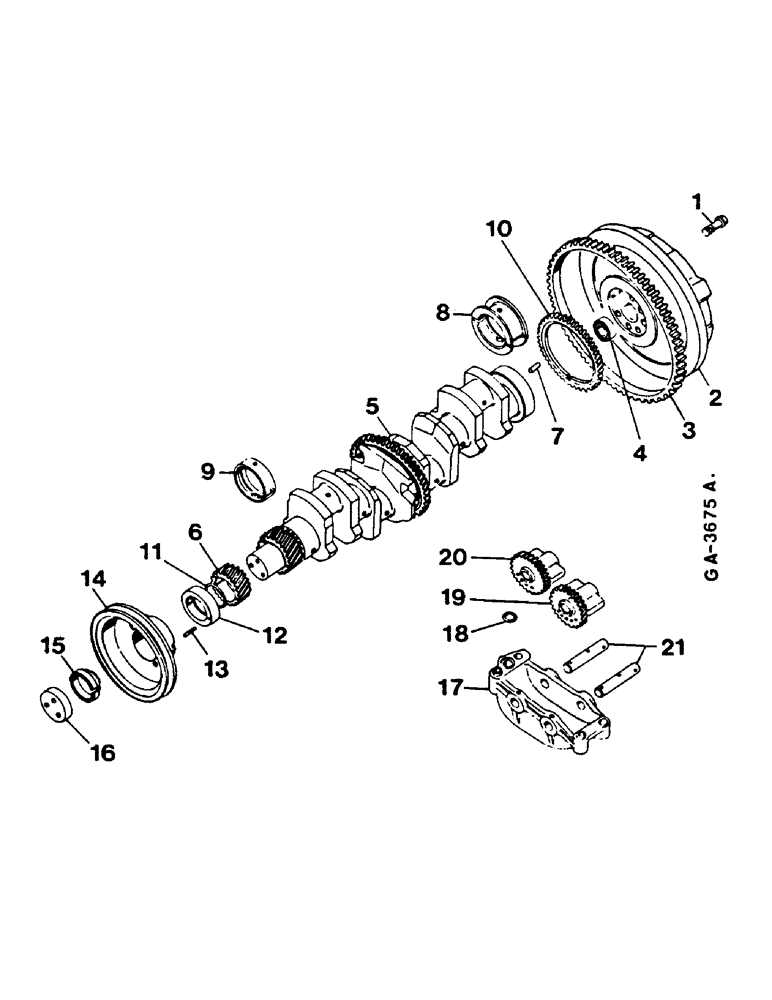

Запчасти Case IH 744 (2J23) - CRANKSHAFT Power

1

3055156R2

BOLT,1/2" - 20 x 33.5mm

flywheel

7шт.

2

3055080R11

FLYWHEEL

(single clutch) 644/744, Includes: Ref. 2 - 4

1шт.

2

3144653R91

FLYWHEEL

(single clutch) 844/844S, Includes: Ref. 2 - 4

1шт.

2

3138577R21

FLYWHEEL

(double clutch) 644/744, Includes: Ref. 2 - 4

1шт.

2

3144651R92

FLYWHEEL

(double clutch) 844/844S, Includes: Ref. 2 - 4

1шт.

3

3055133R1

CROWN WHEEL

GEAR ring, 644/744

1шт.

3

3144607R1

CROWN WHEEL

GEAR ring, 844/844S

1шт.

4

3218393R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

ball, Order: 3138598R91

1шт.

5

3132968R93

CRANKSHAFT BEARING

with connecting rod bearings, 644, Includes: Ref. 5 - 10

1шт.

5

3144626R92

CRANKSHAFT BEARING

with connecting rod bearings, 744/844, Includes: Ref. 5 - 10

1шт.

5

3144872R92

CRANKSHAFT

with connecting rod bearings, 844S, Includes: Ref. 5 - 10

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

2шт.

6

3055028R1

PINION

crankshaft, 33 teeth

1шт.

7

37-1616

DOWEL,3/8" x 1"

1шт.

8

3055129R21

CRANKSHAFT BEARING

main, standard size

1шт.

8

3056820R11

BEARING ASSY

main, standard size .01" undersize

1шт.

8

3056875R11

BEARING ASSY

main, standard size .02" undersize

1шт.

8

3055776R11

BEARING ASSY

main, standard size .03" undersize

1шт.

9

3055130R21

CRANKSHAFT BEARING

BEARING main, standard size

4шт.

9

3056832R21

BEARING ASSY

main, standard size .01" undersize

4шт.

9

3056877R21

BEARING ASSY

main, standard size .02" undersize

4шт.

9

3055779R21

BEARING ASSY

main, standard size .03" undersize

4шт.

10

3055145R1

GEAR

balancer drive., 644 (-xxx)

1шт.

10

3136237R1

PINION

GEAR balancer drive, 644 (xxx-)

1шт.

10

3136237R1

PINION

GEAR balancer drive, 744/844

1шт.

10

3144700R1

GEAR

balancer drive, 844S

1шт.

11

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

12-13

3228133R93

SEAL KIT

RING spacer, with O-ring and oil seal, 3136724R94, Includes: Ref. 13

1шт.

14

3138834R1

PULLEY

1шт.

15

3138874R1

BEARING WASHER

RING pressure

1шт.

16

3055154R1

WASHER

pressure

1шт.

870325R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

17

3055504R41

HOUSING

balancer weight, with bushings, 644 (-077141) E

1шт.

17

3132875R41

HOUSING

balancer weight, with bushings, 644 (077142-) E

1шт.

17

3132875R41

HOUSING

balancer weight, with bushings, 744/844

1шт.

17

3144702R91

HOUSING

balancer weight, with bushings, 844S

1шт.

3055174R1

BUSHING

2шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

413-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

1шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

M35730

SPLIT PIN/SAFETY PIN

roll, 4 x 20 mm

2шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

2шт.

3218543R1

LOCK WASHER

4шт.

18

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

19

3055505R11

COUNTERWEIGHT

balancer drive 644 (-077141) E

1шт.

19

3132896R11

SPARE PART WEIGHT balancer drive, 644, (077142-) E

1шт.

19

3132876R11

WEIGHT

balancer drive, 744/844

1шт.

19

3144704R91

WEIGHT

balancer drive, 844S

1шт.

20

305502R11

WEIGHT balancer idler, 644 (-077141) E

1шт.

20

3132897R11

SPARE PART WEIGHT balancer idler, 644 (077142-) E

1шт.

20

3132877R11

WEIGHT

balancer idler, 744/844

1шт.

20

3144706R91

WEIGHT

balancer idler, 844S

1шт.

21

3132878R11

PIN,23mm OD x 93mm L

SHAFT balancer weight, 3055503R21

2шт.
