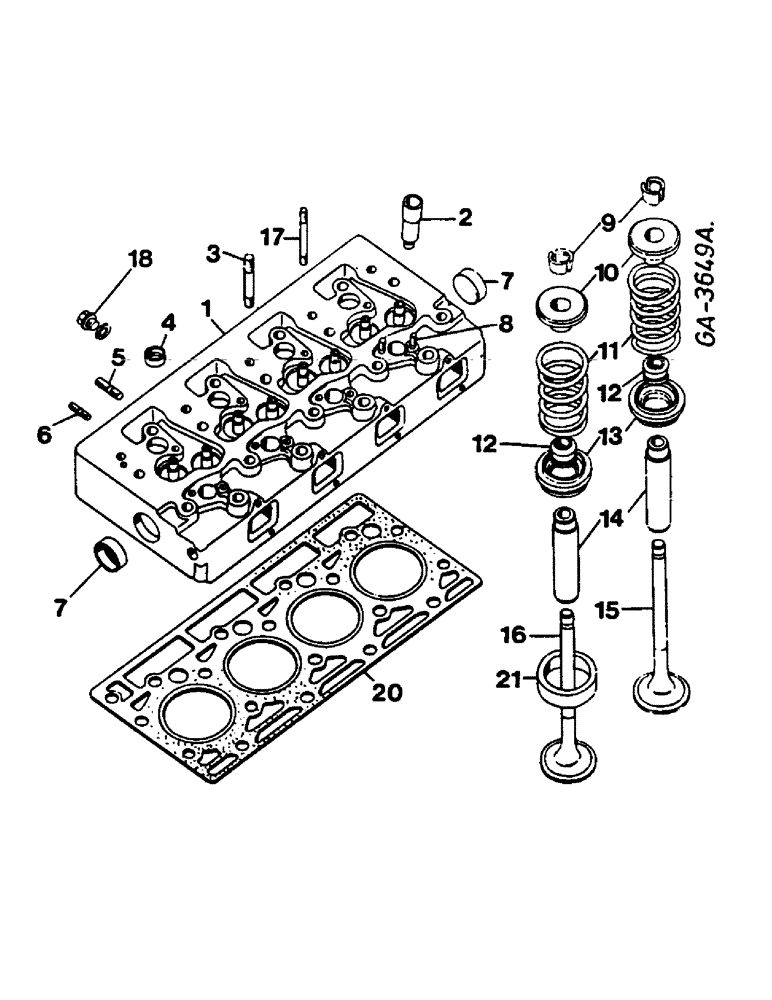

Запчасти Case IH 744 (2J13) - CYLINDER HEAD Power

1

3055367R97

HEAD (CYLINDER)

with: 2 - 7 and 14

1шт.

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

9/16" x 123 mm

8шт.

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

9/16" x 146 mm

10шт.

2

3055344R1

SLEEVE

INSERT nozzle holder

4шт.

3

3055220R1

STUD,1/2" - 20 x 3.18"

rocker shaft bracket

5шт.

4

933573R1

PLUG,M32, Tapered

"U" 32 mm "0"

4шт.

5

3228189R1

STUD

exhaust pipe

8шт.

5

3228188R1

STUD

exhaust pipe for, 690171C1

2шт.

6

3055221R1

STUD

water collecting pipe

8шт.

7

934003R1

PLUG,M52, Conical

"U"

2шт.

8

3055412R1

STUD

nozzle holder 644 = (-964068) E 744 = (-549322, 549324-489) E 844 = (-016264) E 844S = (-008883)E

8шт.

9

3055057R91

ROCKER ARM COTTER

LOCK valve, spring

16шт.

10

3055058R2

SPRING CUP

valve, retainer

8шт.

11

3055060R1

SPRING

valve

8шт.

12

3218399R91

GASKET KIT

SEAL valve stem, set of 6 and jumper

1шт.

13

3055059R91

CAP

ROTO

8шт.

14

129322A1

GUIDE

valve stem

8шт.

15

3055055R2

OVERSIZE INLET VALVE

intake

4шт.

16

3055056R2

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

17

3055223R1

STUD

valve cover

4шт.

18

934259R1

PLUG,Hex, M10 x 1

1шт.

19

718743R1

SEALING RING,M10 x 16 x 1

Packing

1шт.

20

3138959R3

GASKET

1шт.

21

3132362R1

VALVE SEAT

exhaust valve seat, .006" oversize

1шт.

21

3132361R1

INSERT

INSERT exhaust valve seat, 0.15" oversize

1шт.

3136799R99

GASKET KIT

PACKAGE cylinder head

1шт.
