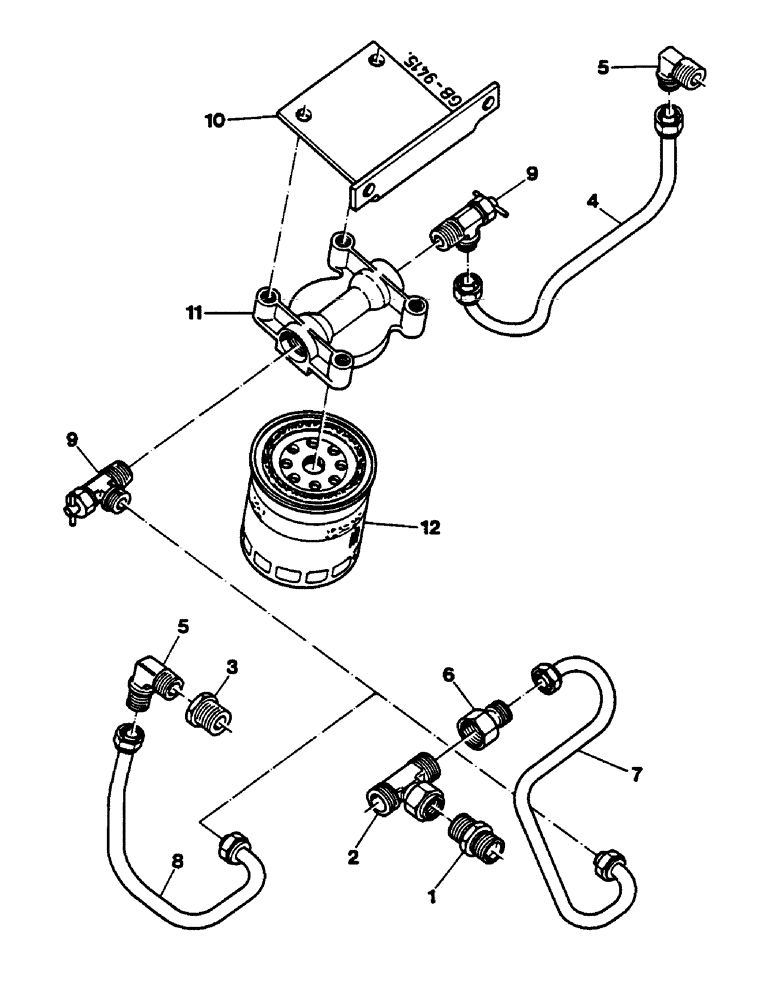

Запчасти Case IH 744 (1D11) - COOLANT CONDITIONER 744/844S Cooling

1

3230134R2

ADAPTER

UNION

1шт.

2

3142785R1

TEE

1шт.

3

444034

REDUCER,1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

Version without heater

1шт.

4

3228212R93

PIPE

TUBE

1шт.

5

606618C1

ELBOW UNION

Union Elbow

1шт.

6

3233208R1

UNION

1шт.

7

3233341R91

TUBE

1шт.

8

3233340R92

TUBE

1шт.

Version without heater

1шт.

9

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

TAP water

2шт.

10

3228211R1

SUPPORT

BRACKET

1шт.

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

11

A152821

HEAD

COVER

1шт.

12

A77544

FILTER

1шт.
