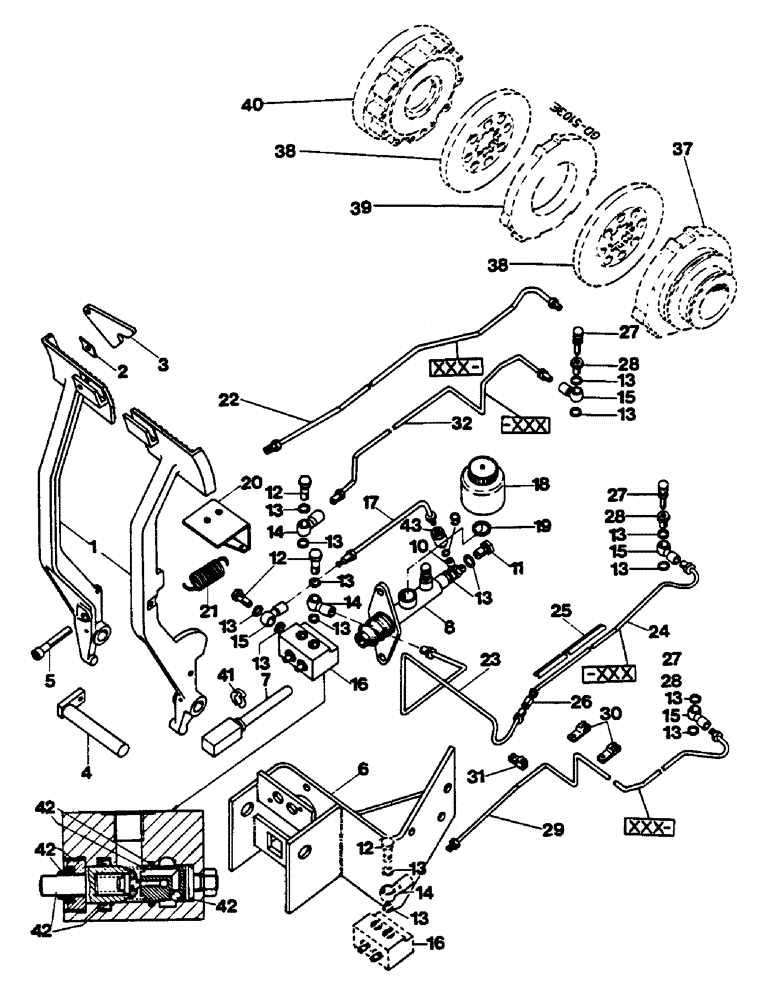

Запчасти Case IH 744 (1C16) - BRAKE LINES , 744/844/844S, IF SO EQUIPPED (5.1) - BRAKES

1

3145553R91

PEDAL

SPARE PART brake, RH

1шт.

1

3145552R1

PEDAL

SPARE PART brake, LH

1шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

2

51293D0

SPRING, LEAF

pedal latch

1шт.

3

43751DB

LATCH, PEDALS

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

roll, 6 x 25 mm

1шт.

4

3145528R91

PIVOT

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

5

102462

SPARE PART SCREW set

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

6

3226268R91

SUPPORT

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

7

3145769R92

ROD

1шт.

8

NSS

NOT SOLD SEPARAT

CYLINDER master, see Figure: 1C17

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

9

3141650R1

SEALING RING,12mm ID x 17mm OD x 1.5mm Thk

packing (xxx-)

1шт.

10

3145566R1

UNION

1шт.

11

897578H1

PIPE FITTING

SCREW hollow

1шт.

12

3223095R1

SCREW

hollow

3шт.

13

162000080706

SEAL

packing 14 x 18 mm

1шт.

13

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

14

3141646R1

PIPE FITTING

UNION

2шт.

15

897549H1

PIPE FITTING

UNION

3шт.

16

3145555R96

VALVE

steering brake

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

17

3145568R1

TUBE,190, 93 mm Length

(-xxx)

1шт.

17

3401924R1

PIPE,182, 55 mm Length

TUBE (xxx-), used with 3232260R1

1шт.

18

3146062R92

RESERVOIR,0.23L

CONTAINER, with screen and cap

1шт.

3141805R1

FILTER SCREEN

1шт.

3223647R1

CAP

1шт.

19

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.

20

3145722R1

BRACKET

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

425-105

NUT,5/16"-18, G5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

21

3233488R1

SPRING

2шт.

22

3216176R2

BRAKE LINE

TUBE, (12863-) G

1шт.

23

3145564R1

TUBE

(-12862) G

1шт.

24

3145565R1

TUBE

(-12862) G

1шт.

25

3145840R1

CONDUIT

SPARE PART PROTECTION tube

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

26

3141144R1

UNION

(-12862) G

1шт.

27

3145569R91

BREATHER

2шт.

3224946R1

CAP

2шт.

28

3145549R2

SCREW

hollow

2шт.

29

3216175R3

BRAKE LINE

TUBE, (12863-) G

1шт.

30

3216177R1

CLAMP

(12863-) G

2шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

2шт.

31

3132770R1

COLLAR

(12863-) G

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

32

3145567R1

TUBE

(-12862) G

1шт.

37

NSS

NOT SOLD SEPARAT

DISKS brake, see Figure: 1J13, Includes: 37 - 40

4шт.

41

3223258R2

CIRCLIP

WASHER retaining, (-xxx)

1шт.

42

NSS

NOT SOLD SEPARAT

Order: 3145555R96

1шт.

43

3232260R2

VALVE

(xxx-)

1шт.
