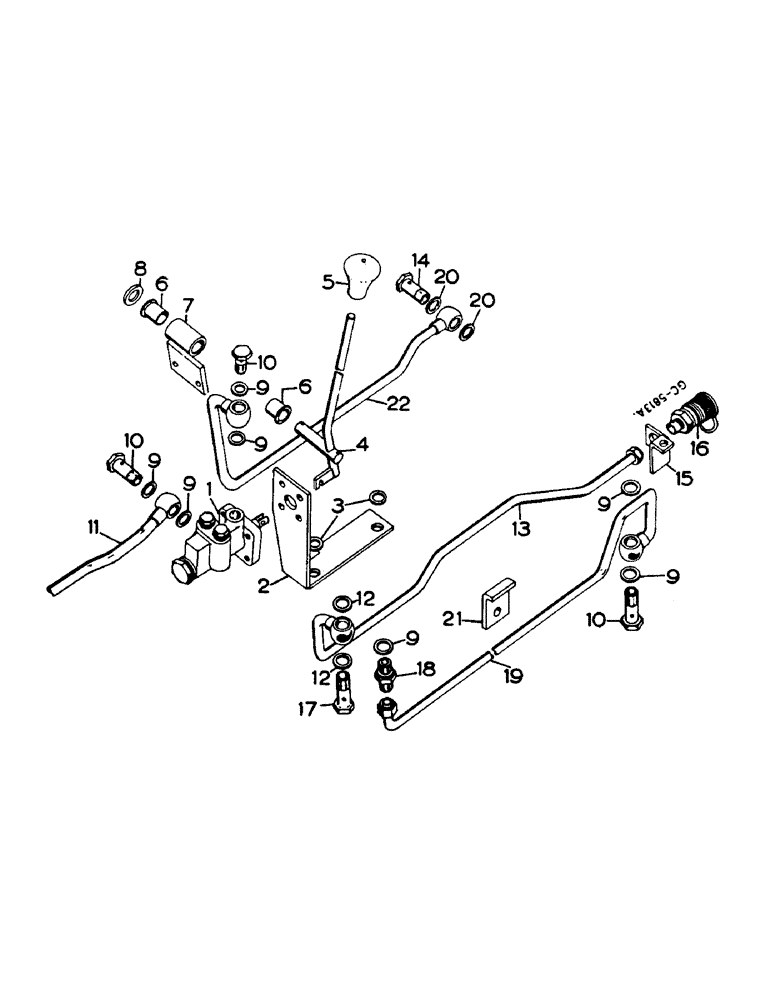

Запчасти Case IH 744 (2I19) - HYDRAULIC TRAILER BRAKE, MANUALLY OPERATED, 644/744 (07) - HYDRAULICS

1

3131456R1

VALVE

brake

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

4шт.

2

3216126R91

SUPPORT ASSY.

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

3

25709R1

WASHER

3шт.

4

3216125R1

LEVER

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

5

53717DA

BUTTON

KNOB

1шт.

6

3131461R1

BUSHING

2шт.

7

3131457R11

SUPPORT ASSY.

1шт.

8

933998R1

WASHER,M20 x 30 x 4

3137939R1

1шт.

9

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

7шт.

10

930259R1

BANJO BOLT,M18 x 1 x 42mm

hollow

3шт.

11

3216131R1

TUBE

1шт.

12

933155R1

SEALING RING,M16 x 20 x 1.5

1шт.

13

3216130R1

TUBE

1шт.

14

934544R1

SCREW hollow

1шт.

15

3145495R1

BRACKET

SUPPORT

1шт.

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

16

3131463R91

QUICK MALE COUPLING

Order: 3142332R91

1шт.

17

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

hollow

1шт.

18

3225748R1

HYD CONNECTOR,M18 x 1.5 x M22 x 1.5

1шт.

19

3216132R1

TUBE

1шт.

20

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.

21

3216134R1

CLAMP

1шт.

NLS

NO LONGER SERVICED

BOLT, 1/4" x 41 mm

1шт.

22

3216133R1

TUBE

1шт.
