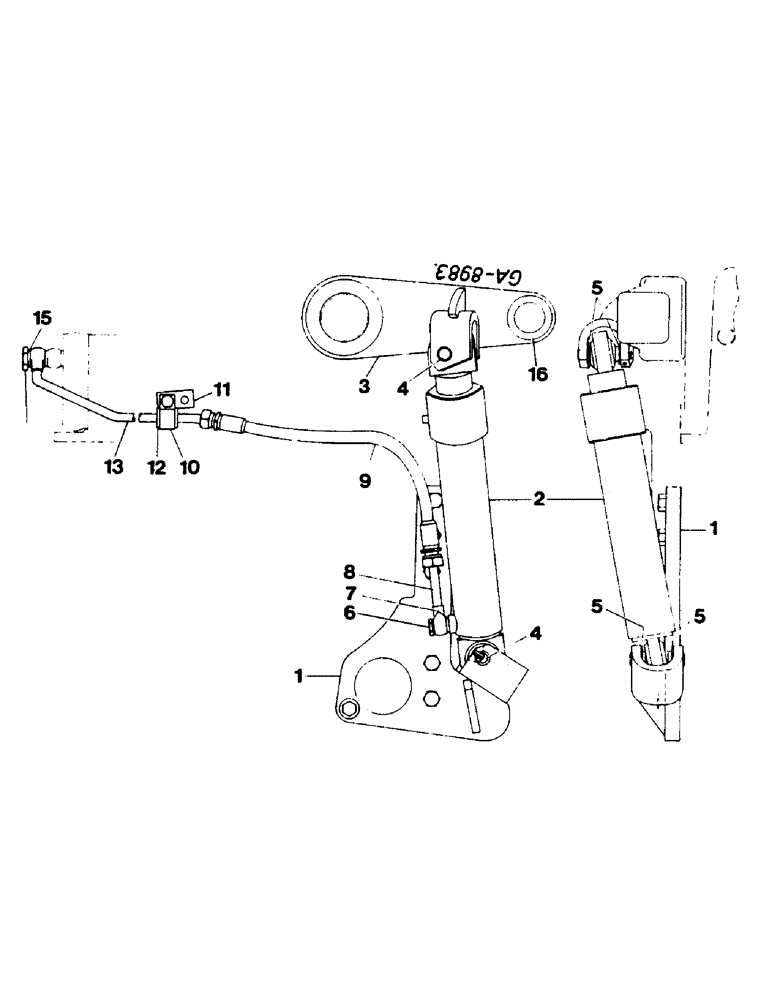

Запчасти Case IH 744 (2I07A) - AUXILIARY CYLINDER (07) - HYDRAULICS

1

3147539R91

SUPPORT

1шт.

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

5шт.

61-36228

HEX SOC SCREW,5/8"-11 x 1 3/4"

1шт.

1

3147546R91

SUPPORT

"PITON FIXE", see Figure: 2E1

1шт.

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

5шт.

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

329-1010

NUT,5/8"-11, G8

3шт.

61-36228

HEX SOC SCREW,5/8"-11 x 1 3/4"

1шт.

2

NSS

NOT SOLD SEPARAT

CLYINDER, see Figure: 2i6

1шт.

3

3147541R91

ROCKER ARM

with: 16

1шт.

4

3147039R1

PIN,19mm OD x 75mm L

2шт.

932448R1

LOCK PIN,M6 x 16, Slotted

2шт.

934830R1

LOCK PIN,M3.5 x 16, Slotted

2шт.

5

95-81024

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

20 x 38 x 3 mm

1шт.

5

495-81041

WASHER,25/32" x 1 1/2" x .060"

20 x 38 x 1.5 mm

1шт.

6

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

hollow

1шт.

7

933721R1

SEALING RING,M16 x 22 x 1.5

2шт.

8

3146593R1

PIPE,110 mm Length

TUBE

1шт.

9

3146594R1

HYDRAULIC HOSE,10.00 mm ID x 450.00 mm

1шт.

10

710492R1

CLAMP

1шт.

181082

PAWL

1шт.

95-81067

WASHER,0.34" ID x 0.56" OD x 0.06" Thk

1шт.

11

3147545R1

BAR

1шт.

12

3146596R1

GROMMET

1шт.

13

3147544R2

TUBE,355, 140 mm Length

1шт.

14

786958R1

SCREW,M18 x 1.5 x 1.5mm

hollow

1шт.

15

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

16

3217258R1

BUSHING,35mm ID x 40mm OD x 30mm L

set of two

2шт.
