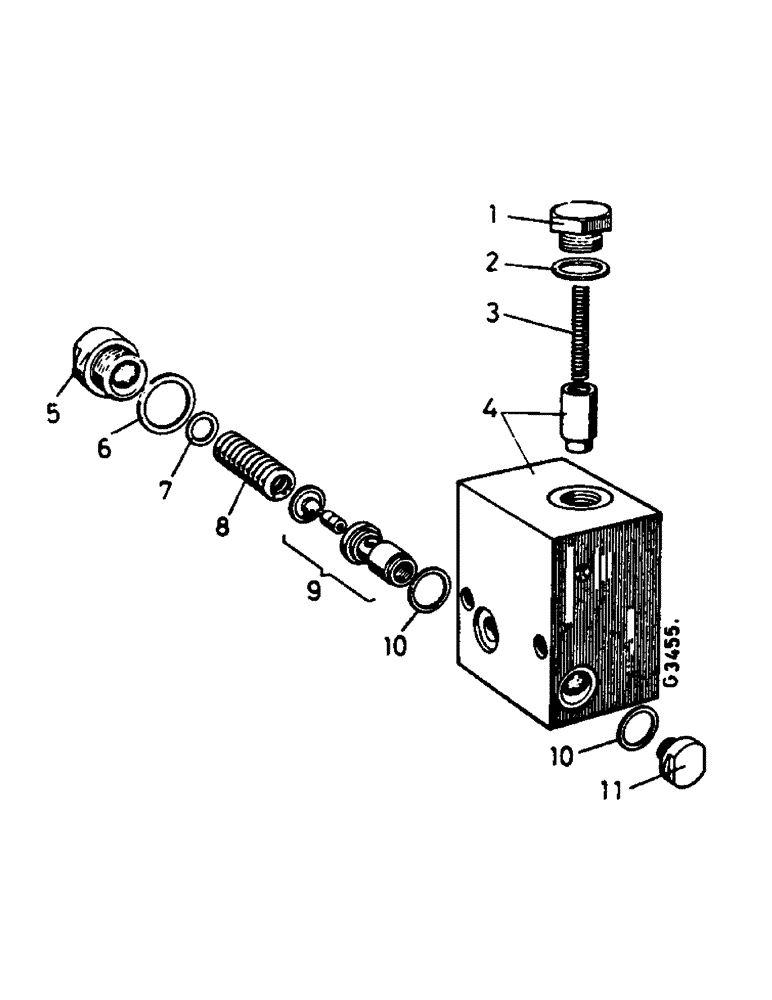

Запчасти Case IH 744 (2I01) - MOUNTING BLOCK (07) - HYDRAULICS

3134342R91

VALVE

BLOCK mounting, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG, 3055831R1

1шт.

2

NSS

NOT SOLD SEPARAT

RING packing, 933721R1

1шт.

3

3055827R1

SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

Order: 3132342R91

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG, 3055826R1

1шт.

6

NSS

NOT SOLD SEPARAT

RING packing, 717183R1

1шт.

7

3055824R1

WASHER

SHIM, 0.3 mm

1шт.

7

3055825R1

WASHER

SHIM, 0.7 mm

1шт.

8

3055823R1

SPRING

1шт.

9

3055819R91

VALVE

safety

1шт.

10

NSS

NOT SOLD SEPARAT

RING packing, 933610R1

2шт.

11

NSS

NOT SOLD SEPARAT

PLUG, 3055820R1

1шт.

3225769R91

SEAL KIT

SET sealing, with: 2, 6 and 10

1шт.
