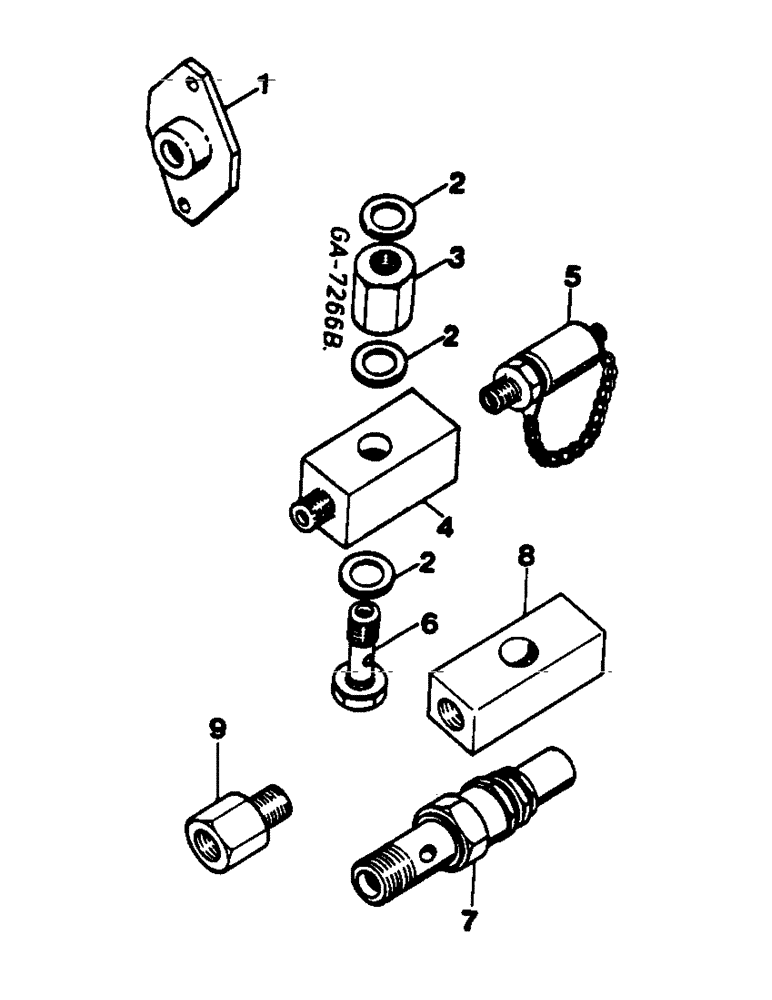

Запчасти Case IH 744 (1B18) - CONNECTING PARTS FOR , IH-PRUFCENTER Accessories & Attachments / Miscellaneous

1

3221908R91

PACKAGE

SET connecting parts, Includes: Ref. 1 - 6

1шт.

1

3221912R91

COVER

injection pump

1шт.

2

933697R1

SEALING RING,M10 x 13.5 x 1

3шт.

3

3221917R1

NUT

air cleaner connection

1шт.

4

3221916R1

ADAPTER

CONNECTOR air cleaner

1шт.

5

3139135R1

COUPLING, BREAK AWAY

screw, M16 x 1/8"

7шт.

6

3221915R1

SCREW

hollow

1шт.

7

3221911R1

SCREW

hollow, on cylinder cover 3220168R92

1шт.

8

3224544R1

COUPLING, BREAK AWAY

SPARE PART

1шт.

9

3221920R91

SPACER

CONNECTOR, M10 x 1/8"

1шт.
