Запчасти Case IH 744 (2H10) - DRAFT CONTROL VALVE (XXX-) (07) - HYDRAULICS

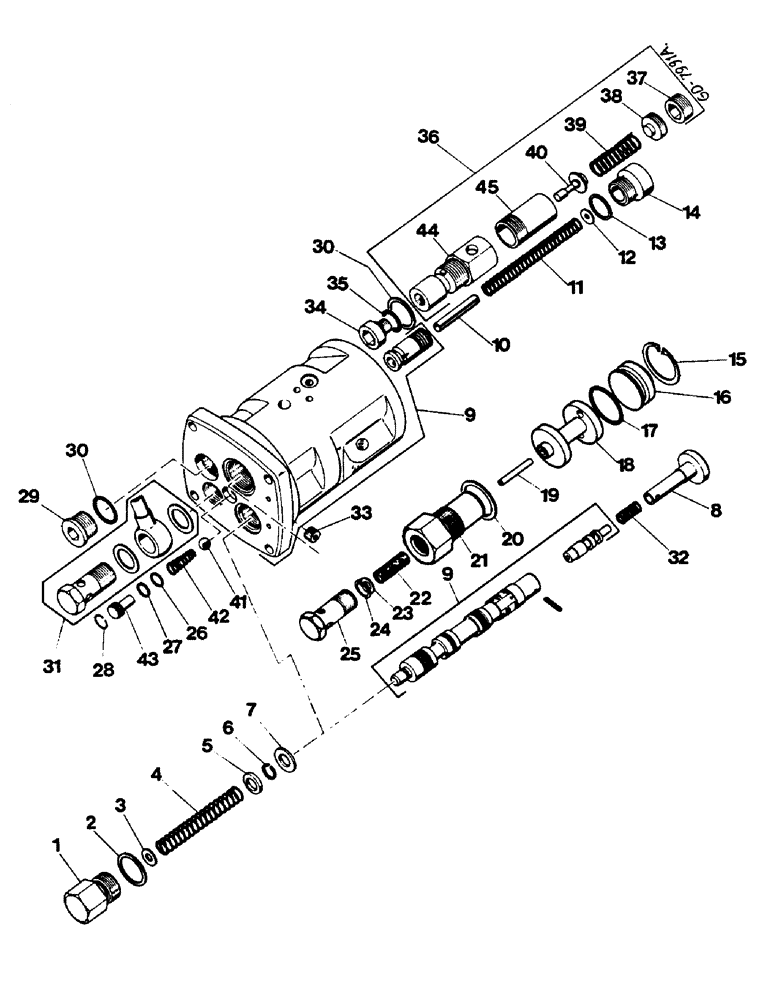

Схема запчастей Case IH 744 - (2H10) - DRAFT CONTROL VALVE (XXX-) (07) - HYDRAULICS
14
35
18
10
11
30
7
31
37
29
19
25
30
27
20
36
38
3
45
2
4
9
21
40
28
12
43
34
32
24
1
5
39
9
6
17
8
16
23
26
44
33
22
42
13
41
15

Артикул

Название

Примечание

Количество

3217457R92

VALVE

control, Includes Ref. 1 - 45

1шт.

932625R1

LOCK PIN,M3 x 8, Slotted

1шт.

3225058R91

PACKAGE

KIT repair, with: 10-12, 14, 29 and 33

1шт.

3225059R91

PACKAGE, REPAIR

KIT with: 15, 16, 18 and 19

1шт.

3225060R91

PACKAGE

KIT repair, with: 15, 16, 18 and 19, oversize

1шт.

3225061R91

PACKAGE

KIT repair, with: 1, 3-8 and 32

1шт.

3225062R91

PACKAGE

KIT repair, with: 26 - 28 and 41 - 43

1шт.

3225063R91

VALVE, CHECK

KIT repair, with: 21 - 24

1шт.

3225064R91

PACKAGE, REPAIR

KIT, with: 2, 13, 17, 20, 25, 30 and 35

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG, 3145186R1

1шт.

2

NSS

NOT SOLD SEPARAT

RING packing, 717183R1

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM spool, 3053113R1

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING spool return, 3145185R1

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER, 3054834R1

1шт.

6

NSS

NOT SOLD SEPARAT

RING snap, 3054835R1

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER, 3053110R2

1шт.

8

NSS

NOT SOLD SEPARAT

TAPPET spool, 3145183R1

1шт.

932349R1

LOCK PIN,M2.5 x 14, Slotted

1шт.

932266R1

LOCK PIN,M4 x 14, Slotted

1шт.

10

NSS

NOT SOLD SEPARAT

roll, 932724R1

1шт.

11

3225058R91

PACKAGE

SPRING flow, divider

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM flow, divider spring, 3053131R1

1шт.

13

NSS

NOT SOLD SEPARAT

RING packing, 933222R1

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG, 3056341R2

1шт.

15

NSS

NOT SOLD SEPARAT

CIRCLIP, 933327R1

1шт.

16

NSS

NOT SOLD SEPARAT

RETAINER o-ring, 3053118R4

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING, 3051823R1

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON, control bloc valve, 3053115R2

1шт.

19

NSS

NOT SOLD SEPARAT

PIN thrust, 3053120R1

1шт.

20

NSS

NOT SOLD SEPARAT

RING packing, on bloc valve, 933608R1

1шт.

21

NSS

NOT SOLD SEPARAT

BLOCK valve, with valve cone, 3145187R91

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING block valve, 3147495R1

1шт.

23

NSS

NOT SOLD SEPARAT

SHIM block valve spring, 3148794R1

1шт.

24

NSS

NOT SOLD SEPARAT

CIRCLIP, 3053126R1

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW hollow, 930259R1

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING, 3147

1шт.

27

NSS

NOT SOLD SEPARAT

RING back-up, 3147861R1

1шт.

28

NSS

NOT SOLD SEPARAT

CIRCLIP, 934265R1

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG M20, 3056332R2

1шт.

30

718957R1

SEALING RING,M20 x 24 x 1.5

packing

2шт.

31

NSS

NOT SOLD SEPARAT

see page 294, 2H2

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING, 3147496R1

1шт.

33

NSS

NOT SOLD SEPARAT

NOZZLE damping, 3216758R91

1шт.

34

3217463R1

PLUG

SPARE PART

1шт.

35

3145895R1

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

1шт.

36

3217459R92

VALVE

relief

1шт.

37

NSS

NOT SOLD SEPARAT

NUT lock, 3059465R1

1шт.

38

NSS

NOT SOLD SEPARAT

PLUG, 3224810R1

1шт.

39

NSS

NOT SOLD SEPARAT

SPRING, 3055823R1

1шт.

40

NSS

NOT SOLD SEPARAT

POPPET, 3217461R1

1шт.

41

NSS

NOT SOLD SEPARAT

BALL non-return valve, 17016R1

1шт.

42

NSS

NOT SOLD SEPARAT

SPRING, 3147859R1

1шт.

43

NSS

NOT SOLD SEPARAT

PIN thrust, 3147860R1

1шт.

44

NSS

NOT SOLD SEPARAT

SEAT valve, 3225787R1

1шт.

45

NSS

NOT SOLD SEPARAT

SLEEVE, 3225788R1

1шт.

Выбрано товаров: 55
