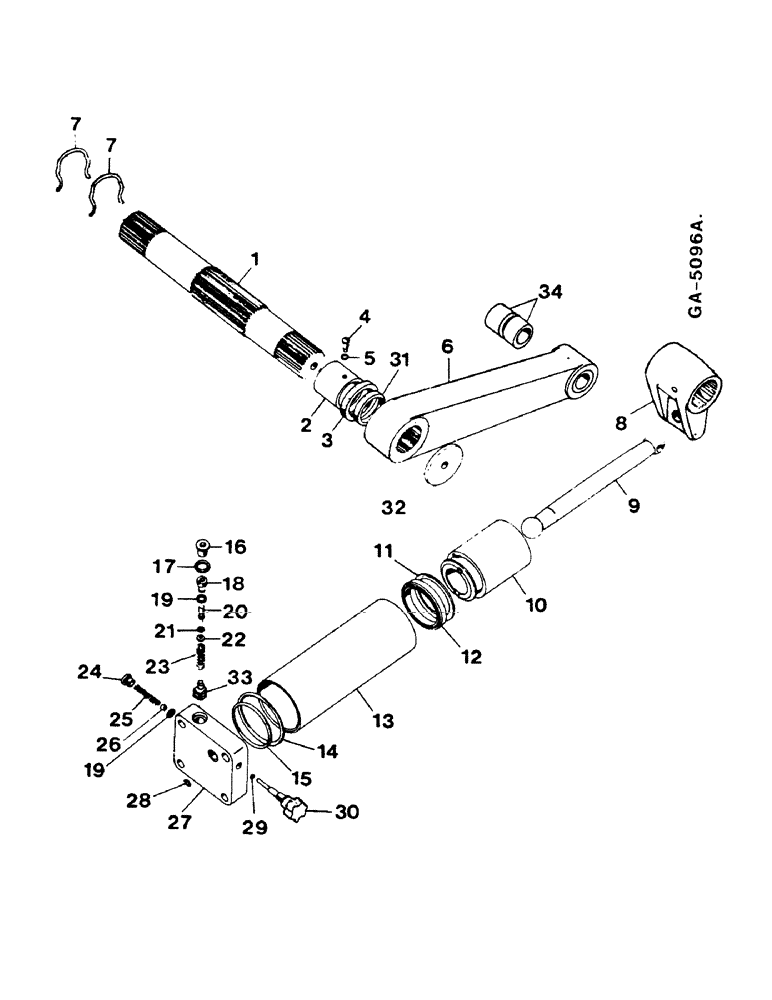

Запчасти Case IH 744 (2G19) - POWER CYLINDER, ROCKSHAFT ASSEMBLY (07) - HYDRAULICS

1

3145173R1

HYD ROCKSHAFT

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

2

3057609R2

BUSHING

rockshaft

2шт.

3

3131661R1

O-RING,5mm Thk x 59mm ID, 70 Duro

2шт.

4

716447R2

SCREW

slotted

2шт.

5

710673R2

SEALING WASHER,8mm ID x 11.5mm OD x 1mm Thk

RING packing

4шт.

6

3145176R92

ROCKER ARM

2шт.

714100R91

NIPPLE, LUBE

NIPPLE

2шт.

7

3145195R1

CLIP

2шт.

8

82279C1

ARM

power

1шт.

838-5836

LOCK PIN,M8 x 36, Slotted

1шт.

Q5164

ROLL PIN,5mm OD x 36mm L, Slotted

1шт.

9

3141520R1

ROD

connecting, ball type (-xxx)

1шт.

9

82277C1

STEM

ROD connecting, ball type (xxx-)

1шт.

932675R1

LOCK PIN,M8 x 100, Slotted

1шт.

10

3131668R1

PISTON

1шт.

11

3057612R2

WASHER

SPREADER seal

1шт.

12

3057611R1

SEALING RING

piston

1шт.

13

3145172R1

SLEEVE CYLINDER

TUBE

1шт.

14

3057614R1

O-RING,3mm Thk x 115mm ID, 72 Duro

1шт.

15

3057615R1

O-RING,3mm Thk x 99mm ID, 88 Duro

1шт.

15

3232788R1

RING,100.4mm ID x 105mm OD x 1.5mm Thk

back-up

1шт.

16

934025R1

PLUG,Hex Soc, M22 x 1.5

1шт.

17

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.

18

3131214R1

SEAT, VALVE

1шт.

19

933155R1

SEALING RING,M16 x 20 x 1.5

2шт.

20

3131213R1

VALVE

CONE

1шт.

21

3131216R1

WASHER

1шт.

22

3131215R1

WASHER

1шт.

23

3131218R1

SPRING

1шт.

24

3051784R1

PLUG

1шт.

25

3057617R1

SPRING

1шт.

26

211-1013

BALL,10.31mm OD, Gr 24

valve

1шт.

27

3145828R91

HEAD

COVER cylinder, with: 16-26, 29, 30 and 33 (-xxx)

1шт.

27

1532178C1

COVER

cylinder, with: 16-26, 29, 30 and 33 (xxx-)

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

28

3051785R1

O-RING,2.4mm Thk x 6.3mm ID, 72 Duro

1шт.

29

3052813R1

O-RING,2.54mm Thk x 3.3mm ID, 70 Duro

1шт.

30

3145829R91

SPINDLE

1шт.

3058347R1

PIN

1шт.

932265R1

LOCK PIN,M3 x 24, Slotted

1шт.

932470R1

LOCK PIN,M6 x 20, Slotted

1шт.

31

3131660R1

RING,59.5mm ID x 67.5mm OD x 10mm Thk

spacer

2шт.

32

3131172R1

WASHER

2шт.

33

3142326R1

GUIDE

SPRING

1шт.

34

3217258R1

BUSHING,35mm ID x 40mm OD x 30mm L

set of two

4шт.
