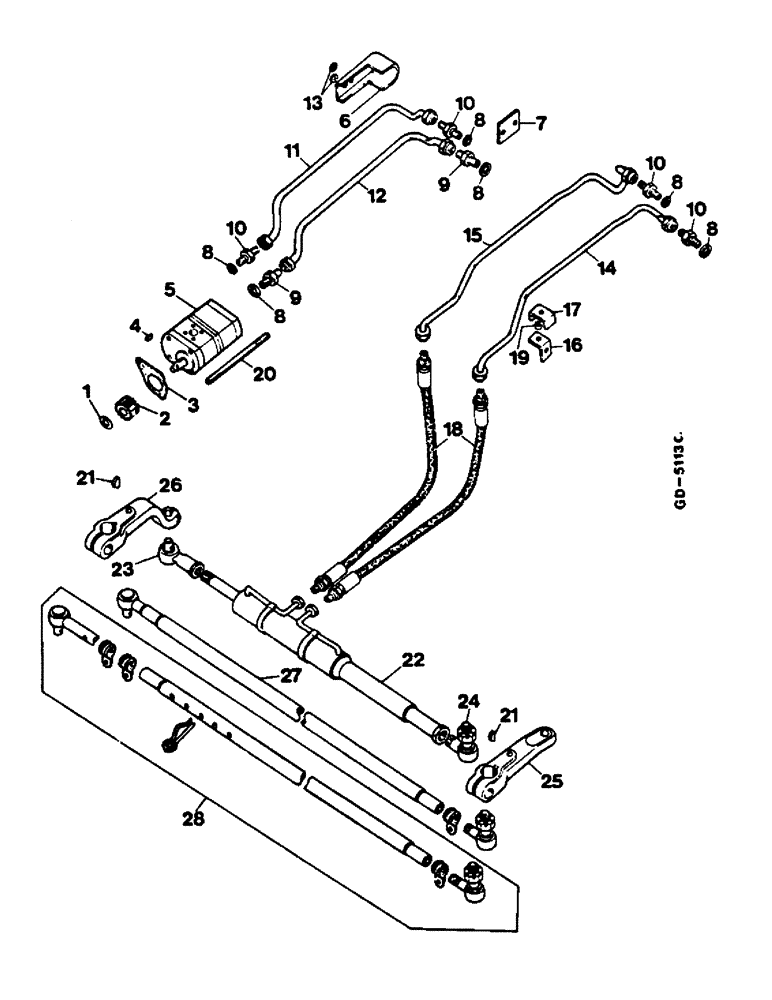

Запчасти Case IH 744 (2G02) - POWER STEERING (07) - HYDRAULICS

1

3054302R1

PLATE, LOCKING

WASHER, with tang

1шт.

2

3057396R1

GEAR

drive, 20 teeth

1шт.

934945R1

NUT,Thin, M12 x 1.5, Cl 04

1шт.

3

3057397R2

GASKET

1шт.

4

155700750718

WOODRUFF KEY

1шт.

5

NSS

NOT SOLD SEPARAT

PUMP tandem, see Figure: 2G4

1шт.

6

3059448R1

CAP

1шт.

353669X1

SCREW

BOLT, 1/4" x 25 mm

2шт.

7

3059449R1

PLATE

counter

1шт.

8

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

6шт.

9

3225748R1

HYD CONNECTOR,M18 x 1.5 x M22 x 1.5

2шт.

10

3225749R1

HYD CONNECTOR,M18 x 1.5 x M20 x 1.5

4шт.

11

3147936R1

PIPE

return, 644 (-014 221) C, 744 (-013 698) C, 844 (-006 275) C, 884S (-016 724) C, see also, Figure: 2F18, 644/744

1шт.

11

3147935R1

PIPE

return, 644 (-014 221) C, 744 (-013 698) C, 844 (-006 275) C, 884S (-016 724) C, see also, Figure: 2F18, 844/844S

1шт.

11

3223606R1

PIPE

SPARE PART return, (Canada-Version), 844/844S

1шт.

12

3147934R2

PIPE

pressure, 644/744

1шт.

12

3147933R2

PIPE

pressure, 844/844S

1шт.

12

3223605R1

PIPE

SPARE PART pressure, (Canada-Version), 844/844S

1шт.

13

446179

WASHER,#12

2шт.

14

3147939R2

PIPE

pressure, control valve to steering cylinder, LH, 644/744

1шт.

14

3147937R2

PIPE

pressure, control valve to steering cylinder, LH, 844/844S

1шт.

15

3147940R2

PIPE

pressure, control valve to steering cylinder, RH, 644/744

1шт.

15

3147938R2

PIPE

pressure, control valve to steering cylinder, RH, 844/844S

1шт.

16

3145415R2

ANGLE

BRACKET clamp

1шт.

113-514

BOLT,Hex, 9/16" - 12 x 1", Gr 5, Full Thd

1шт.

492-11056

LOCK WASHER,9/16"

1шт.

17

3059447R2

CLAMP

1шт.

353669X1

SCREW

BOLT, 1/4" x 25 mm

1шт.

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

18

3147528R4

HYDRAULIC HOSE,10.00 mm ID x 540.00 mm, SAE 100R2

Pressure

2шт.

19

3145416R1

SPACER

RING

1шт.

20

3147536R2

STUD

210 mm

1шт.

20

3147930R1

STUD

265 mm

1шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

(3/8")

3шт.

21070R1

NUT,3/8"-16, G8

3шт.

21

932786R1

KEY,M12 x 8 x 30, Par

2шт.

22

NSS

NOT SOLD SEPARAT

CYLINDER steering, see Figures: 2G6, 2G8 and 2G11

1шт.

934071R1

LOCK WASHER

tooth, 20 mm

1шт.

933707R1

NUT,Thin, M20 x 1.5

M20

1шт.

23

3141532R93

ARTICULATION

ball, M20, not used with four wheel drive units, 844 (-005 275) C, 844S (-010 500 ) C

1шт.

23

3224266R92

BALL JOINT

M20, not used with four wheel drive units, 844 (005 276-) C, 844S (010 501-) C, 844/844S

1шт.

24

3141530R91

BALL JOINT

M22, not used with four wheel drive units, 844 (-005 275) C, 844S (-010 500) C

1шт.

24

3224265R92

BALL JOINT

M24, not used with four wheel drive units, 844 (-005 275) C, 844S (-010 500) C, 844/844S

1шт.

24

3230099R91

BALL JOINT

M24, not used with four wheel drive units, 844 (006 276-) C, 844S (016 725-) C, 844/844S

1шт.

933943R1

WASHER

SPARE PART tooth lock, 22 mm

1шт.

934846R1

LOCK WASHER,Serr, M25

tooth lock, 24 mm, 844/844S

1шт.

933757R1

THIN NUT,M14 x 1.5

1шт.

933316R1

NUT

M22

1шт.

933068R1

NUT,Thin, M24 x 1.5

M24, 844/844S

1шт.

932843R1

COTTER PIN,M3.2 x 28

cotter, 3 x 28 mm

1шт.

25

NSS

NOT SOLD SEPARAT

ARM steering knuckle, see Figures: 3H8 and 3H11

1шт.

26

NSS

NOT SOLD SEPARAT

ARM steering knuckle, see Figures: 3H8 and 3H11

1шт.

27

NSS

NOT SOLD SEPARAT

ROD tie, see Figures: 3H8 and 3H11

1шт.

28

NSS

NOT SOLD SEPARAT

ROD tie, adjustable, see Figures: 3H8 and 3H11

1шт.
