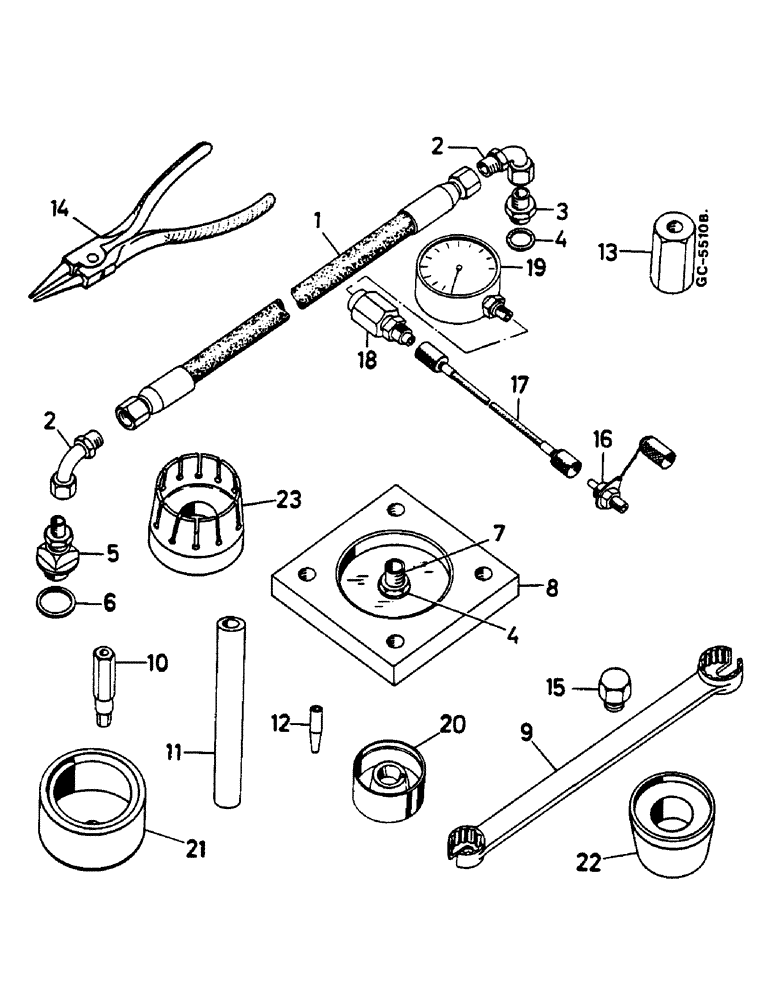

Запчасти Case IH 744 (1B15) - SERVICE TOOLS FOR HYDRAULIC SYSTEM Accessories & Attachments / Miscellaneous

1

3148817R91

TOOL KIT

service set, Includes: Ref. 1 - 15

1шт.

1

3058933R91

REGULATOR

THROTTLE ASSY., Includes: Ref. 1 - 6

1шт.

1

713436R91

HOSE

pressure

1шт.

2

3058933R91

REGULATOR

ELBOW, 90 deg.

2шт.

3

717329R1

UNION

SPARE PART adapter, M18

1шт.

4

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

5

NSS

NOT SOLD SEPARAT

UNION throttle

1шт.

6

1964123C1

SEALING RING,M23 x 31 x 2

26 x 31 mm

1шт.

7

716335R1

UNION

adapter, M16 x M18

1шт.

8

3058934R11

FLANGE

test, cylinder head, with: 4, 7 and 8

1шт.

8

3058934R1

FLANGE test

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

9

3404241R1

TOOL

WRENCH special, 24 x 27 mm

1шт.

9

3148252R1

SPECIAL WRENCH

17 x 19 mm

1шт.

10

3058941R1

TOOL

adjusting, safety valve

1шт.

11

3148818R1

TOOL

installing, seal 3145168R91

1шт.

12

3148819R1

TOOL

installing, seal 3145168R91

1шт.

13

3058950R1

UNION

connector, safety valve to test pump

1шт.

14

3058942R91

PLIERS

circlip

1шт.

15

3053532R1

UNION

pressure gauge connection, M20

1шт.

16

3139828R91

TOOL KIT

service, set, for hydraulic, Includes: Ref. 16 - 19

1шт.

16

3139135R1

COUPLING, BREAK AWAY

1/8"

5шт.

16

3139829R1

COUPLING, BREAK AWAY

1/4"

2шт.

17

3139136R1

HOSE,600.00 mm

Pressure

3шт.

17

3139830R1

HOSE

Pressure, Length 1500 mm

3шт.

18

3139137R1

UNION

connector

3шт.

19

3139140R2

HEAD

GAUGE - 1 - + 1.5 kp/cm2

1шт.

19

3139141R2

GAUGE

- 1 - + 15 kp/cm2

1шт.

19

3139142R2

GAUGE

0 - + 25 kp/cm2

1шт.

19

3139143R2

ELECTRICAL GAUGE

0 - + 250 kp/cm2

3шт.

20

3217500R1

TOOL

SPARE PART pump alignment

1шт.

21

Not- used, Includes: Ref. 21 - 23

1шт.
