Запчасти Case IH 744 (2F0001) - THREE-POINT-LINKAGE (07) - HYDRAULICS

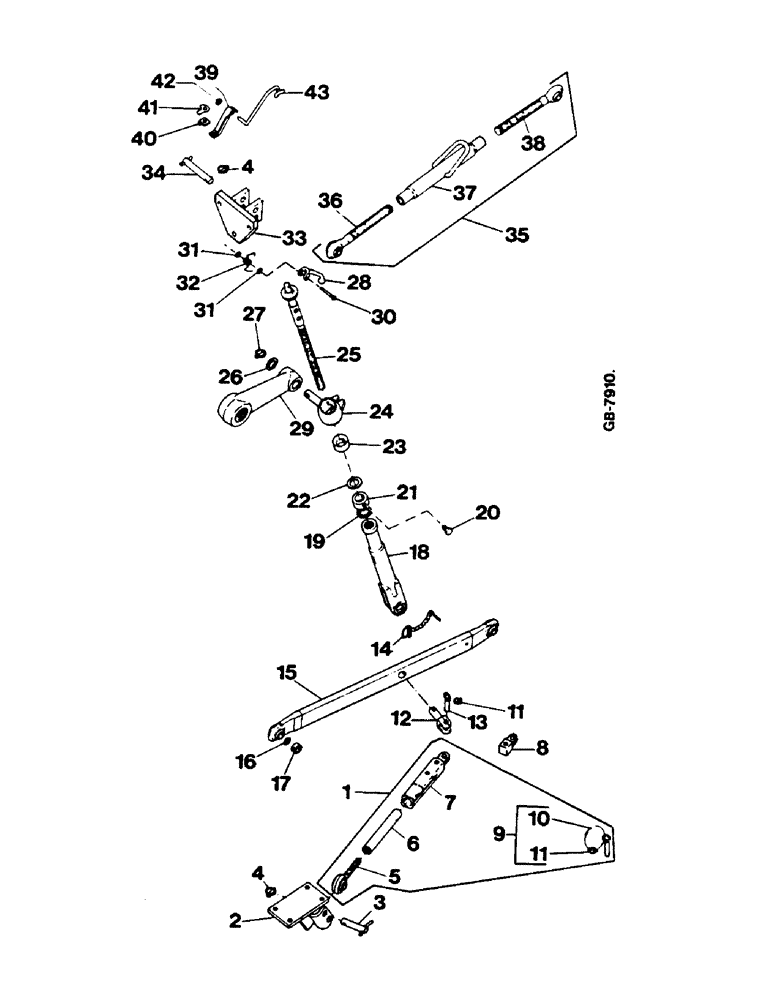

Схема запчастей Case IH 744 - (2F0001) - THREE-POINT-LINKAGE (07) - HYDRAULICS
31
11
18
42
27
24
29
34
196
43
30
40
4
21
35
2
36
13
9
3
41
7
15
14
33
20
5
31
25
12
23
28
10
6
4
37
1
38
8
17
11
39
22
19
26
32

Артикул

Название

Примечание

Количество

1

1965995C91

BAR

LINK check

2шт.

2

3147000R91

BRACKET

LH

1шт.

2

3147001R91

BRACKET

RH

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

8шт.

92-11062

LOCK WASHER,5/8"

8шт.

3

3140011R21

CROSS PIN,19mm OD x 120mm L

2шт.

4

3057346R11

LINCH PIN

1шт.

5

3146372R92

END,1" - 8

ROD adjusting

2шт.

6

3140714R2

ROD

ROD extension

2шт.

7

3140713R2

HOUSING

2шт.

932724R1

LOCK PIN,M7 x 45, Slotted

1шт.

932759R1

LOCK PIN,M12 x 45, Slotted

1шт.

8

3141343R1

PIN

eye (-xxx)

2шт.

9

3140715R91

SPLIT PIN/SAFETY PIN,12.7mm OD x 180mm L

cross, with rope and linch pin

2шт.

10

3140715R91

SPLIT PIN/SAFETY PIN,12.7mm OD x 180mm L

ROPE

2шт.

11

3057333R91

LINCH PIN,5mm OD

4шт.

12

3140005R1

CLEVIS PIN

yoke

2шт.

13

3226000R1

PIN,16mm OD x 60mm L

cross, 3141346R11

2шт.

14

3057364R94

PIN

linch, with chain

2шт.

15

3145155R92

LOWER LINK

644

2шт.

15

3145163R92

LOWER LINK

744/844/844S

2шт.

3229628R91

END

weldment, 644

1шт.

80473C91

PACKAGE, REPAIR

END weldment, 744/844/844S

1шт.

16

3216984R1

WASHER

1шт.

17

3145161R1

SPACER,25.1mm ID x 40mm OD x 16mm L

2шт.

932234R1

LOCK PIN,M6 x 40, Slotted

2шт.

932203R1

LOCK PIN,M2 x 18, Slotted

10 x 40 mm

2шт.

18

3148915R91

PACKAGE

ROD lifting, Includes: 18 - 28, 644

2шт.

18

3148914R91

PACKAGE

ROD lifting, Includes: 18 - 28, 744/844/844S

2шт.

18

3145154R2

FORK

for levelling spindle, Order also: 3229744R1, 644

2шт.

18

3140003R1

NO LONGER SERVICED

FORK for levelling spindle, Order also: 3229744R1, 744/844/844S

2шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

(-xxx)

2шт.

3229774R2

HARNESS

LUBRICATOR (xxx-)

2шт.

19

3051218R1

WASHER

felt, 644

2шт.

19

28722K

WASHER

felt, 744/844/844S

2шт.

20

3140006R1

BOLT

set

2шт.

21

3140009R3

SPACER,29mm ID x 60mm OD x 43.2mm L

RING set

2шт.

22

3140010R1

WASHER,29mm ID x 56mm OD x 1mm Thk

1шт.

23

3140009R3

SPACER,29mm ID x 60mm OD x 43.2mm L

2шт.

24

3140706R2

PIVOT

LH

1шт.

24

3140707R2

PIVOT

RH

1шт.

714100R91

NIPPLE, LUBE

NIPPLE

2шт.

25

3145151R91

ROD

SPINDLE levelling, LH, 644

1шт.

25

3141992R91

ROD

SPINDLE levelling, LH, 744/844/844S

1шт.

25

3145153R1

LIFTING ROD

SPINDLE levelling, RH, 644

1шт.

25

3140000R1

LIFTING ROD

SPINDLE levelling, RH, 744/844/844S

1шт.

838-5530

LOCK PIN,M5 x 30, Slotted

1шт.

932742R1

LOCK PIN,M5 x 26, Slotted

1шт.

26

495-81217

WASHER,1.41" ID x 2.25" OD x 0.14" Thk

2шт.

27

3053363R91

LINCH PIN,32mm OD

linch

1шт.

28

523861R2

HANDLE

levelling

1шт.

29

NSS

NOT SOLD SEPARAT

ARM rocker, see Figure: 2G19

2шт.

30

934995R1

HEADED PIN,M8 x 60

headed

2шт.

On units with cab 2000

1шт.

932766R1

COTTER PIN,M2 x 12

2 x 12 mm

2шт.

31

934033R1

WASHER,M8 x 15 x 2

1шт.

On units with cab 2000

1шт.

32

3223430R1

SPRING

2шт.

On units with cab 2000

1шт.

33

3145297R91

HOLDER

BRACKET upper link

1шт.

IH271652

BOLT

7/8" x 38 mm

2шт.

326-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

1шт.

492-11088

LOCK WASHER,7/8"

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

34

3140013R21

PIN

cross

1шт.

35

1965996C91

UPPER LINK

1шт.

36

3147359R91

END

upper link, RH thread

1шт.

25984R1

NUT,1 1/4"-7, G8

1шт.

37

3141808R91

TURNBUCKLE

1шт.

38

3220674R92

END

upper link, LH thread

1шт.

39

3223244R91

CLAMP

upper link

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

40

3223895R1

ANGLE

1шт.

41

933597R1

WASHER,Tab, M10.5

SHEET locking

1шт.

42

934065R1

WASHER,M10.5

1шт.

43

3058490R2

CLAMP

upper link

1шт.

432-816

COTTER PIN,1/8" x 1"

1шт.

Выбрано товаров: 78
