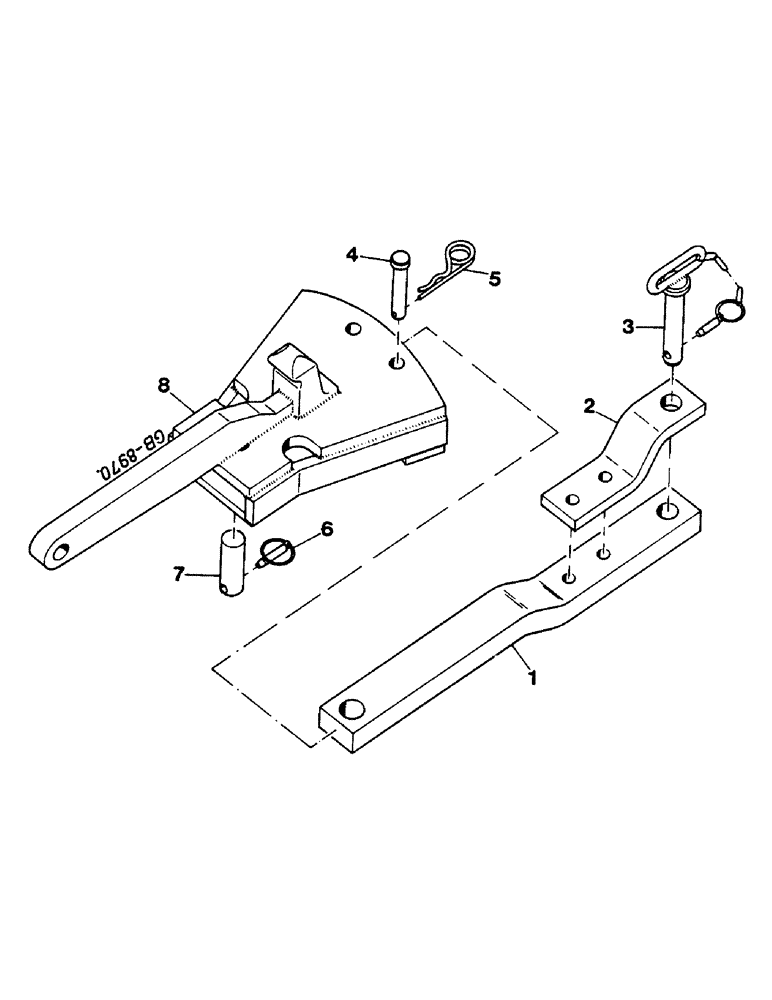

Запчасти Case IH 744 (2E19) - SWINGING DRAWBAR, FRENCH VERSION (07) - HYDRAULICS

1

3230859R1

DRAWBAR, SWINGING

1шт.

1

3145986R92

DRAWBAR, SWINGING

with: 2 - 8

1шт.

2

3230860R1

DRAWBAR CLAMP

swinging

1шт.

931846R1

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

2шт.

905239R1

NUT,M16 x 1.5

M16

2шт.

3

1965010C2

HITCH PIN

1шт.

4

MGP1292

PIN

cross

2шт.

5

3221454R1

SPLIT PIN/SAFETY PIN

CLIP spring

2шт.

6

3221464R1

SPLIT PIN/SAFETY PIN

linch with ring

1шт.

7

3145992R1

PIN

1шт.

8

3145987R2

DRAWBAR SUPPORT

BRACKET

1шт.
