Запчасти Case IH 744 (2E17) - TRAILER HITCH FRENCH VERSION, P/N 3225674R91 (07) - HYDRAULICS

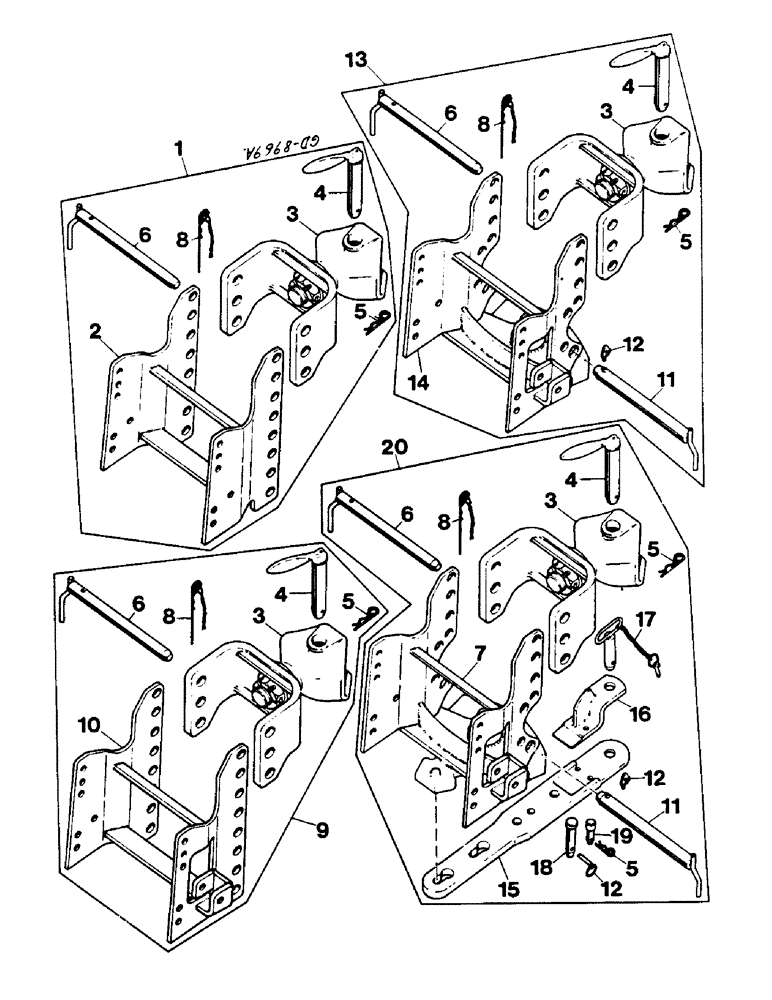

Схема запчастей Case IH 744 - (2E17) - TRAILER HITCH FRENCH VERSION, P/N 3225674R91 (07) - HYDRAULICS
1
8
13
7
16
5
4
5
12
15
5
8
5
6
6
19
4
14
8
4
3
10
12
3
12
5
18
3
17
20
11
8
11
4
9
3
6
6
2

Артикул

Название

Примечание

Количество

1

3225674R91

HITCH ASSY, TRAILER

1шт.

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

10шт.

24044R1

BOLT, 5/8" x 38 mm

2шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

12шт.

2

3225675R1

FUNNEL

FRAME draw

1шт.

3

3221450R1

HITCH BRACKET

trailer

1шт.

4

3221453R1

PIN

trailer hitch

1шт.

5

3221454R1

SPLIT PIN/SAFETY PIN

CLIP spring

1шт.

6

LEM500056

PIN

cross

1шт.

7

3226562R1

FUNNEL

FRAME draw

1шт.

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

10шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

10шт.

8

1974036C1

LINCH PIN

CLIP spring, cpl. with chain

1шт.

9

3226555R91

HITCH ASSY

trailer

1шт.

10

3226556R1

HITCH BRACKET

FRAME draw

1шт.

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

10шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

10шт.

11

3221463R1

PIN

swinging drawbar

1шт.

12

3221464R1

SPLIT PIN/SAFETY PIN

linch with ring

1шт.

13

3226558R91

HITCH ASSY

trailer

1шт.

14

3226559R91

PEDAL

FRAME draw

1шт.

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

10шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

10шт.

15

3221465R1

BAR

DRAW, adjustable

1шт.

16

82807C1

GUIDE

CLAMP swinging, drawbar

1шт.

931656R1

BOLT,Hex, M14 x 2 x 50mm, Cl 8.8

2шт.

905238R1

THIN NUT,M14 x 2, Thin

2шт.

17

3221469R1

HITCH PIN

swinging drawbar

1шт.

18

3221466R1

AXLE PIN

cross

1шт.

19

3221467R1

AXLE PIN

SPARE PART cross

1шт.

20

3226561R91

HITCH ASSY, TRAILER

1шт.

Выбрано товаров: 31
