Запчасти Case IH 744 (2D21) - FLASH LAMPS, FOR UNITS WITH CAB FRAME 3230809R91, 3225114R91, 3226353R91 (06) - ELECTRICAL

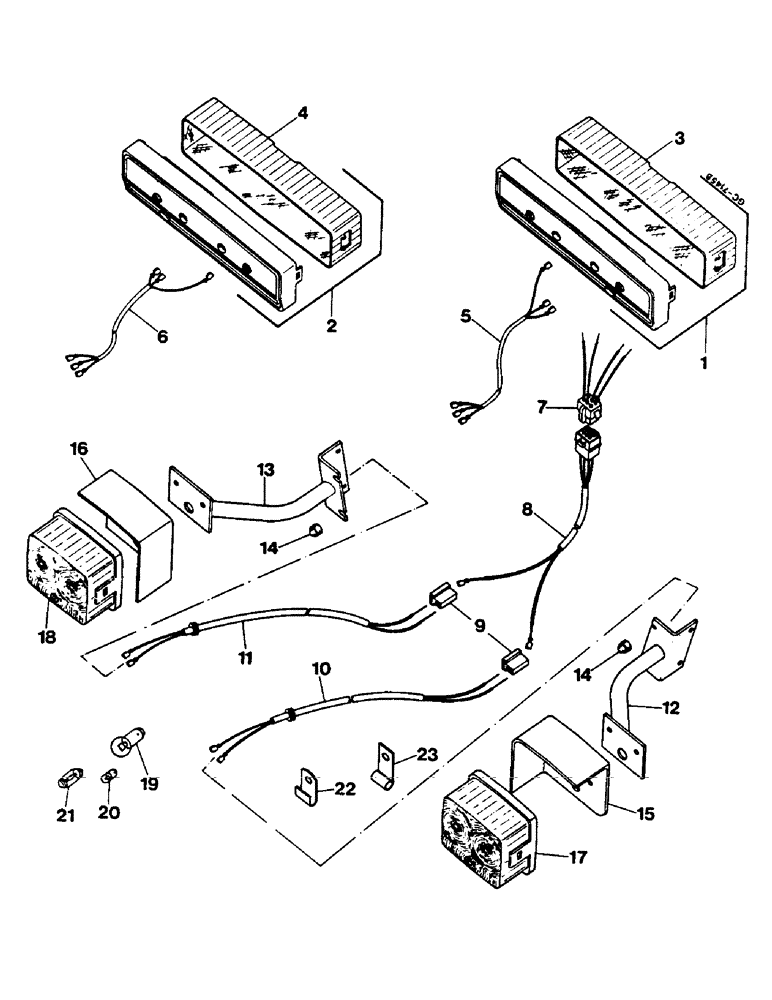

Схема запчастей Case IH 744 - (2D21) - FLASH LAMPS, FOR UNITS WITH CAB FRAME 3230809R91, 3225114R91, 3226353R91 (06) - ELECTRICAL
14
8
19
9
17
1
22
10
2
16
18
21
12
15
3
11
4
23
5
6
7
13
14
20

Артикул

Название

Примечание

Количество

1

3221209R92

LAMP, TAIL

LIGHT, TAIL flash-stop, LH "Hella"

1шт.

2

3221210R92

LAMP, TAIL

LIGHT, TAIL flash-stop, RH "Hella"

1шт.

931313R1

SCREW,Slotted Cheese, M5 x 0.8 x 20mm, Cl 4.8

BOLT, M5 x 20 mm

4шт.

933986R1

LOCK WASHER,M5

4шт.

825-1405

NUT,M5, Cl 8

4шт.

887416R1

WASHER

4шт.

3

3224286R1

LENS

glass, LH

1шт.

4

3224287R1

LENS

glass, RH

1шт.

5

3226114R1

CABLE

fender, LH

1шт.

6

3226115R1

CABLE

fender, RH

1шт.

7

3226116R1

CABLE

connecting

1шт.

8

3226117R1

CABLE

lamp, flash and position light, front

1шт.

9

3226355R1

SOCKET/RECEPTACLE

connecting, 2-pole, Order also: 3226356R1

2шт.

3226356R1

CONNECTOR, ELEC

CONNECTOR cable

4шт.

10

3226358R1

HARNESS

front, LH

1шт.

11

3226357R1

HARNESS

front, RH

1шт.

12

3226112R91

SUPPORT

LH

1шт.

832-10406

NUT,M6 x 1, Cl 8

4шт.

934055R1

WASHER,M6.4

4шт.

13

3226113R91

SUPPORT

RH

1шт.

832-10406

NUT,M6 x 1, Cl 8

4шт.

934055R1

WASHER,M6.4

4шт.

14

3221725R1

CAP

8шт.

15

3229611R1

CAP

protection, LH

1шт.

16

3229612R1

CAP

protection, RH

1шт.

17

3226119R1

LIGHT

flash and position, LH "Hella"

1шт.

18

3226120R1

LIGHT

flash and position, RH "Hella"

1шт.

931339R1

SCREW,Slotted Cheese, M4 x 0.7 x 16mm, Cl 8.8

BOLT, M4 x 15 mm

4шт.

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

4шт.

933824R1

THIN NUT,Thin, M4 x .5, Cl 04

4шт.

19

1094366R1

BULB

12V / 21W

6шт.

20

3051192R1

BULB

12V / 10W

2шт.

21

8420/03010

BULB

12V / 5W

4шт.

22

3229715R1

CLIP

cable

1шт.

23

3229713R1

CLIP

cable

2шт.

Выбрано товаров: 35
