Запчасти Case IH 744 (2D15) - FLASH LAMPS (06) - ELECTRICAL

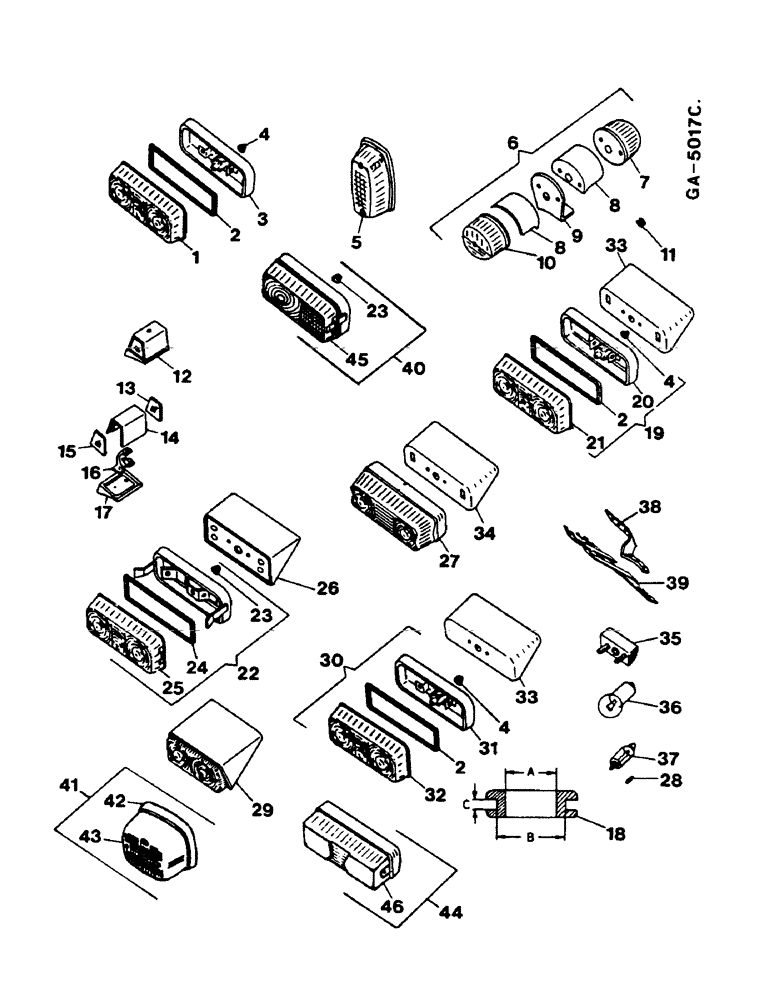

Схема запчастей Case IH 744 - (2D15) - FLASH LAMPS (06) - ELECTRICAL
2
4
27
14
8
13
37
7
21
18
4
5
28
46
40
16
20
32
39
36
43
22
11
25
6
33
12
15
19
2
1
38
35
24
8
4
23
44
23
31
3
34
9
29
45
10
41
2
42
17
33
26
30

Артикул

Название

Примечание

Количество

1

3146237R1

LENS

white/yellow, for 3145583R91 (Seima)

1шт.

1

3221211R91

INDICATOR LIGHT

LENS, white/yellow, for 3146236R91 (Seima)

1шт.

1

3147147R1

LENS

white, for 3147135R91 (Seima)

1шт.

For Italy (-xxx)

1шт.

1

3148917R1

LENS

SPARE PART white, for 3147136R91 (Seima)

1шт.

For Italy (-xxx)

1шт.

3146239R1

SCREW

BOLT

2шт.

2

3146242R1

GASKET

(Seima)

2шт.

3

3146240R1

HOUSING

SPARE PART for 3147135R91 (Seima)

1шт.

For Italy (-xxx)

1шт.

3

3146241R1

HOUSING

SPARE PART for 3147136R91 (Seima)

1шт.

For Italy (-xxx)

1шт.

3

3148919R1

SPARE PART for 3145583R91 (Seima)

1шт.

3

3148920R1

CASE

HOUSING for, 3146236R91 (Seima)

1шт.

931591R1

SELF-TAP SCREW,Slotted Pan Hd, M4.2 x 16

8шт.

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

4шт.

4

3147849R1

GROMMET

(Seima)

2шт.

5

3145582R91

LAMP flash and position, white/yellow "Hella"

2шт.

5

3145585R91

LAMP, flash and position, white "Hella"

2шт.

For Italy (-xxx)

1шт.

5

3221211R91

INDICATOR LIGHT

flash and position, white-yellow

2шт.

931591R1

SELF-TAP SCREW,Slotted Pan Hd, M4.2 x 16

8шт.

6

3145949R91

LIGHT ASSY.

flash, position and tail, LH

1шт.

6

3145950R91

LIGHT ASSY.

flash, position and tail, RH

1шт.

931340R1

SCREW,Slotted Cheese, M5 x 0.8 x 12mm, Cl 4.8

BOLT, M5 x 10 mm

4шт.

933986R1

LOCK WASHER,M5

4шт.

933187R1

NUT,M5, Cl 8

4шт.

7

3146893R1

LAMP, TAIL

LIGHT, TAIL flash-tail, yellow/red

2шт.

8

3146892R1

PROTECTOR

CAP

4шт.

9

3145949R91

LIGHT ASSY.

BRACKET, LH

1шт.

9

3145950R91

LIGHT ASSY.

BRACKET, RH

1шт.

10

3146894R1

LIGHT

flash and position, white/yellow

2шт.

11

711793R1

GROMMET

2шт.

12

3131091R91

LIGHT

tail and position light, LH, Includes: 12 - 17

1шт.

12

3131092R91

LIGHT

tail and position light, RH, Includes: 12 - 17

1шт.

13

3058236R91

LENS

red, LH

1шт.

13

3058237R91

LENS

red, RH

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING, Order: 3131091R1, 3131092R91

1шт.

15

3058238R91

LENS

white, LH

1шт.

15

3058239R91

LENS

white, RH

1шт.

16

NSS

NOT SOLD SEPARAT

SOCKET bulb, Order: 3131091R91, 3131092R91

2шт.

17

3058240R1

SUPPORT

2шт.

759-14313

SELF-TAP SCREW,Slotted Pan Hd, M4.2 x 13

4шт.

18

34712D

GROMMET

A=10 mm, B=13 mm

1шт.

18

10489R2

GROMMET, A=12 mm, B=20 mm, C=4 mm

1шт.

19

NSS

NOT SOLD SEPARAT

LIGHT flash-stop-tail, LH "Seima", 3145587R91

1шт.

19

NSS

NOT SOLD SEPARAT

LIGHT flash-stop-tail, RH "Seima", 3145591R91

1шт.

20

3147142R1

HOUSING

LH

1шт.

20

3147142R1

HOUSING

RH

1шт.

21

3147139R1

LENS

red/yellow

2шт.

3146239R1

SCREW

BOLT

2шт.

22

3145942R91

LAMP, TAIL

LIGHT, TAIL flash-stop, LH "Hella", 3145594R91

1шт.

22

3145943R91

LAMP, TAIL

LIGHT, TAIL flash-stop, RH "Hella", 3145595R91

1шт.

23

3145948R1

GROMMET

2шт.

24

3145947R1

GASKET

2шт.

25

3145945R1

LENS

LH, red/yellow

1шт.

25

3145946R1

LENS

RH, red/yellow

1шт.

26

3221852R1

SUPPORT

2шт.

934941R1

SELF-TAP SCREW,Slotted Pan Hd, M4.8 x 19

4шт.

931591R1

SELF-TAP SCREW,Slotted Pan Hd, M4.2 x 16

(-xxx)

4шт.

931519R1

SELF-TAP SCREW,Hex Hd, M6.3 x 25

4шт.

893-10006

LOCK WASHER,Ext Tooth, M6

4шт.

27

3145589R91

LIGHT

flash-stop-tail, red/yellow "Ulo", 3147133R91, 3147134R91

2шт.

28

3050199R91

BULB,T4W, 12V, 4W

12V / 4W

1шт.

29

NSS

NOT SOLD SEPARAT

LIGHT flash-tail, LH, red/yellow "Hella", 3145594R91

1шт.

29

NSS

NOT SOLD SEPARAT

LIGHT flash-tail, RH, red/yellow "Hella", 3145595R91

1шт.

30

NSS

NOT SOLD SEPARAT

LIGHT flash-tail, LH "Seima", 3147133R91

1шт.

30

NSS

NOT SOLD SEPARAT

LIGHT flash-tail, RH "Seima", 3147134R91

1шт.

31

3147854R1

BASE

SPARE PART HOUSING, LH

1шт.

31

3147855R1

BASE

HOUSING, RH

1шт.

32

3147853R1

LENS

red/yellow

2шт.

3146239R1

SCREW

BOLT

2шт.

33

3147848R1

SUPPORT

2шт.

931591R1

SELF-TAP SCREW,Slotted Pan Hd, M4.2 x 16

4шт.

931519R1

SELF-TAP SCREW,Hex Hd, M6.3 x 25

4шт.

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

4шт.

893-10006

LOCK WASHER,Ext Tooth, M6

4шт.

34

3147848R1

SUPPORT

"Ulo"

2шт.

892-11008

LOCK WASHER,8mm ID

2шт.

43362

NUT,M8 x 1.25, Cl 10

2шт.

35

3053400R92

LIGHT, WARNING

number plate

1шт.

22709R1

BOLT

SPARE PART 1/4" x 19 mm

2шт.

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

36

71421

BULB,R5W, 12V, 5W

12V / 18 / 5W

1шт.

36

3051192R1

BULB

12V / 10W

1шт.

36

1094366R1

BULB

12V / 21W

1шт.

36

3131234R1

BULB,P25-2, 12V, 5W

12V / 21 / 5W

1шт.

37

8420/03010

BULB

12V / 5W

1шт.

38

3141350R1

STRAP

retainer

1шт.

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

2шт.

425-104

NUT,1/4"-20, Cl 5

2шт.

39

3141351R91

BRACKET

licence plate, semi-crown type fenders

1шт.

40

3221211R91

INDICATOR LIGHT

flash and position "Hella", 3145583R91, 3146236R91

2шт.

931313R1

SCREW,Slotted Cheese, M5 x 0.8 x 20mm, Cl 4.8

BOLT, M5 x 20 mm

4шт.

825-1405

NUT,M5, Cl 8

4шт.

887416R1

WASHER

4шт.

41

3121089R91

LIGHT

flash and position "Hella", 3148489R91

2шт.

On units with cap frame 3221801R91

1шт.

42

3121089R91

LIGHT

HOUSING

2шт.

On units with cab 2000

1шт.

934818R1

SCREW,M3.9 x 1.4 x 1.4mm

4шт.

43

3148501R1

LENS

2шт.

On units with cab 2000

1шт.

44

3221209R92

LAMP, TAIL

LIGHT, TAIL flash-stop, LH "Hella"

1шт.

On units with cab 2000

1шт.

44

3221210R92

LAMP, TAIL

LIGHT, TAIL flash-stop, RH "Hella"

1шт.

On units with cab 2000

1шт.

931313R1

SCREW,Slotted Cheese, M5 x 0.8 x 20mm, Cl 4.8

BOLT, M5 x 20 mm

4шт.

825-1405

NUT,M5, Cl 8

4шт.

887416R1

WASHER

4шт.

45

3224290R1

LENS

2шт.

46

3224286R1

LENS

LH

1шт.

On units with cab 2000

1шт.

46

3224287R1

LENS

RH

1шт.

On units with cab 2000

1шт.

Выбрано товаров: 118
