Запчасти Case IH 744 (2D07) - HEAD LIGHT (06) - ELECTRICAL

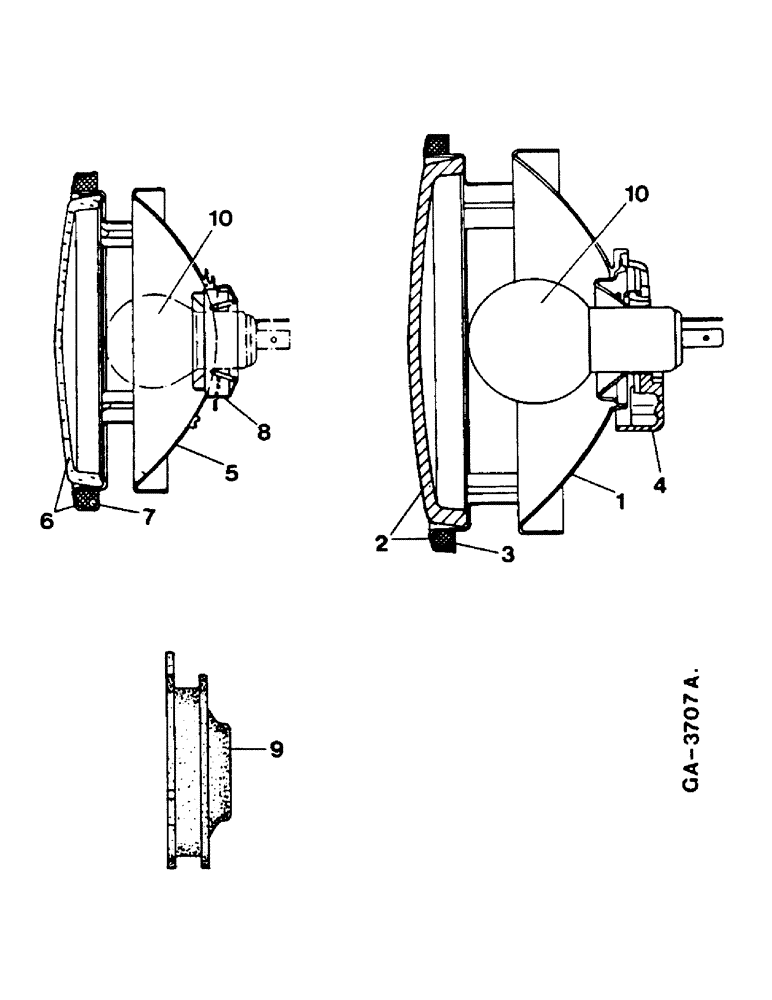

Схема запчастей Case IH 744 - (2D07) - HEAD LIGHT (06) - ELECTRICAL
10
3
5
7
10
4
2
1
9
8
6

Артикул

Название

Примечание

Количество

3404170R94

HEADLIGHT,12V

"Hella", RH traffic, Includes: 1 - 4

2шт.

3140024R91

INTERIOR LIGHT

head "Hella" , LH traffic, Includes: 1 - 4

2шт.

931367R1

SCREW,Oval CSK Cross Recess Phillips, M4 x 20mm

4шт.

3141704R2

SCREW

BOLT, M4 x 80 mm

4шт.

1

3141206R1

REFLECTOR

RH traffic

2шт.

1

3141208R1

REFLECTOR

LH traffic

2шт.

2

3233639R1

LAMP BASE

LENS with gasket, RH traffic

2шт.

2

3141209R1

LENS

with gasket, LH traffic

2шт.

3

3141205R1

GASKET

2шт.

4

3058308R1

SOCKET

CAP

2шт.

3404169R93

HEADLIGHT

"Bosch", RH traffic, Includes: 5 - 8

2шт.

3404169R93

HEADLIGHT

"Bosch", LH traffic, Includes: 5 - 8

2шт.

931367R1

SCREW,Oval CSK Cross Recess Phillips, M4 x 20mm

4шт.

5

3141206R1

REFLECTOR

RH traffic

2шт.

5

3141208R1

REFLECTOR

LH traffic

2шт.

6

3404169R93

HEADLIGHT

LENS with gasket, RH traffic

2шт.

6

3404169R93

HEADLIGHT

LENS with gasket, LH traffic

2шт.

7

3141205R1

GASKET

2шт.

8

3058308R1

SOCKET

bulb

2шт.

9

3140021R1

CAP

2шт.

10

3050198R91

BULB

yellow, 12V / 45 / 40W

2шт.

10

3076115R1

BULB,Halogen, 12V, 40W

white, 12V / 45 / 40W

2шт.

Выбрано товаров: 22
