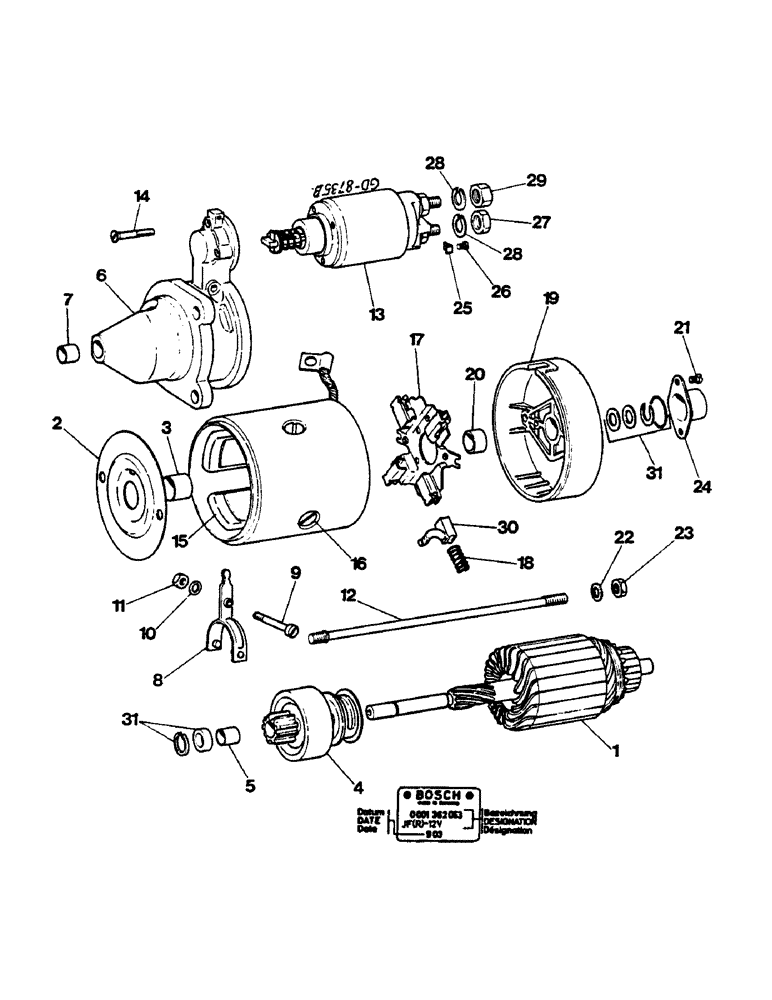

Запчасти Case IH 744 (2C23) - STARTING MOTOR 2.4 KW (06) - ELECTRICAL

1

3228193R91

STARTING MOTOR

Includes: 1 - 31

1шт.

1

3079162R1

ARMATURE

1шт.

2

3079163R91

COVER

BEARING, intermediate, with bushing

1шт.

3

3079164R1

BUSHING

1шт.

4

3079178R92

DRIVE

SHAFT, with bushing

1шт.

5

8003/02028

COMPOSITE RING

BUSHING

1шт.

6

3079179R91

DRIVE

HOUSING with, bushing

1шт.

7

3055738R2

BUSHING

1шт.

8

3078965R1

LEVER

shift

1шт.

9

3078879R1

BOLT

1шт.

10

3079166R1

SPRING WASHER,M8.4 ID x 15 OD x .8 Thk

8 mm

1шт.

11

825-1108

NUT,Hex, M8, Cl 8

1шт.

12

130800090704

LARGE PIN

PIN, LARGE BOLT

2шт.

13

3079180R92

SOLENOID

SWITCH

1шт.

14

354356A1

SCREW

BOLT

3шт.

15

3079168R92

COIL

field

1шт.

16

3078334R1

SCREW

BOLT

4шт.

17

3079174R1

HOLDER

COMMUTATOR end

1шт.

18

3079175R1

SPRING

brush

4шт.

19

130800090734

BEARING

COVER

1шт.

20

3079170R2

BUSHING

1шт.

21

905367R1

SCREW,M5 x 16mm, Cl 8.8

BOLT, M5 x 16 mm

2шт.

22

3079176R1

WASHER

2шт.

23

825-1406

NUT,M6, Cl 8

2шт.

24

3079177R1

CAP

1шт.

25

3132763R2

CLAMP

WASHER, square

1шт.

26

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

BOLT, M4 x 6 mm

1шт.

27

100016

NUT,M10 x 1.5, Cl 8

1шт.

28

933965R1

LOCK WASHER,M10

2шт.

29

625507C1

JAM NUT

M10

1шт.

30

3079171R91

BRUSH SET

carbon

1шт.

31

3079555R91

PACKAGE

PARTS small, for armature (1 set)

1шт.
