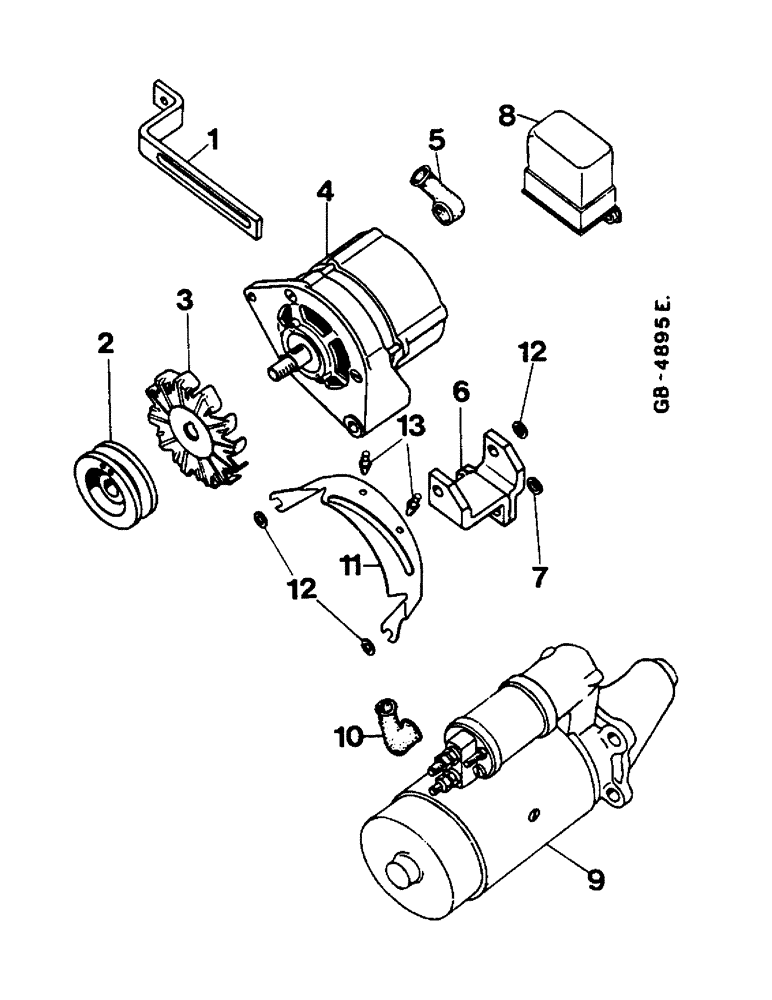

Запчасти Case IH 744 (2C21) - STARTING MOTOR, ALTERNATOR (06) - ELECTRICAL

1

3138948R1

SUPPORT

BRACE alternator

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

2

3138943R1

PULLEY

V-belt

1шт.

3

3138944R1

FAN BLADE

pulley

1шт.

932833R1

LOCK PIN,M13 x 18, Slotted

1шт.

4

NSS

NOT SOLD SEPARAT

ALTERNATOR, see Figure: 2D3 and 2D5

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

BOLT, 5/16" x 83 mm

1шт.

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

5

3052809R1

PLUG

BOOT rubber, alternator

2шт.

6

3218489R1

BRACKET

alternator, 644 (072089-) E, 744 (556420-) E, 844 (016757-) E, 844S (017866-) E

1шт.

6

3218490R91

BRACKET

with fastening parts, 644 (072089-) E, 744 (556420-) E, 844 (016757-) E, 844S (017866-) E

1шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

425-105

NUT,5/16"-18, G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

7

95-81069

WASHER,0.34" ID x 0.75" OD x 0.07" Thk

9 x 19 x 1.5 mm

1шт.

7

3051771R1

WASHER

8.5 x 13 x 1.5 mm

1шт.

8

8003/00265

GOVERNOR

REGULATOR alternator, (-xxx)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

2шт.

425-104

NUT,1/4"-20, Cl 5

2шт.

9

NSS

NOT SOLD SEPARAT

STARTER, see Figure: 2C23, 2D1

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

10

3055196R2

BOOT

rubber, starter

1шт.

11

3138949R2

SHIELD

protection

1шт.

12

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

3шт.

13

3218762R1

DAMPER

BUFFER rubber

2шт.
