Запчасти Case IH 744 (2C11) - CABLES (06) - ELECTRICAL

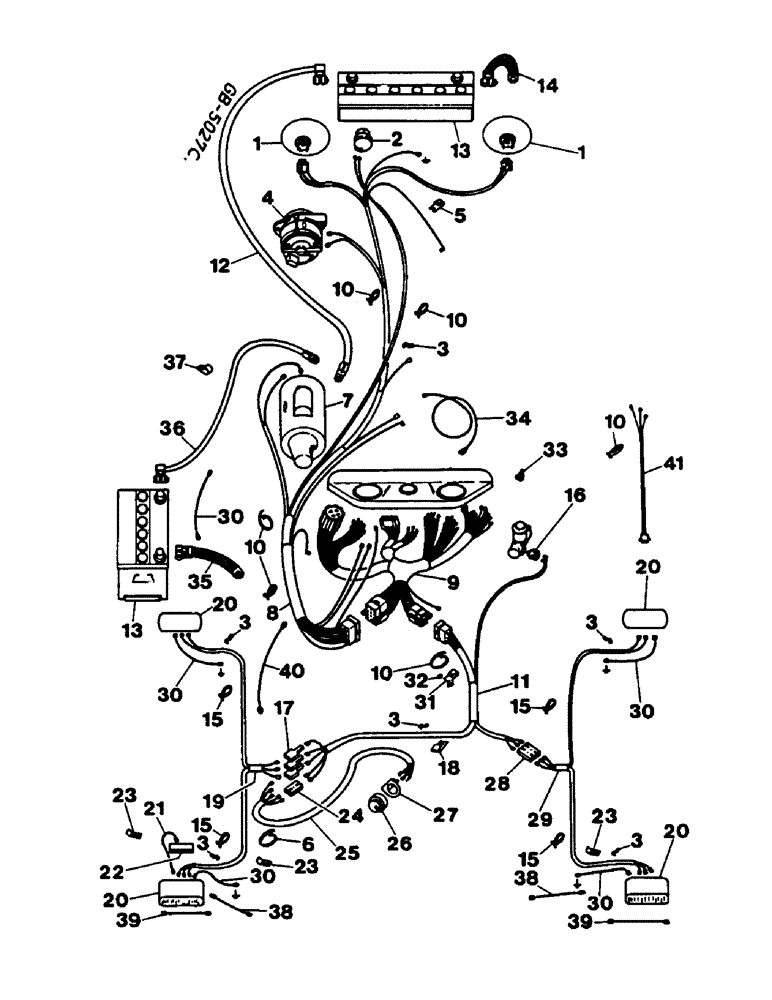

Схема запчастей Case IH 744 - (2C11) - CABLES (06) - ELECTRICAL
30
28
21
31
8
3
10
35
36
5
22
10
20
3
26
30
3
32
3
9
38
23
15
27
30
19
40
3
41
18
15
15
29
11
23
34
1
10
2
10
16
20
4
33
24
15
39
38
7
12
17
3
39
14
20
20
37
30
23
6
10
13
13
25
30
1

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

LIGHT head, see Figure: 2D7

2шт.

2

3057542R91

HORN

"Bosch"

1шт.

2

3057542R91

HORN

"Mixo"

1шт.

2

3057542R91

HORN

"Seima"

1шт.

3147286R1

SUPPORT

for "Mixo"

1шт.

3147286R1

SUPPORT

for "Seima"

1шт.

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

3

711732R1

CLIP

SPARE PART cable

1шт.

4

NSS

NOT SOLD SEPARAT

ALTERNATOR, see Figure: 2C21

1шт.

5

3229710R1

CLIP

cable

2шт.

6

3148767R2

COLLAR CLAMP

STRAP cable, 200 mm

1шт.

7

NSS

NOT SOLD SEPARAT

STARTER, see Figure: 2C21 and 2D1

1шт.

8

3145109R1

HARNESS

front, for alternator w/o regulator

1шт.

8

3220447R3

HARNESS

front, with regulator

1шт.

9

3145609R3

CABLE

version with warning and flasher unit

1шт.

9

3145610R3

CABLE

version w/o flasher unit

1шт.

10

S1436941

MOUNTING CLIP

STRAP cable, 92 mm

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP cable, 280 mm

1шт.

10

3148767R2

COLLAR CLAMP

STRAP cable, 142 mm

1шт.

11

3145603R2

HARNESS

CABLE rear, version with flasher unit and brake light, for 644

1шт.

11

3145615R2

HARNESS

CABLE rear, version with flasher unit and brake light, for 744/844/844S

1шт.

11

3145599R2

HARNESS

CABLE rear, version with flasher unit (w/o brake light)

1шт.

11

3145604R2

HARNESS

CABLE rear, version w/o flasher unit and w/o brake light

1шт.

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

12

3145123R92

CABLE

starting motor

1шт.

3224854R1

HOSE

cable

1шт.

13

NSS

NOT SOLD SEPARAT

BATTERY, see Figure: 2C19

1шт.

14

3148449R1

CABLE

ground, 200 mm

1шт.

14

718090R91

CABLE,330mm L

ground, 330 mm (for France)

1шт.

3217142R1

WASHER

lock, 10.5 mm

1шт.

15

3217857R1

STRAP

cable, 250 mm

1шт.

16

3401400R1

LIGHT SWITCH

stop light, if so equipped, for 644

1шт.

16

3145937R1

LIGHT SWITCH

stop light, if so equipped, 744/844/844S

1шт.

17

3057563R91

TERMINAL CONNECTOR

DISTRIBUTOR wire, 2 pole

1шт.

18

3141116R1

CLAMP

1шт.

19

3220683R2

HARNESS

CABLE version with tail light, flasher and brake light

1шт.

19

3221431R1

CABLE

on units with cab 2000

1шт.

19

3145605R2

CABLE

version for tail light, flasher and brake light Italy

1шт.

19

3145600R1

CABLE

version with tail and flasher light

1шт.

19

3141114R2

CABLE

version with tail and position lights only

1шт.

20

NSS

NOT SOLD SEPARAT

LAMP flash and tail light, see Figure: 2D15

1шт.

21

3145611R1

CABLE

for number plate lamp

1шт.

22

NSS

NOT SOLD SEPARAT

LAMP number plate, see Figure: 2D15

1шт.

23

3217492R1

CLAMP

CLIP cable

1шт.

24

3056310R91

CONNECTOR, ELEC

CONNECTOR SOCKET, 1 pole

1шт.

24

3054787R91

CONNECTOR, ELEC

CONNECTOR SOCKET, 2 pole

1шт.

25

3145607R2

CABLE

version with tail light, flasher and brake light

1шт.

25

3145602R1

HARNESS

CABLE version with tail and flasher light

1шт.

25

3216065R1

CABLE for, semi-crown fenders

1шт.

25

3145608R2

CABLE

version with tail and position lights only

1шт.

26

3142496R1

SOCKET/RECEPTACLE,A7

plug, 3057544R91 + 3057545R92 + 3057546R91

1шт.

931858R1

SCREW,M5 x 0.8 x 35mm, Cl 5.8

BOLT, Nr. 10 x 38 mm

3шт.

225-14110

NUT,#10-24

3шт.

492-11010

LOCK WASHER,#10

3шт.

3131909R1

CAP

plug socket

1шт.

3058125R91

CABLE

ground

1шт.

27

3145454R1

SUPPORT

plug socket

1шт.

28

3141105R1

CONNECTOR, ELEC

CONNECTOR SOCKET, 3 pole

1шт.

29

3220684R2

HARNESS

CABLE version with tail light, flasher and brake light

1шт.

29

3221432R1

CABLE

on units with cab 2000

1шт.

29

3145606R2

CABLE

version for tail light, flasher and brake light Italy

1шт.

29

3145601R1

CABLE

version with tail and flasher light

1шт.

29

3141113R2

CABLE

version with tail and position lights only

1шт.

30

1275234C1

CABLE

ground

4шт.

Only in connection with lamps from "ULO"

1шт.

31

3229712R1

CLIP

CLAMP

1шт.

32

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

1шт.

33

3145710R1

SPADE TERMINAL

1шт.

34

3223938R1

CABLE

safety start relay - starting switch, 644 (010935-) C, 744 (009507-) C, 844 (005400-) C, 844S (011574-) C

1шт.

34

1275234C1

CABLE

start safety switch - relay, 644 (010935-) C, 744 (009507-) C, 844 (005400-) C, 844S (011574-) C

1шт.

34

1275234C1

CABLE

start safety switch - ground, 644 (010935-) C, 744 (009507-) C, 844 (005400-) C, 844S (011574-) C

1шт.

34

3146361R1

CABLE PULLING GRIP

version with start safety switch, 644 (-010934) C, 744 (-009506) C, 844 (-005399) C, 844S (-011573) C

1шт.

35

3140065R1

CABLE

ground

1шт.

On units with cab 2000

1шт.

36

3224404R2

CABLE

starting motor

1шт.

On units with cab 2000

1шт.

37

702093C1

CABLE TIE

CABLE STRAP CLIP

1шт.

38

3221433R1

CABLE

ground

2шт.

On units with cab 2000

1шт.

931339R1

SCREW,Slotted Cheese, M4 x 0.7 x 16mm, Cl 8.8

BOLT, M4 x 15 mm

4шт.

933824R1

THIN NUT,Thin, M4 x .5, Cl 04

4шт.

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

4шт.

39

3221434R1

CABLE

, Serial Range: bulb-bulb

2шт.

On units with cab 2000

1шт.

40

3223468R1

CABLE ground, cab - chassis

1шт.

On units with cab 2000

1шт.

41

3221438R1

CABLE

cab connection

1шт.

Выбрано товаров: 89
