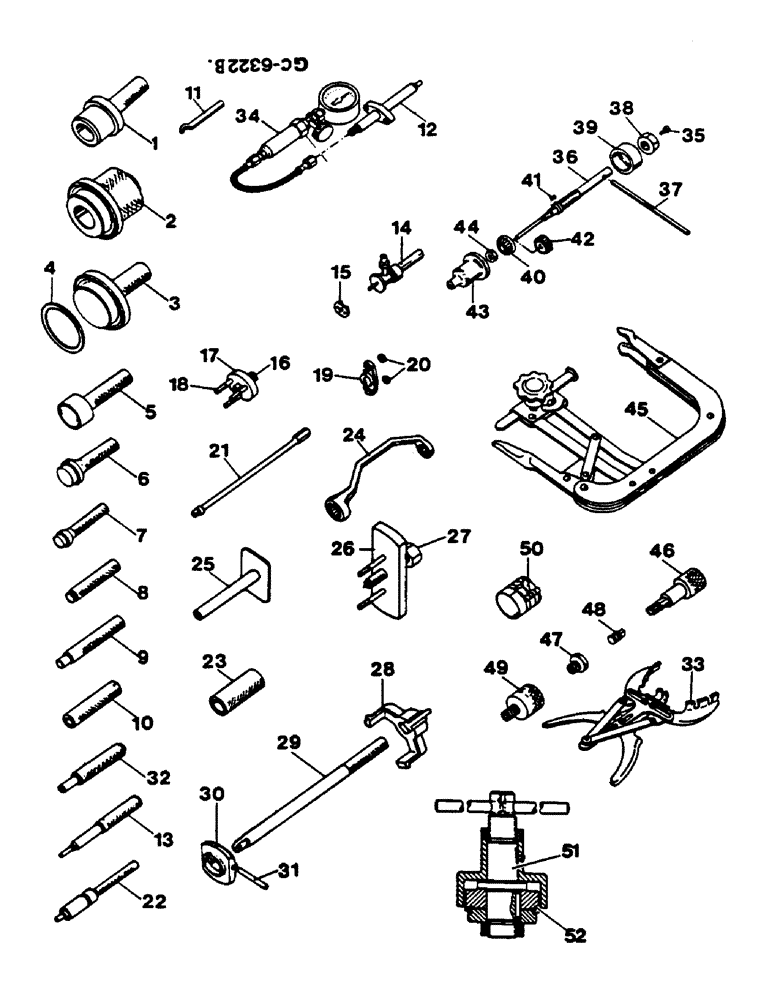

Запчасти Case IH 744 (1B01) - SERVICE TOOLS FOR ENGINE Accessories & Attachments / Miscellaneous

3055714R97

TOOL

service, set, with

1шт.

3132743R95

TOOL KIT

service, set, with

1шт.

1

3228342R1

TOOL

PUNCH drift, for crankshaft front oil seal (with crankcase front cover removed)

1шт.

2

3228341R1

PUNCH

drift, for crankshaft front oil seal (with crankcase front cover in place)

1шт.

3

3055687R11

TOOL

PUNCH drift, for oil seal 3055310R91 / 3138701R91

1шт.

3

3136974R21

TOOL

PUNCH drift, for oil seal 3136973R92

1шт.

Not part of tool set, order separately

1шт.

4

3055709R1

DISC

SHIM, 1.6 mm (.063") for punch drift 3055687R11

1шт.

4

3055709R1

DISC

SHIM, 3.2 mm (.126") for punch drift 3055687R11

2шт.

4

3136976R1

SHIM

2.0 mm (.080") for punch drift 3136974R11

1шт.

Not part of tool set, order separately

1шт.

4

3136977R1

SHIM

4.0 mm (.160") for punch drift 3136974R11

1шт.

Not part of tool set, order separately

1шт.

5

3055688R11

TOOL

PUNCH drift, for expansion plug 172602 / 172604, part of P/N 3055714R96

1шт.

6

3055694R1

TOOL

PUNCH drift, for U-plug 933574R1 / 934003R1, part of P/N 3055714R96

1шт.

7

3055695R1

TOOL

PUNCH drift, for U-plug 933573R1 / 933750R1, part of P/N 3055714R96

1шт.

7

3055698R1

TOOL

PUNCH drift, for valve insert 3055219R1 / 3132362R1, part of P/N 3055714R96

1шт.

8

3055684R1

TOOL

PUNCH drift, for U-plug 933537R1, part of P/N 3055714R96

1шт.

8

3055703R1

TOOL

PUNCH drift, for roller bearing 3055294R91, part of P/N 3055714R96

1шт.

9

3055679R1

TOOL

PUNCH drift, for piston pin, part of P/N 3055714R96

1шт.

10

3055699R1

TOOL

PUNCH drift, for valve guide 3055022R1, part of P/N 3055714R96

1шт.

11

3055706R1

TOOL

WRENCH hook

1шт.

12

3055712R11

ADAPTER

compression gauge

1шт.

13

3055696R1

TOOL

PUNCH drift, for nozzle holder sleeve 3055344R1

1шт.

13

3132005R1

TOOL

PUNCH drift, nozzle holder sleeve 3055406R1, parts are not included in the tool sets

1шт.

13

3136223R1

TOOL

PUNCH drift, for nozzle holder sleeve 3132025R1

1шт.

14

3144778R3

ELECTRICAL GAUGE

for timing advance and charging pump pressure, injection pump "CR"

1шт.

15

3218090R1

FLANGE

SPARE PART part of P/N 3055714R96

1шт.

16

2700159R1

SCREW

SPINDLE pressure, M14 x 35 mm, Includes: Ref. 17 and 18

1шт.

17

2711375R1

PLATE

puller

1шт.

18

2711376R1

BOLT

5/16" x 44 mm

3шт.

732-2016

COTTER PIN,M2 x 16

3шт.

19

3132000R91

TOOL

WINDOW engine timing, for pump "BR", part of P/N 3055714R96, Includes: Ref. 19 and 20

1шт.

19

3132000R91

TOOL

WINDOW engine timing, for pump "BR", part of P/N 3055714R96

1шт.

3132002R1

BOLT,Fillister

SPARE PART special, M6 x 15 mm, part of P/N 3055714R96

2шт.

20

3079021R1

WASHER

part of P/N 3055714R96

2шт.

21

3055700R1

TOOL

EXTENSION

1шт.

22

3132007R1

PLUG

SPARE PART GAUGE nozzle, holder sleeve, part of P/N 3055714R96

1шт.

23

3055702R1

BUSHING

installing, for packing 3055282R91 / 3055285R92

1шт.

24

3055794R2

TOOL

WRENCH special, 19 mm cranked, for cylinder head nut

1шт.

24

3055795R2

TOOL

WRENCH special 13/16" cranked, for cylinder head bolt

1шт.

25

3055704R11

BRACKET

PIPE spring compression

1шт.

26

3055707R91

TOOL

PULLER crankshaft pulley, part of P/N 3055714R96, Includes: Ref. 26 and 27

1шт.

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Part of P/N 3055714R96

2шт.

413-530

BOLT,Hex, 5/16" - 18 x 1-7/8", Gr 5

part of P/N 3055714R96

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Part of P/N 3055714R96

2шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Part of P/N 3055714R96

2шт.

26

3055707R91

TOOL

PLATE puller, part of P/N 3055714R96

1шт.

27

3055707R91

TOOL

SPINDLE pressure, 7/8" x 127 mm, part of P/N 3055714R96

1шт.

28

NSS

NOT SOLD SEPARAT

PULLER cylinder sleeve, Includes: Ref. 28 - 31

1шт.

28

3055691R1

TOOL

TRIPOD

1шт.

29

3055690R1

SPINDLE

1шт.

272245

GASKET

1"

1шт.

30

3055693R1

PLATE

1шт.

NLS

NO LONGER SERVICED

1/4" x 10 mm

1шт.

31

2700167R1

PIN

joint

1шт.

32

3132006R1

GUIDE

SPARE PART PILOT drift, punch 3132005R1, part of P/N 3055714R96

1шт.

33

2712136R91

EXPANDER

piston ring, parts are not included in the tool sets

1шт.

34

2712141R91

GAUGE

SPARE PART compression, parts are not included in the tool sets

1шт.

35

3132120R91

TOOL KIT

SPARE PART exhaust valve seat, parts are not included in the tool sets, Includes: Ref. 35 - 44

1шт.

35

3144756R91

TOOL

intake valve seat, only for engine DT 239, DT 358, DT 402, parts are not included in the tool sets

1шт.

35

426816

SCREW,Hex Soc Hd, 1/4"-20 x 3/4"

parts are not included in the tool sets

1шт.

36

3132357R1

SHAFT

reamer, parts are not included in the tool sets

1шт.

37

3132356R1

REAMER

ROD shaft, parts are not included in the tool sets

1шт.

38

219755

BACK-UP RING

parts are not included in the tool sets

1шт.

39

3132355R1

SPACER

STOP, parts are not included in the tool sets

1шт.

40

3132363R1

CUTTER

REAMER tapered, 45 deg., parts are not included in the tool sets

1шт.

40

3144760R1

TOOL

REAMER tapered, 45 deg., parts are not included in the tool sets

1шт.

For intake valve seat

1шт.

41

932666R1

KEY

parts are not included in the tool sets

1шт.

42

3132359R1

TOOL

REAMER cylindrical, .006" oversized, parts are not included in the tool sets

1шт.

42

3144757R1

REAMER

cylindrical, 0.15 mm (.006"), parts are not included in the tool sets

1шт.

For intake valve seat

1шт.

42

3132358R1

REAMER

cylindrical, 0.40 mm (.016"), parts are not included in the tool sets

1шт.

42

3144758R1

TOOL

REAMER cylindrical, 0.40 mm (.016"), parts are not included in the tool sets

1шт.

For intake valve seat

1шт.

43

3132360R1

BUSHING

adjuster, parts are not included in the tool sets

1шт.

43

3144759R1

TOOL

BUSHING adjuster, parts are not included in the tool sets

1шт.

For intake valve seat

1шт.

44

329-1410

JAM NUT,Jam, 5/8"-11, G8

Parts are not included in the tool sets

1шт.

45

2712138R91

COMPRESSOR

SPARE PART valve spring, parts are not included in the tool sets

1шт.

46

3132291R1

TOOL

SPARE PART SOCKET screw, balance weight (crankshaft), parts are not included in the tool sets

1шт.

47

3146564R1

UNION

CONNECTOR vacuum-test, parts are not included in the tool sets

1шт.

48

445684

PLUG

1/8", parts are not included in the tool sets

1шт.

49

3144585R1

CONNECTOR, ELEC

CONNECTOR for test point on fuel filter, parts are not included in the tool sets

1шт.

50

2712139R91

TOOL

SPARE PART COMPRESSOR piston ring, parts are not included in the tool sets

1шт.

51

3218536R91

REAMER

SPARE PART TOOL for rework, of cylinder sleeves seat, parts are not included in the tool sets

1шт.

52

3218537R1

CUTTER

SPARE PART parts are not included in the tool sets

1шт.
