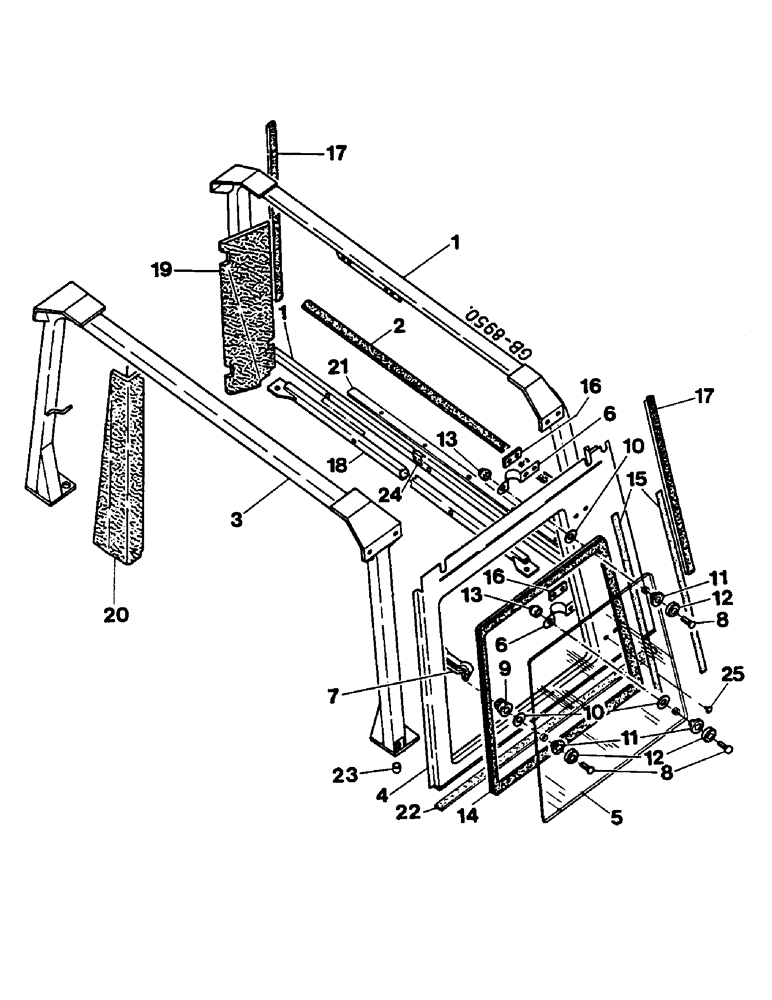

Запчасти Case IH 744 (3F07) - CAB, CENTRAL FRAME, SIDE FRAMES (05) - SUPERSTRUCTURE

1

3221502R91

FRAME

rear, with: 2

1шт.

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

3шт.

931656R1

BOLT,Hex, M14 x 2 x 50mm, Cl 8.8

2шт.

905265R1

NUT,M6 x 1, Cl 8

M8

3шт.

934675R1

WASHER,M8 x 16 x 1.6

3шт.

934875R1

WASHER

14 mm, "0"

2шт.

3221592R1

CAP

8 mm

3шт.

3221607R1

CAP

14 mm

2шт.

2

3223746R1

SEAL

SEAL bulk, 50 m

1шт.

3

3221503R91

FRAME

central

1шт.

934874R1

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

934943R1

BOLT,Hex, M14 x 2 x 70mm, Cl 8.8

2шт.

934875R1

WASHER

2шт.

3221607R1

CAP

4шт.

4

3224510R91

SIDE ASSY.

FRAME, LH

1шт.

4

3221508R91

FRAME ASSY

SPARE PART side, with: 5 - 17 and 22

1шт.

4

3224509R91

SIDE ASSY.

FRAME, RH

1шт.

4

3221509R91

FRAME ASSY

side, with: 5 - 17 and 22

1шт.

5

3223775R1

GLASS

LH

1шт.

5

3223776R1

GLASS

RH

1шт.

6

3223782R1

SPRING

hinge, RH

2шт.

6

3223781R1

SPRING

hinge, LH

2шт.

905160R1

CARRIAGE BOLT,Sq Nk, M8 x 20mm, Cl 4.6

BOLT, M8 x 20 mm

8шт.

905268R1

NUT,M8 x 1.25, Cl 8

8шт.

7

3223788R1

WINDOW STAY

PROP venting, LH

1шт.

7

3223789R1

WINDOW STAY

PROP venting, RH

1шт.

8

905159R1

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT, M8 x 25 mm

6шт.

934286R1

THIN NUT,M8 x 1.25, Thin

4шт.

9

3221548R1

BEARING HOUSING

2шт.

934884R1

HEADED PIN,M8 x 28

headed

2шт.

3221573R1

FASTENER

2шт.

10

3221544R1

RUBBER WASHER,8.5mm ID x 39mm OD x 2mm Thk

seal

6шт.

11

3221543R1

SPACER,10.2mm ID x 36mm OD x 10mm L

seal

6шт.

12

3226083R1

WASHER

6шт.

13

3221592R1

CAP

4шт.

14

3221574R1

SEAL

SEAL bulk, 50 m

1шт.

15

3223779R1

ORNAMENTAL STRIP

STRAP mat-silver

4шт.

16

3223783R1

PLATE

SPARE PART

4шт.

17

3223746R1

SEAL

SEAL bulk, 50 m

1шт.

18

3223699R1

BRACKET

rear frame

1шт.

931312R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

934514R1

WASHER,M11

2шт.

3221520R1

CAP

2шт.

19

3221514R1

COVER

RH black

1шт.

19

3225924R1

SHROUD ASSY.

SPARE PART COVERING, RH (beige)

1шт.

19

3221513R1

COVER

LH black

1шт.

19

3225923R1

SHROUD ASSY.

COVERING, LH (beige)

1шт.

20

3221512R1

SHEET

COVERING central frame, RH black

1шт.

20

3225922R1

COVER

central frame, RH (beige)

1шт.

20

3221511R1

PAD

COVERING central frame, LH black

1шт.

20

3225921R1

COVER

SPARE PART central frame, LH (beige)

1шт.

931291R1

SELF-TAP SCREW,Oval Hd, M3.5 x 16

1шт.

3221603R1

PLUG

1шт.

21

3223700R1

CHANNEL

SPARE PART U

1шт.

22

3223745R1

STRIP-GASKET

PAD insulating, bulk 48 m

1шт.

23

3223100R1

SPACER

2шт.

24

3229196R1

ANGLE

1шт.

3225053R1

SCREW

BOLT, M6 x 16 mm

2шт.

25

3225157R1

CAP

8шт.
