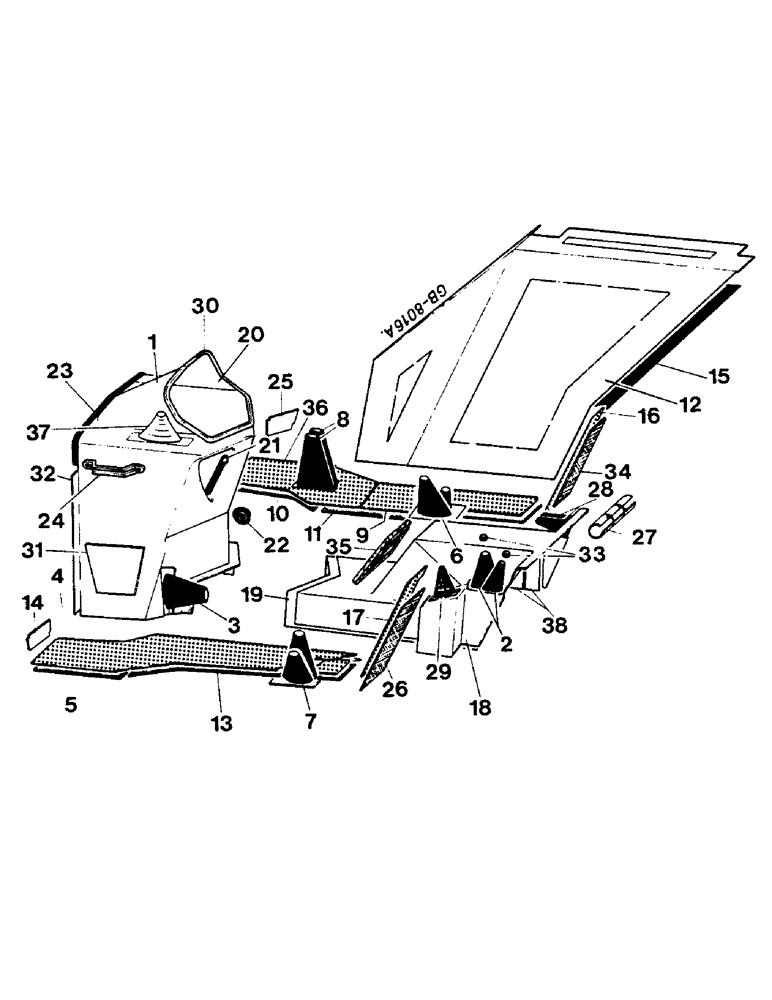

Запчасти Case IH 744 (3E06) - OPERATORS COMPARTMENT COVERING, FOR UNITS WITH CAB 2000 FOR SCANDINAVIA (05) - SUPERSTRUCTURE

1

3225124R91

COVER

instrument panel support, with: 3, 20 - 24, 30 - 32 and 37

1шт.

2

3229349R2

BOOT

1шт.

3

3225723R1

SEAL SHEET

BOOT clutch pedal

1шт.

3223701R1

RIVET

3 x 10 mm

7шт.

3223846R1

WASHER

spring

7шт.

4

3226213R3

MAT

floor, LH (xxx-)

1шт.

4

3221834R1

MAT floor, LH (-xxx)

1шт.

5

3225107R1

COVERING, LH platform, front (-xxx)

1шт.

6

3225101R1

BOOT differential lock, pto

1шт.

7

3225102R1

BOOT four-wheel drive lever, and hand brake lever, cab No. (-3924034)

1шт.

7

3225981R1

BOOT

four-wheel drive lever, and hand brake lever, cab No. (3924035-)

1шт.

8

3223712R2

BOOT

brake pedals

1шт.

3223701R1

RIVET

3 x 10 mm

9шт.

9

3230672R1

MAT

floor, RH, rear (xxx-)

1шт.

9

3221832R2

FLOOR MAT

RH, rear (-xxx)

1шт.

10

3225109R1

COVERING, RH platform, front (-xxx)

1шт.

11

3225108R1

COVERING, RH platform, center (-xxx)

1шт.

12

3221830R1

COWL

COVERING, LH fender, cab No. (-3924034)

1шт.

12

3225969R1

COWL

COVERING, LH fender, cab No. (3924035-)

1шт.

12

3221831R1

COWL

COVERING, RH fender, cab No. (-3924034)

1шт.

12

3225970R1

COVER

LH fender, cab No. (3924035-)

1шт.

13

3225110R1

COVERING, LH platform, center (-xxx)

1шт.

14

3225111R1

COVERING front, LH (-xxx)

1шт.

15

3221828R1

COVERING fender, rear inside

2шт.

16

3223710R1

MAT

floor, RH rear, inner (-xxx)

1шт.

17

3223711R1

MAT

floor, LH rear, inner (-xxx)

1шт.

18

3225116R94

PROTECTIVE COVER

transmission housing, with: 2, 19, 28, 29, 35 and 38

1шт.

3223701R1

RIVET

3 x 10 mm

1шт.

3223846R1

WASHER

spring

1шт.

19

3224312R1

COVER transmission housing, inner

1шт.

20

3225727R1

COVERING instrument panel, inner

1шт.

20

3225724R1

COVERING instrument panel, front

1шт.

20

3225726R1

COVERING instrument panel, LH

1шт.

20

3225725R1

COVERING instrument panel, RH

1шт.

21

3224301R1

COVER

SPARE PART throttle

1шт.

22

3225733R1

COVER

accelerator pedal

1шт.

23

3225729R1

SEAL

SPARE PART

1шт.

24

3145327R1

HANDLE

1шт.

934966R1

SCREW,M6 x 20mm

BOLT, M6 x 20 mm

4шт.

905265R1

NUT,M6 x 1, Cl 8

4шт.

934948R1

WASHER,M6

4шт.

25

3225112R1

COVERING front, RH (-xxx)

1шт.

26

3225122R1

MAT floor, LH rear, outer (-xxx)

1шт.

27

3225105R1

COVERING, control shaft bearing: 3057479R3

1шт.

3225106R1

STRAP cable

2шт.

28

3229590R1

BOOT

1шт.

29

3229349R2

BOOT

1шт.

3226309R1

SHEET insulating

1шт.

30

3225723R1

SEAL SHEET

1шт.

31

3225252R1

INSULATOR

SHEET

1шт.

32

3225209R1

ANGLE, LH

1шт.

32

3225208R1

ANGLE, RH

1шт.

931105R1

HEX SOC SCREW,M8 x 25mm, Cl 8.8

BOLT, M6 x 20 mm

4шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

33

3223612R1

GROMMET

2шт.

34

3225123R1

MAT floor, RH rear (-xxx)

1шт.

35

3226306R1

COVER

1шт.

3229352R1

BOLT, M4 x 16 mm

2шт.

905179R1

NUT,M4 x .7, Cl 8

2шт.

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

2шт.

3226307R1

HOLDER

1шт.

3217585R1

RIVET

3.2 x 10 mm

2шт.

3225252R1

INSULATOR

SHEET

1шт.

36

3230673R1

MAT

floor, RH, front, 3221832R2

1шт.

37

3225728R1

BOOT

clutch lever

1шт.

38

3226308R1

COVERING for segment: 3145246R92

1шт.
