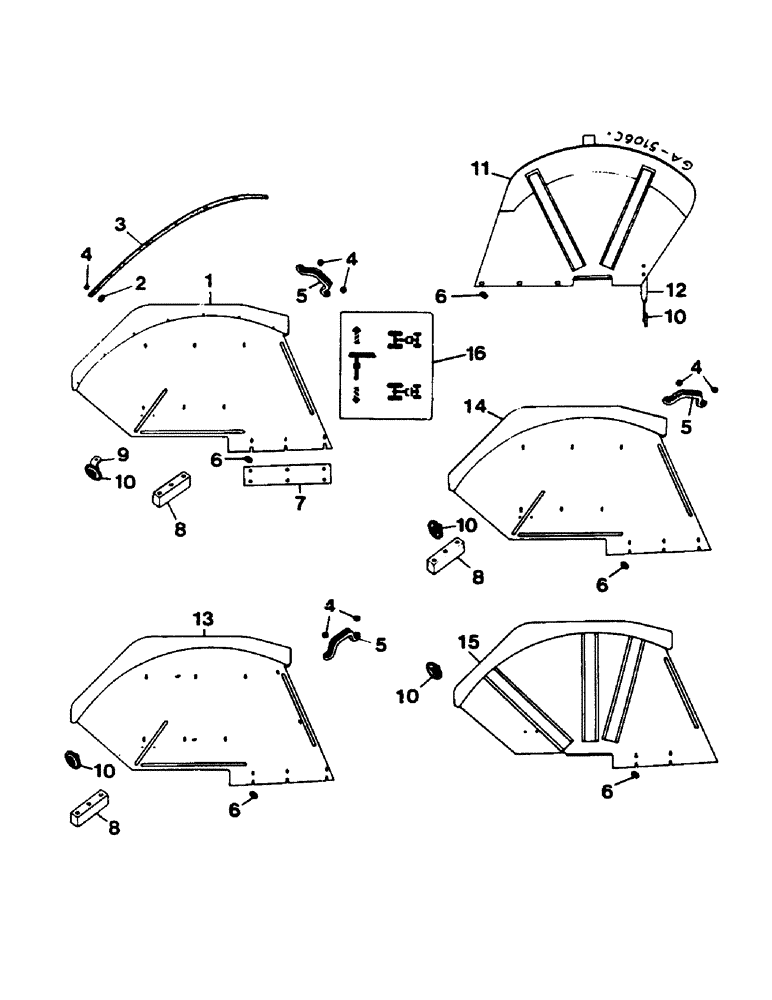

Запчасти Case IH 744 (3D12) - REAR FENDERS, REFLECTOR (05) - SUPERSTRUCTURE

1

3145310R93

FENDER

used avec safety frame, LH

1шт.

1

3145311R93

FENDER

used avec safety frame, RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

931655R1

CARRIAGE BOLT,Round, M10 x 40mm, Class 8.8

12шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

12шт.

934280R1

SQ HOLE WASHER,M11

12шт.

2

3216737R1

WASHER

RING plastic

14шт.

3

3147909R1

PROTECTIVE COVER

SHROUD rubber

2шт.

470-12516

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

14шт.

425-104

NUT,1/4"-20, Cl 5

14шт.

4

495-11028

WASHER,1/4", SAE

1шт.

5

3145327R1

HANDLE

1шт.

470-12516

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

4шт.

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

4шт.

425-104

NUT,1/4"-20, Cl 5

4шт.

6

611346R1

WASHER

1шт.

7

3141794R1

SPACER

1шт.

8

3141793R2

SPACER

1шт.

413-1092

SCREW,Hex, 5/8" - 11 x 5 3/4", Gr 5

8шт.

22297R1

BOLT

5/8" x 95 mm

8шт.

223442

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

12шт.

92-11062

LOCK WASHER,5/8"

8шт.

9

3147729R1

ANGLE

2шт.

10

3131910R1

REFLECTOR

80 mm "0"

2шт.

10

787471R91

REFLECTOR

59 mm "0"

2шт.

10

3118665R2

REFLECTOR

59 mm "0"

2шт.

3079011R1

SCREW

BOLT, M6 x 14 mm

2шт.

892-11006

LOCK WASHER,M6

2шт.

825-1406

NUT,M6, Cl 8

2шт.

11

3145337R91

FENDER

SPARE PART semi-crown, LH

1шт.

11

3145338R91

FENDER

SPARE PART semi-crown, RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

92-11062

LOCK WASHER,5/8"

8шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

12

3140204R91

HEADLAMP

HOLDER, reflector, for semi-crown fender

2шт.

470-12512

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1шт.

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

13

3148686R91

FENDER

French version, LH

1шт.

13

3148687R91

FENDER

SPARE PART French version, RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

113-2401

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

8шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8" x 32 mm

4шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

92-11062

LOCK WASHER,5/8"

8шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

425-108

NUT,1/2" - 13, Gr 5

1шт.

27927DA

WASHER

1шт.

14

3145310R93

FENDER

French version, used with co-driver seat, LH

1шт.

14

3145311R93

FENDER

French version, used with co-driver seat, RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

12шт.

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

27927DA

WASHER

12шт.

15

3145328R91

FENDER

SPARE PART LH

1шт.

15

3145329R91

FENDER

SPARE PART RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

223442

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

12шт.

92-11062

LOCK WASHER,5/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

16

1091456R2

PRODUCT GRAPHIC

DECAL, four-wheel drive instruction

1шт.
