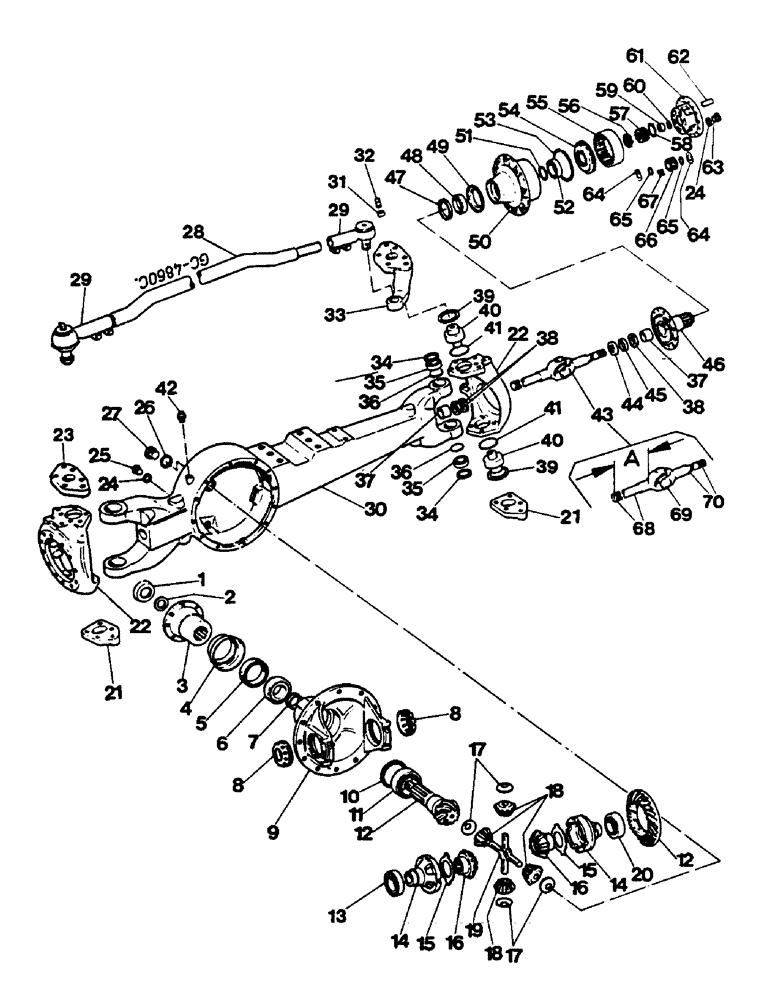

Запчасти Case IH 744 (2C04) - FRONT AXLE APL-3052 (04) - Drive Train

1

3146651R1

PLATE, LOCKING

SHEET

1шт.

2

3146650R1

WASHER

1шт.

3

3146653R1

FLANGE

drive

1шт.

3223426R1

SCREW

M8 (xxx-)

8шт.

3223425R1

LOCK NUT

M8 (xxx-)

8шт.

931202R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

(-xxx)

8шт.

934540R1

NUT,M8 x 1.25, Cl 8

(-xxx)

8шт.

32-512

COTTER PIN,5/64" x 3/4"

cotter, 3 x 20 mm (-xxx)

8шт.

4

3146654R1

SLINGER

SCAVENGER

1шт.

5

3146649R1

SEAL, oil

1шт.

6

406535R91

ROLLER BEARING,1.5005" ID x 3.251" OD x 1.1643, 0.9063"

1шт.

6

530745R1

BEARING, CUP

1шт.

7

3146647R1

OLIVE

BUSHING, Axle (-9269)

1шт.

7

3223200R1

RING

BUSHING, Axle (9270-)

1шт.

8

3134297R1

NUT

adjusting

2шт.

9

3146646R1

HOUSING

1шт.

931369R1

BOLT,Hex, M10 x 1.5 x 28mm, Cl 10.9, Full Thd

BOLT, M10 x 30 mm

7шт.

3229110R1

LOCK BOLT,M10 x 40

5шт.

932671R1

LOCK PIN,M6 x 30, Slotted

Cotter

2шт.

10

3134949R1

DISC

0.1 mm

1шт.

10

3134303R1

DISC

SHIM, 0.2 mm

1шт.

10

3134302R1

SHIM

0.3 mm

1шт.

10

3134301R1

SHIM

0.5 mm

1шт.

10

3224747R1

DISC

SHIM, 1.2 mm

1шт.

10

3224746R1

DISC

SHIM, 1.5 mm

1шт.

10

3224745R1

DISC

SHIM, 1.8 mm

1шт.

10

3224744R1

DISC

SHIM, 2.0 mm

1шт.

11

1-31-742-027

BEARING CONE

CONE bearing

1шт.

11

107577R1

BEARING, CUP

CUP

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT with, bevel gear, Order: 3221720R91 + 3223200R1, Axle (-9269)

1шт.

12

3221720R91

GEAR-SET

SHAFT with, bevel gear, Order: 3146655R91, Axle (9270-)

1шт.

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

931589R1

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

8шт.

934208R1

NUT

M26

1шт.

3146657R1

LOCK WASHER

WASHER

12шт.

13

659458R91

ROLLER BEARING

1шт.

13

1-31-742-023

BEARING CUP

CUP

1шт.

14

3146656R91

HOUSING

1шт.

15

3146661R1

THRUST WASHER

2шт.

16

3146658R1

GEAR

bevel, Order: 2 x 3221075R1 and 4 x 3134290R1

2шт.

17

3146662R1

THRUST WASHER

4шт.

18

3146659R1

GEAR

PINION bevel, Order: 2 x 3221075R1 and 4 x 3134290R1

4шт.

19

3146660R1

DIFF. SPIDER

1шт.

20

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

1шт.

20

105496H

BEARING CUP,97.63mm OD x 19.45mm W

CUP

1шт.

21

3147883R1

COVER

PLATE

2шт.

931643R1

HEX SOC SCREW,M14 x 35mm, Cl 8.8

8шт.

933801R91

LUBE NIPPLE,45 Degree, M8 x 1

2шт.

22

3230325R1

HOUSING

ball, joint, RH, 644 (-013431) C, 744 (-013443) C, 844 (-006179) C, 844S (-015793) C

1шт.

22

3230325R1

HOUSING

ball, joint, RH, 644 (013432-) C, 744 (01344-) C, 844 (006180-) C, 844S (0151794-) C

1шт.

22

3104138M1

HOUSING

ball, joint, LH, 644 (-013431) C, 744 (-013443) C, 844 (-006179) C, 844S (-015793) C

1шт.

22

3104138M1

HOUSING

ball, joint, LH, 644 (013432-) C, 744 (01344-) C, 844 (006180-) C, 844S (0151794-) C

1шт.

3134225R1

BOLT

BOLT, M12

4шт.

933698R1

NUT,M12 x 1.25, Cl 6

2шт.

934652R1

THIN NUT,Thin, M12 x 1.5, Cl 05

2шт.

932166R1

LOCK PIN,M10 x 50, Slotted

2шт.

932804R1

LOCK PIN,M16 x 50, Slotted

2шт.

23

3134220R1

COVER

644 (-013431) C, 744 (-013443) C, 844 (-006179) C, 844S (-015793) C

1шт.

23

3230900R1

COVER

644 (013432-) C, 744 (01344-) C, 844 (006180-) C, 844S (0151794-) C

1шт.

931643R1

HEX SOC SCREW,M14 x 35mm, Cl 8.8

4шт.

931656R1

BOLT,Hex, M14 x 2 x 50mm, Cl 8.8

644 (013432-) C, 744 (01344-) C, 844 (006180-) C, 844S (0151794-) C

1шт.

712992R91

LUBE NIPPLE

1шт.

24

933709R1

PACKING RING

24 mm

3шт.

24

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

25

119349A1

PLUG

1шт.

26

933710R1

SEALING RING,M42 x 49 x 2

1шт.

27

933716R1

PLUG,Hex Soc, M42 x 1.5

1шт.

28

3140942R1

TIE-ROD

1шт.

28

3147030R91

TIE-ROD

with ball joints

1шт.

29

3146733R1

BALL JOINT

2шт.

30

3146677R1

FRONT AXLE

1шт.

30

3148568R91

AXLE with, differential and planetary drive, 644 (013432-) C, 744 (01344-) C, 844 (006180-) C, 844S (0151794-) C

1шт.

30

3230167R91

AXLE front, with differential and planetary drive, 644 (-013431) C, 744 (-013443) C, 844 (-006179) C, 844S (-015793) C

1шт.

31

3134224R1

BUSHING

2шт.

32

3134223R1

STUD

2шт.

933470R1

NUT,M14, Cl 8

2шт.

33

3147879R2

LEVER

Axle (-9269)

1шт.

33

3230326R1

LEVER

SPARE PART 644 (013432-) C, 744 (01344-) C, 844 (006180-) C, 844S (0151794-) C

1шт.

3404789R1

SCREW

BOLT, M14 x 50 mm (xxx-)

4шт.

931638R1

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

(-xxx)

4шт.

712992R91

LUBE NIPPLE

1шт.

34

3134217R1

CAP

seal

4шт.

35

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

4шт.

35

530741R1

BEARING CUP

CUP

4шт.

36

933085R1

PLUG,Exp, M52

expansion

4шт.

37

3146683R1

BUSHING

4шт.

38

3223861R2

SEAL

Order: 3223862R1

6шт.

39

3146700R1

SHIM

2.60 mm

1шт.

39

1390 410751

WASHER

SHIM, 2.70 mm

1шт.

39

3147889R1

SHIM

2.75 mm

1шт.

39

3146698R1

SHIM

2.80 mm

1шт.

39

3147888R1

SHIM

2.85 mm

1шт.

39

3146697R1

SHIM

2.90 mm

1шт.

39

3147887R1

SHIM

2.95 mm

1шт.

39

1390 410754

WASHER

SHIM, 3.00 mm

1шт.

39

3147886R1

SHIM

3.05 mm

1шт.

39

3084909M1

SHIM

3.10 mm

1шт.

39

3147885R1

SHIM

3.15 mm

1шт.

39

3146694R1

SHIM

3.20 mm

1шт.

39

3147884R1

SHIM

3.30 mm

1шт.

40

3146693R1

LARGE PIN

PIN, LARGE

4шт.

41

3146701R1

O-RING

4шт.

42

3222497R1

PLUG

898137H1

1шт.

42

1966149C2

BREATHER

1шт.

43

3146678R91

SHAFT

LH

1шт.

43

3146679R91

SHAFT

RH

1шт.

3224326R1

SPIDER ASSY.

2шт.

44

340626A1

SHEET

protection

2шт.

45

340628A1

FELT

SEAL

2шт.

46

3104361M91

CARRIER

hub

2шт.

931218R1

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

4шт.

931646R1

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

M16 x 35 mm

20шт.

47

3146686R91

OIL SEAL

oil

2шт.

48

529452R91

ROLLER BEARING

CONE

2шт.

48

529453R1

BEARING, CUP

CUP

2шт.

49

3146689R1

PROTECTOR

SCAVENGER

2шт.

50

3146688R1

HUB

wheel

2шт.

3230876R1

BOLT,Wheel, Serr, M18 x 1.5 x 61 mm

M18

16шт.

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

M18

16шт.

3230348R3

WASHER,18.75mm ID x 30.8mm OD x 7.75mm W

ball flange

16шт.

51

3225928R1

RETAINER

RING spacer, 5.20 mm

2шт.

51

3225927R1

SPACER

RING, 5.25 mm

1шт.

51

3146690R1

SPACER

RING, 5.30 mm

1шт.

51

3225926R1

SPACER

RING, 5.40 mm

1шт.

52

102161H

BEARING ASSY,68.262mm ID x 21.996mm

2шт.

52

29241H

SPARE PART CUP

2шт.

53

3146675R1

RING, SNAP

RING SNAP

2шт.

54

3146673R2

RING CARRIER

gear

2шт.

55

3146674R1

GEAR, RING

RING, GEAR

2шт.

56

3229142R1

NUT

adjusting

2шт.

57

3146672R1

GEAR

sun

2шт.

58

933804R1

SNAP RING,M38, Ext

CIRCLIP

2шт.

59

3134211R2

PLUG

KNOB thrust

2шт.

60

3146671R1

DISC

SHIM, 0.3 mm

1шт.

60

3146670R1

DISC

SHIM, 0.5 mm

1шт.

60

3146669R1

DISC

SHIM, 1.0 mm

1шт.

60

3222157R1

SHIM

SPARE PART 3.0 mm

1шт.

61

3146663R1

PINION CARRIER

GEAR CARRIER pinion, 644 (-013431) C, 744 (-013443) C, 844 (-006179) C, 844S (-015793) C

2шт.

61

3230327R1

PINION CARRIER

GEAR CARRIER pinion, 644 (013432-) C, 744 (01344-) C, 844 (006180-) C, 844S (0151794-) C

2шт.

934721R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

54шт.

932840R1

LOCK PIN,M8 x 26, Slotted

8шт.

932742R1

LOCK PIN,M5 x 26, Slotted

8шт.

933565R1

PLUG,M14, Conical

"U"

2шт.

62

3146664R1

SHAFT

6шт.

63

3084191M1

PLUG

M24

2шт.

63

934651R1

PLUG,Hex Soc, M18 x 1.5

2шт.

64

1295 420023

WASHER, THRUST

12шт.

65

1295 420024

WASHER

12шт.

66

3146665R1

GEAR

PINION

6шт.

67

3146666R2

NEEDLE

132шт.

68

3230388R1

SHAFT

LH, A = 350 mm

1шт.

68

3230387R1

SHAFT

RH, A = 794 mm

1шт.

69

3224326R1

SPIDER ASSY.

2шт.

70

3230386R1

SHORT SHAFT FORK

2шт.
