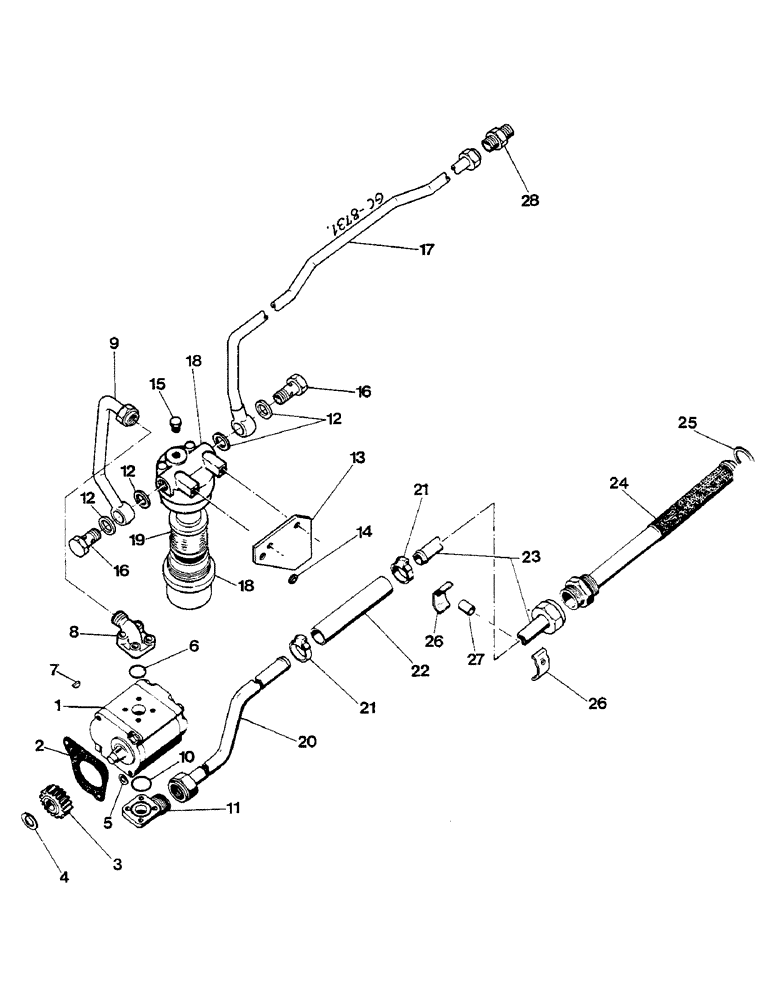

Запчасти Case IH 733 (10-40) - HYDRAULIC PUMP, OIL LINES, PRESSURE OIL FILTER - 733 (-XXX) - (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
PUMP, HYDRAULIC - SEE HYDRAULIC PUMP "BOSCH"
1шт.
3058427R1
STUD
3/8" X 120 MM
1шт.
20507R1
BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5
1шт.
933620R1
BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk
(3/8")
2шт.
21070R1
NUT,3/8"-16, G8
2шт.
2
3057397R3
GASKET
1шт.
3
3057396R1
GEAR
DRIVE - 20 TEETH
1шт.
4
NSS
NOT SOLD SEPARAT
WASHER, LOCK - SEE HYDRAULIC PUMP "BOSCH"
1шт.
5
20285H
WASHER
1шт.
6
3057400R1
O-RING,2.5mm Thk x 24mm ID, 70 Duro
1шт.
7
932618R1
WOODRUFF KEY,3mm x 5mm x 12.65mm
1шт.
8
3057399R1
FLANGE
CONNECTION, PRESSURE PIPE
1шт.
931119R1
HEX SOC SCREW,M6 x 33mm, Cl 8.8
2шт.
931118R1
HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8
2шт.
933825R1
LOCK WASHER,M6
4шт.
9
3226757R1
PRESSURE PIPE
SPARE PART PUMP - TO OIL FILTER
1шт.
10
3057401R1
O-RING,2.5mm Thk x 18mm ID, 70 Duro
1шт.
11
3057398R1
FLANGE
CONNECTION
1шт.
931118R1
HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8
4шт.
933825R1
LOCK WASHER,M6
4шт.
12
3051337R1
SEALING RING,M18 x 24mm OD x 1.5mm Thk
4шт.
13
3226759R1
SUPPORT
SPARE PART OIL FILTER
1шт.
930108R1
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd
2шт.
14
934066R1
WASHER
1шт.
15
FOR444613
PLUG
1шт.
16
930259R1
BANJO BOLT,M18 x 1 x 42mm
HOLLOW
2шт.
17
3226760R1
PRESSURE PIPE
SPARE PART OIL FILTER - DRAFT CONTROL VALVE
1шт.
18
3224668R91
FILTER
OIL CPTE. - WITH: 15, 19
1шт.
19
3224623R1
FILTER
INSERT
1шт.
20
3226758R1
SUCTION PIPE
SPARE PART
1шт.
21
3144978R1
CLAMP
2шт.
22
3148340R1
HYDRAULIC HOSE,22.00 mm ID x 100.00 mm
Connecting
1шт.
23
3148341R1
SUCTION PIPE
1шт.
24
3137937R92
STRAINER ASSY.
SUCTION
1шт.
25
933608R1
SEALING RING,M26 x 31 x 2
1шт.
26
3058038R1
CLAMP
2шт.
280112
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
1шт.
109084
NUT,1/4"-20, G5
1шт.
27
3148343R1
SPACER
1шт.
28
3131914R1
PORT
UNION
1шт.
Выбрано товаров: 43
