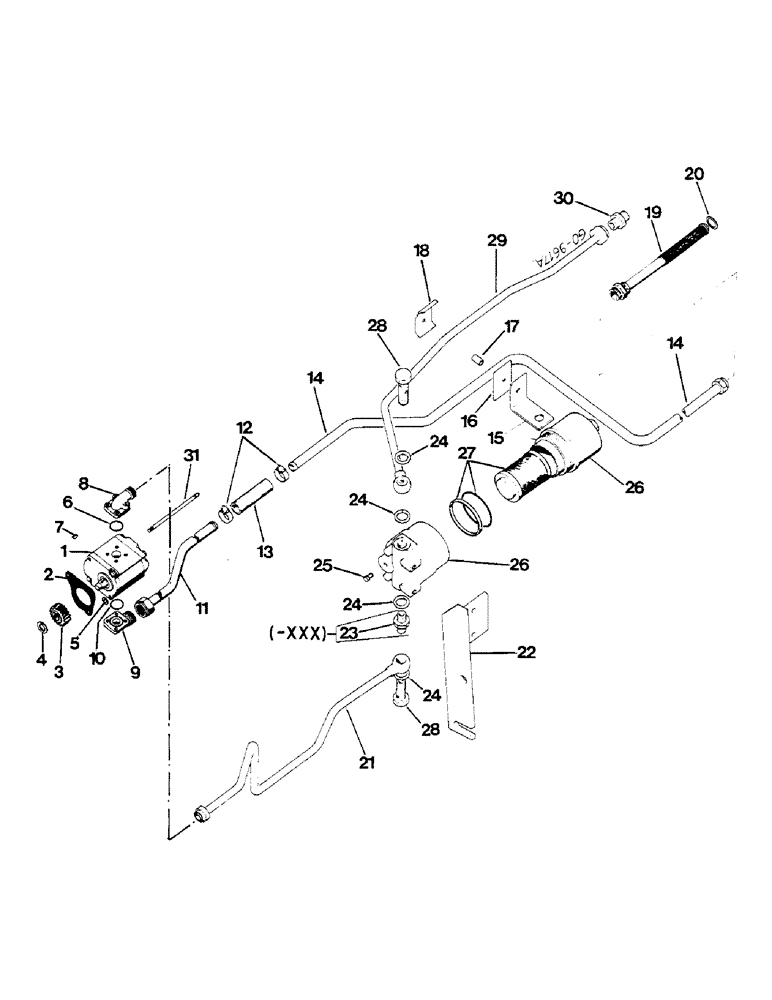

Запчасти Case IH 733 (10-37) - HYDRAULIC PUMP, OIL LINES, PRESSURE OIL FILTER - 733 (XXX-)/833 - (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

PUMP, HYDRAULIC - SEE HYDRAULIC PUMP "BOSCH"

1шт.

20507R1

BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5

1шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

1шт.

21070R1

NUT,3/8"-16, G8

2шт.

2

3057397R3

GASKET

1шт.

3

3057396R1

GEAR

DRIVE - 20 TEETH

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER, LOCK - SEE HYDRAULIC PUMP "BOSCH"

1шт.

5

20285H1

WASHER

1шт.

6

3057400R1

O-RING,2.5mm Thk x 24mm ID, 70 Duro

1шт.

7

932618R1

WOODRUFF KEY,3mm x 5mm x 12.65mm

BOSCH

1шт.

8

3057399R1

FLANGE

CONNECTION

1шт.

931119R1

HEX SOC SCREW,M6 x 33mm, Cl 8.8

2шт.

931118R1

HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8

2шт.

933825R1

LOCK WASHER,M6

4шт.

9

3057398R1

FLANGE

CONNECTION

1шт.

931118R1

HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8

4шт.

933825R1

LOCK WASHER,M6

4шт.

10

3057401R1

O-RING,2.5mm Thk x 18mm ID, 70 Duro

1шт.

11

3232103R1

SUCTION PIPE

1шт.

12

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

2шт.

12

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

OPTIONAL

2шт.

13

3148340R1

HYDRAULIC HOSE,22.00 mm ID x 100.00 mm

Connecting

1шт.

14

3148341R1

SUCTION PIPE

1шт.

15

NOT-USED

1шт.

16

3220183R1

PLATE

SPARE PART

1шт.

17

3148343R1

SPACER

1шт.

18

3146331R1

CLAMP

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

19

3137937R92

STRAINER ASSY.

SUCTION

1шт.

20

933608R1

SEALING RING,M26 x 31 x 2

1шт.

21

3232102R2

PRESSURE PIPE

PUMP - OIL FILTER

1шт.

22

3232104R1

SUPPORT

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

179906

SPACER

BOLT, 9/16" X 38 MM

1шт.

103320

LOCK WASHER,5/16"

2шт.

934066R1

WASHER

15 MM DIA.

1шт.

23

NOT-USED

1шт.

24

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

4шт.

25

FOR444613

PLUG

1шт.

26

3224668R91

FILTER

OIL CPTE. - WITH: 25, 27

1шт.

27

3224623R1

FILTER

INSERT

1шт.

28

930259R1

BANJO BOLT,M18 x 1 x 42mm

HOLLOW

2шт.

29

3232107R1

PRESSURE PIPE

OIL FILTER - DRAFT CONTROL VALVE

1шт.

30

3057803R1

HYD CONNECTOR,M22 x 1.5

M22

1шт.

31

3058427R1

STUD

3/8" X 120 MM

1шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

(3/8")

2шт.

21070R1

NUT,3/8"-16, G8

1шт.
