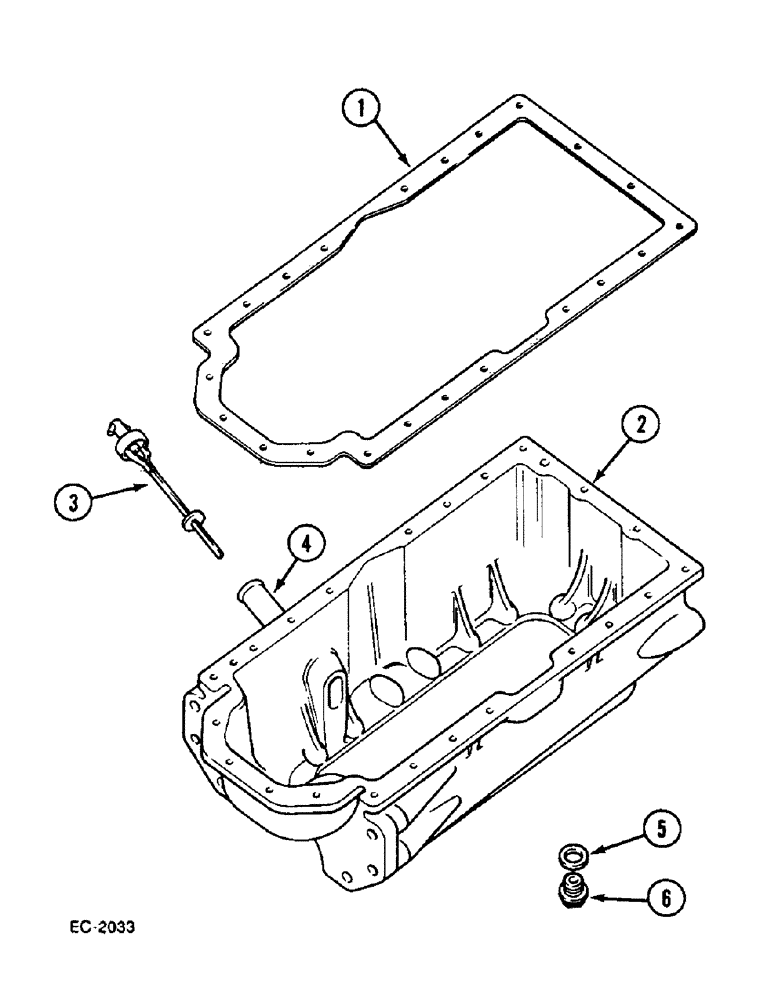

Запчасти Case IH 733 (2-84) - OIL PAN (02) - ENGINE

1

3055161R1

GASKET

1шт.

2

3218621R91

PAN, ENGINE OIL

PAN, OIL ASSY. with: Ref. 4

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

16шт.

3055668R1

SCREW,Hex, 5/16" - 18 x 176mm

5/16 x 178 mm

2шт.

3055129R2

WASHER

18шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock

4шт.

3

3218623R92

DIPSTICK

GAUGE

1шт.

4

3218412R1

TUBE

1шт.

5

933609R1

RING

1шт.

6

3131883R2

SCREW

PLUG

1шт.
