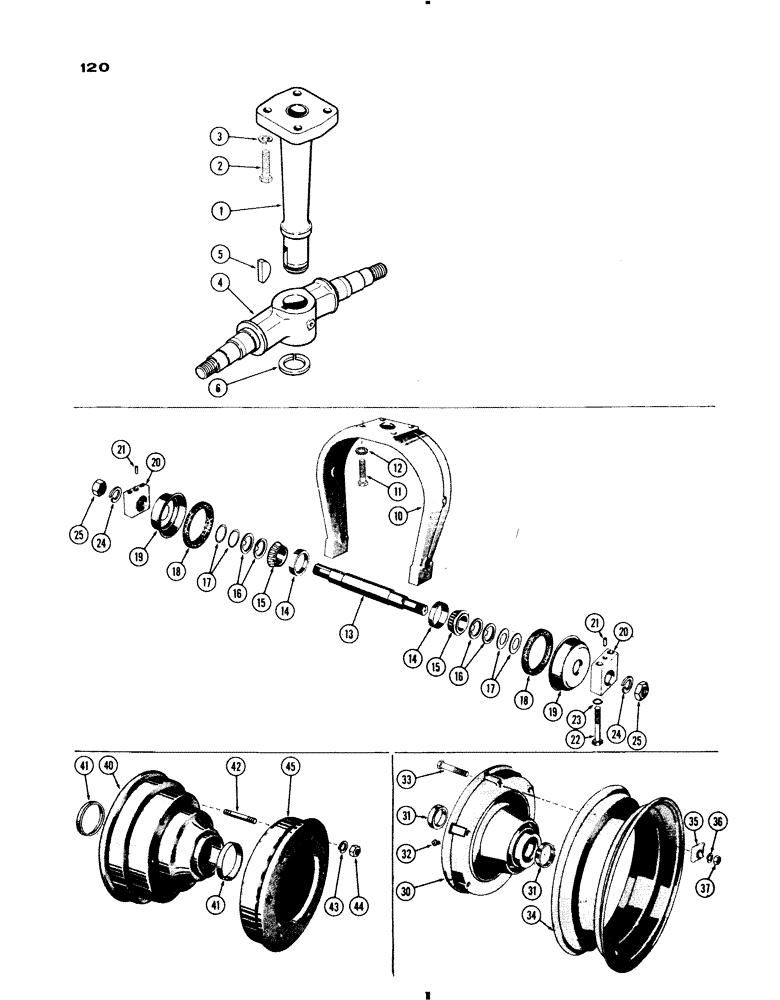

Запчасти Case IH 730 SERIES (120) - DUAL FRONT WHEEL AND SINGLE FRONT WHEEL (05) - STEERING

1

A32184

PEDESTAL - front axle

1шт.

2

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Pedestal Hex, 5/8"-18 x 2", G5

4шт.

3

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

4

A57258

SPINDLE

- front wheel (See Figure 124 for wheels), Start Serial: 8332878

1шт.

4

A28215

SPINDLE - front wheel (See Figure 124 for wheels), Serial Range: -8332878

1шт.

5

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - spindle (#29 Woodruff)

1шт.

6

A28217

RING - snap, spindle ret.

1шт.

10

A26349

FORK - front wheel, single

1шт.

11

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Fork, single front wheel Hex, 5/8"-18 x 2", G5

4шт.

12

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", Single front wheel

4шт.

13

A28221

SHAFT - front axle, single wheel

1шт.

14

A27631

CUP

- brg. (incl. w/hub), single front wheel

2шт.

15

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - brg., single front wheel

2шт.

16

A28222

WASHER - axle shaft, single front wheel

4шт.

17

A28223

SHIM,.003" Thk

Axle shaft, Single front wheel .003" Thk

1шт.

17

A28224

SHIM,.005" Thk

Axle shaft, Single front wheel .005" Thk

1шт.

18

A27632

FELT

SEAL - dust, ft. axle (3-1/2 x 4-3/8 x 3/8" felt), single front wheel

2шт.

19

A28225

RETAINER

- dust seal, single front wheel

2шт.

20

A9764

BLOCK ASSY. - (used w/7.50 x 16 tire) (3-1/2" high), Includes: Ref. 21, single front wheel

2шт.

21

NSS

NOT SOLD SEPARAT

PIN - block (3/16 x 2-5/8") (Order A9764 blk.), single front wheel

1шт.

20

A28723

BLOCK ASSY. - (used w/9.00 x 10 tire) (2-1/8" high), Includes: Ref. 21, single front wheel

2шт.

21

NSS

NOT SOLD SEPARAT

PIN - block (3/8 x 1-5/32") (Order A28723 blk.), single front wheel

1шт.

22

A9765

BOLT - (used w/A9764 blk.) (9/16 x 4-1/2" N.F. hex.), single front wheel

4шт.

22

14-952

BOLT,Hex, 9/16" - 18 x 3-1/4", Gr 5

- (used w/A28723 blk.) (9/16 x 3-1/4" N.F. hex.), single front wheel

4шт.

23

92-9

BEARING WASHER,9/16"

Single front wheel 9/16"

4шт.

24

92-18

LOCK WASHER,1 1/8"

single front wheel 1 1/8"

2шт.

25

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- shaft ret. (1-1/8" N.F. half hex.), single front wheel

2шт.

30

A28722

WHEEL (STEERING)

DISC. ASSY. - wheel ctr. (used w/A27295 rim), Includes: Ref. 31 and 32, single front

1шт.

31

A27631

CUP

- bearing, single front wheel

2шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), single front wheel

1шт.

33

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- rim (1/2 x 3-1/2" N.F. hex.), single front wheel

6шт.

34

A27295

RIM - (takes 7.50 x 16 tire), single front wheel

1шт.

35

A27228

CLAMP

- rim to ctr. disc., single front wheel

6шт.

36

92-8

LOCK WASHER,1/2"

single front wheel 1/2"

6шт.

37

25-178

NUT,1/2"-20, G5, Hvy

- clamp bolt (1/2" N.F. hex.), single front wheel

6шт.

40

A28724

DISC ASSY. - wheel half (takes 9.00 x 10 tire) (used w/A26245 flange), Includes: Ref. 41 - 44, single front

1шт.

41

A27631

CUP

- bearing, single front wheel

2шт.

42

A27704

STUD - flange (1/2" N.C./N.F. x 4"), single front wheel

6шт.

43

92-8

LOCK WASHER,1/2"

single front wheel 1/2"

6шт.

44

25-178

NUT,1/2"-20, G5, Hvy

- (1/2" N.F. hex.), single front wheel

6шт.

45

A26245

FLANGE - wheel half (Takes 9.00 x 10 tire), single front

1шт.
