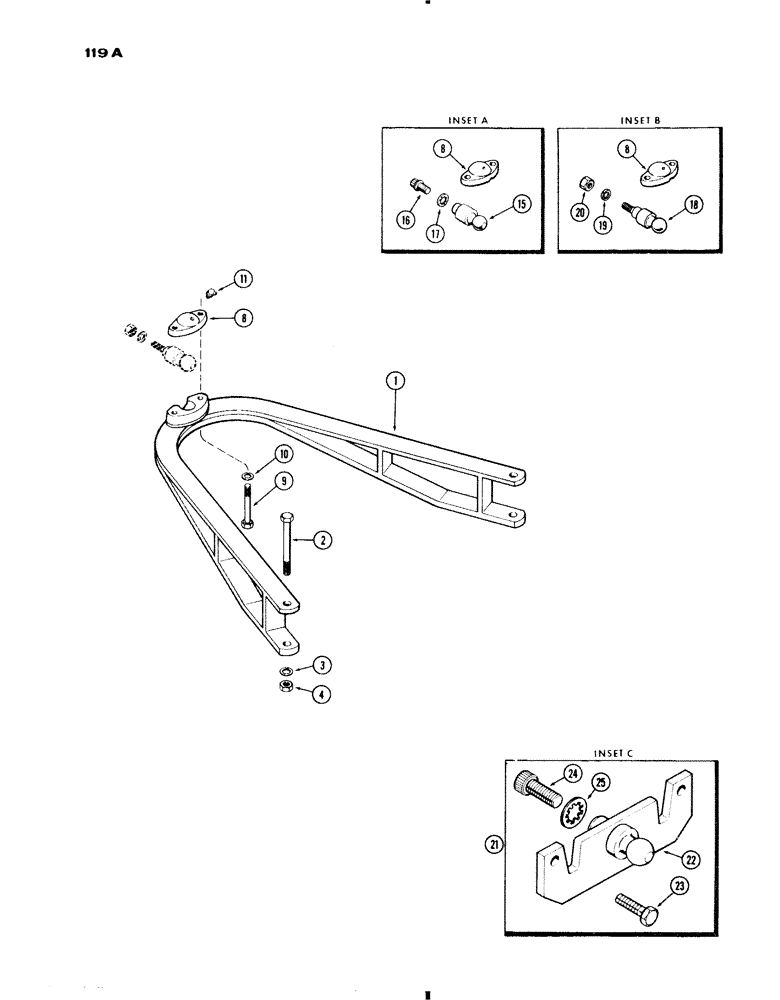

Запчасти Case IH 730 SERIES (119A) - RADIUS ROD, 4 WHEEL AND WESTERN (05) - STEERING

1

A7802

ROD - radius, front axle

1шт.

2

A22949

BOLT - radius rod (5/8" x 6" N.C. hex.)

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

25-1610

NUT,5/8"-11, G5, Hvy

- (5/8" N.C. hex.)

2шт.

8

A34158

CAP

- ball socket (tapped)

1шт.

8

A7799

X

CAP - ball socket (plain) (order 1-A34158 & 2-13-852)

1шт.

9

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Used w/A34158) Hex, 1/2"-13 x 3 1/4", G5

2шт.

9

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Cap (Used w/A7799) Hex, 1/2"-13 x 3 3/4", G5

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

15

A57093

BALL

- pivot, truss rod (See inset A), Start Serial: 8301825

1шт.

16

166-114

SCREW,Flg, 5/8" - 11 x 1 3/4"

BOLT - pivot ball (5/8 x 1-3/4" N.C. Ferry)

1шт.

17

193-84

LOCK WASHER,5/8"

WASHER - ( int. skpf.) 5/8"

1шт.

18

A33748

X

BALL - pivot, truss rod (See inset B) (Order a-A57093, 1 0f 166-114 & 1 of 193-84), Serial Range: -8301825

1шт.

19

92-8

LOCK WASHER,1/2"

1шт.

20

25-118

NUT,1/2"-20, G5

- ball ret. (1/2" N.F. hex.)

1шт.

21

A42394

NO LONGER SERVICED

PIVOT BALL KIT - (See inset C), Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - w/pivot ball

1шт.

23

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

Plate to oil pan Hex, 1/2"-13 x 1 7/8", G5

2шт.

24

166-114

SCREW,Flg, 5/8" - 11 x 1 3/4"

BOLT - pivot ball (5/8 x 1-3/4" N.C., Ferry hd.)

1шт.

25

193-84

LOCK WASHER,5/8"

WASHER - ( int. skpf) 5/8"

1шт.
