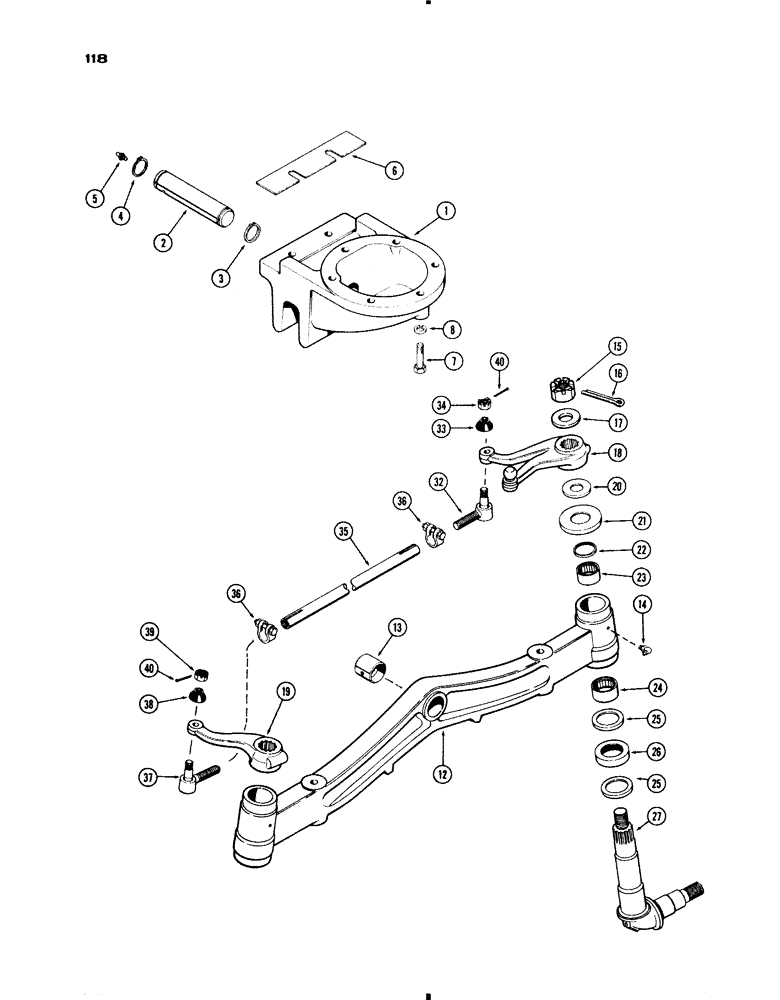

Запчасти Case IH 730 SERIES (118) - FRONT AXLE AND TIE ROD, 4 WHEEL AND WESTERN (05) - STEERING

1

A22821

PEDESTAL ASSY., Includes: Ref. 2 and 3

1шт.

2

A22823

PIN

- pivot, front axle

1шт.

3

A7610

RING, SNAP

RING - snap, pivot pin ret., front

1шт.

4

A7611

SNAP RING,#175, Ext

RING - snap, , pivot pin, rear #175, Ext

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

6

A22799

SHIM - pedestal (.003")

1шт.

6

A22798

SHIM - pedestal (.005")

1шт.

7

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Pedestal Hex, 5/8"-11 x 1 3/4", G5, Full Thd

6шт.

7

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Pedestal Hex, 5/8"-11 x 2", G5

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

12

A20929

AXLE ASSY., Includes: Ref. 13

1шт.

13

A35002

BUSHING

- pivot pin (1-3/4 x 1-15/16 x 2")

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

15

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle arm (1-1/8" N.F. hex. sltd.)

2шт.

16

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

17

A35047

WASHER

- spindle arm (1-13/16 x 2-1/2 x 5/32")

2шт.

18

A24468

ARM - steering, left hand

1шт.

19

A24470

ARM - steering, right hand

1шт.

20

A35861

SHIM,.0149" Thk

Spindle (28 gauge) .0149" Thk

1шт.

20

A35345

SHIM,.0359" Thk

Spindle (#20 gauge) .0359" Thk

1шт.

20

A35346

SHIM,.0598" Thk

Spindle (16 gauge) .0598" Thk

1шт.

20

A35347

SHIM,.1345" Thk

Spindle (10 gauge) .1345" Thk

1шт.

21

A35344

SHIELD

- dust, spindle bearing

2шт.

22

A27754

OIL SEAL

- oil, spindle, (1-3/4 x 2-1/8 x 3/16")

2шт.

23

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, upper

2шт.

24

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, lower

2шт.

25

A36565

WASHER,51.2mm ID x 66.67mm OD x 6.35mm Thk

- thrust, spindle

4шт.

26

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, spindle

2шт.

27

A57248

SPINDLE

- front wheel (Replaces A36535)

2шт.

32

A28419

END ASSY.

- tie rod, right hand, Includes: Ref. 33 and 34

1шт.

33

G46043

COVER

SEAL - dust, tie rod end

1шт.

34

25-130

CORE

NUT - (9/16" N.F. sltd.)

1шт.

35

A9593

TUBE - tie rod

1шт.

36

A27080

CLAMP

ASSY. - tie rod ends

2шт.

37

A28704

END

ASSY. - tie rod, left hand, Includes: Ref. 38 and 39

1шт.

38

G46043

COVER

SEAL - dust, tie rod end

1шт.

39

25-130

CORE

NUT (9/16" N.F. sltd.)

1шт.

40

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.
