Запчасти Case IH 730 SERIES (117A) - DRAG LINK, GEN. PURP, 48" TO 73" & 53" TO 82" TREAD, (05) - STEERING

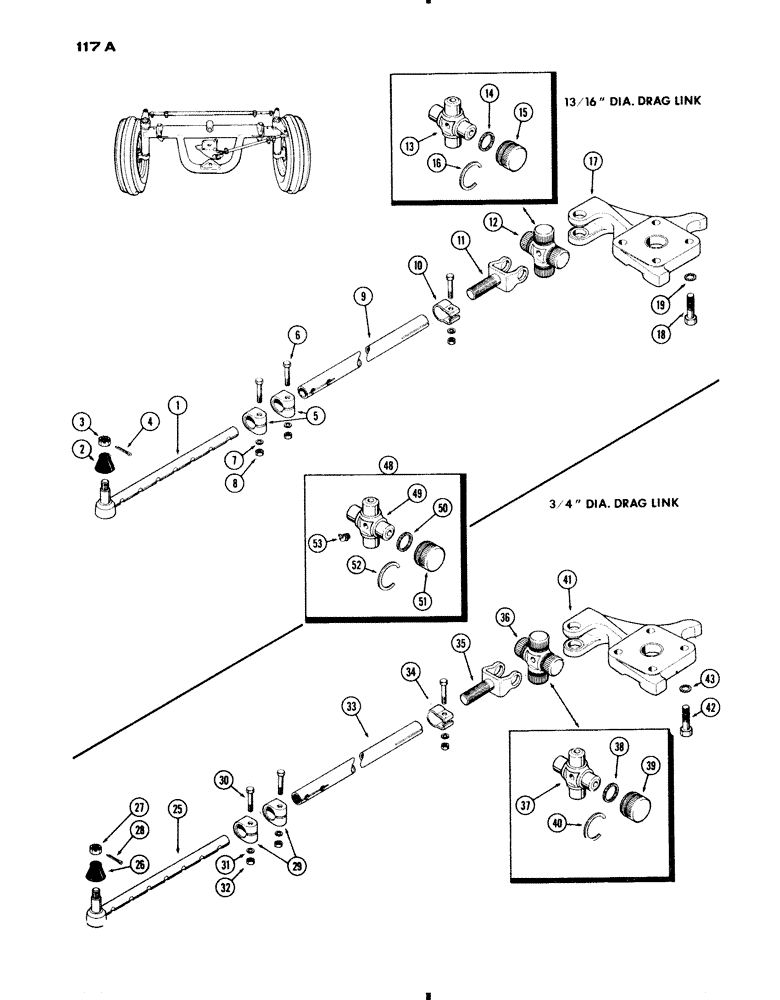

Схема запчастей Case IH 730 SERIES - (117A) - DRAG LINK, GEN. PURP, 48" TO 73" & 53" TO 82" TREAD, (05) - STEERING
10
53
37
16
14
31
15
39
41
5
27
4
51
6
40
9
26
49
3
8
36
25
1
30
32
17
38
42
11
26
29
52
18
7
13
2
33
34
48
35
12
19
43
50

Артикул

Название

Примечание

Количество

1

A34893

LINK ASSY.

- front (48" to 73") (13-7/8" long), Includes: Ref. 2

1шт.

1

A34894

DRAG LINK

LINK ASSY. - front (53" to 83") (14-1/8" long), Includes: Ref. 2

1шт.

2

G46043

COVER

SEAL - dust (rubber)

1шт.

3

25-139

SLOTTED NUT,9/16"-18, G5

NUT - link ends (9/16" N.F. sltd)

1шт.

4

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

5

A34191

CLAMP

- indexing (For 1/2" dia. bolt)

2шт.

6

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- indexing clamp (1/2" x 2-1/4" N.F. hex.)

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

9

A34190

TUBE - (48" to 73") (53/64" I.D. x 1-1/8" O.D. x 15-3/4")

1шт.

9

A34194

TUBE

- (53" to 83") (53/64" I.D. x 1-1/8" O.D. x 17-3/4")

1шт.

10

A34192

CLAMP

ASSY. - tube locking (w/1/2" bolt, nut & L.W.)

1шт.

11

A34188

END

YOKE - univ. joint (threaded end 7/8" N.C.)

1шт.

12

A30435

KIT

UNIVERSAL JOINT ASSY. - (w/needle brg.) (See Ref. 48), Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

CROSS - univ. joint (Order A30435)

1шт.

14

A30766

WASHER - center cross (cork)

4шт.

15

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A30435)

4шт.

16

A31149

RING, SNAP

RING - snap, brg. ret.

4шт.

17

A24659

ARM

- steering, center

1шт.

18

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Arm Hex, 5/8"-18 x 1 3/4", G5

4шт.

19

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

25

A24644

LINK

ASSY. - front (48" to 73") (13-7/8" long), Includes: Ref. 26

1шт.

25

A24663

POWER ARM

LINK ASSY. - front (53" to 83") (14-1/8" long), 3/4" dia. drag link, Serial Range: -8281392

1шт.

26

G46043

COVER

SEAL - dust (rubber), Includes: Ref. 26, 3/4" dia. drag link, Serial Range: -8281392

1шт.

27

25-139

SLOTTED NUT,9/16"-18, G5

NUT - link ends (9/16" N.F. sltd.), 3/4" dia. drag link, Serial Range: -8281392

1шт.

28

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , 3/4" dia. drag link 1/8" x 1", Serial Range: -8281392

1шт.

29

A26139

CLAMP

- indexing (For 7/16" dia. bolt), 3/4" dia. drag link, Serial Range: -8281392

2шт.

30

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

Indexing clamp, 3/4" dia. drag link Hex, 7/16"-14 x 2", G5, Serial Range: -8281392

2шт.

31

92-7

LOCK WASHER,7/16"

3/4" dia. drag link 7/16", Serial Range: -8281392

2шт.

32

25-107

NUT,7/16"-14, G5

- (7/16" N.C. hex), 3/4" dia. drag link, Serial Range: -8281392

2шт.

33

A24658

TUBE

- (48" to 73") (3/4" I.D. x 1" O.D. x 16"), 3/4" dia. drag link, Serial Range: -8281392

1шт.

33

A24670

TUBE

- (53" to 83") (3/4" I.D. x 1" O.D. x 18"), 3/4" dia. drag link, Serial Range: -8281392

1шт.

34

A27080

CLAMP

ASSY. - tube locking (w/3/8" bolt, nut, & L.W.), 3/4" dia. drag link, Serial Range: -8281392

1шт.

35

A8752

YOKE

- univ. joint (threaded end 13/16" N.C.), 3/4" dia. drag link, Serial Range: -8281392

1шт.

36

A30435

KIT

UNIVERSAL JOINT ASSY. - (w/needle brg.) (See Ref. 48), Includes: Ref. 37 - 40, 3/4" dia. drag link, Serial Range: -8281392

1шт.

37

NSS

NOT SOLD SEPARAT

CROSS - univ. joint (Order A30435), 3/4" dia. drag link, Serial Range: -8281392

1шт.

38

A30766

WASHER - cork, 3/4" dia. drag link, Serial Range: -8281392

4шт.

39

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A30435), 3/4" dia. drag link, Serial Range: -8281392

4шт.

40

A31149

RING, SNAP

RING - snap, brg, ret., 3/4" dia. drag link, Serial Range: -8281392

4шт.

41

A24659

ARM

- steering, center, 3/4" dia. drag link, Serial Range: -8281392

1шт.

42

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Str. arm, 3/4" dia. drag link Hex, 5/8"-18 x 1 3/4", G5, Serial Range: -8281392

4шт.

43

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", 3/4" dia. drag link, Serial Range: -8281392

4шт.

48

B18132

X

UNIVERSAL JOINT ASSY. - (w/plain brgs.) (Order A30435), Includes: Ref. 49 - 53, 3/4" dia. drag link, Serial Range: -8281392

1шт.

49

NSS

NOT SOLD SEPARAT

CROSS - univ. joint (Order A30435), 3/4" dia. drag link, Serial Range: -8281392

1шт.

50

F62222

WASHER - cork, 3/4" dia. drag link, Serial Range: -8281392

4шт.

51

NSS

NOT SOLD SEPARAT

BEARING - plain (Order A30435), 3/4" dia. drag link, Serial Range: -8281392

4шт.

52

A31149

RING, SNAP

RING - snap, brg., ret/, 3/4" dia. drag link, Serial Range: -8281392

4шт.

53

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 67-1/2 deg.), 3/4" dia. drag link, Serial Range: -8281392

1шт.

Выбрано товаров: 48
