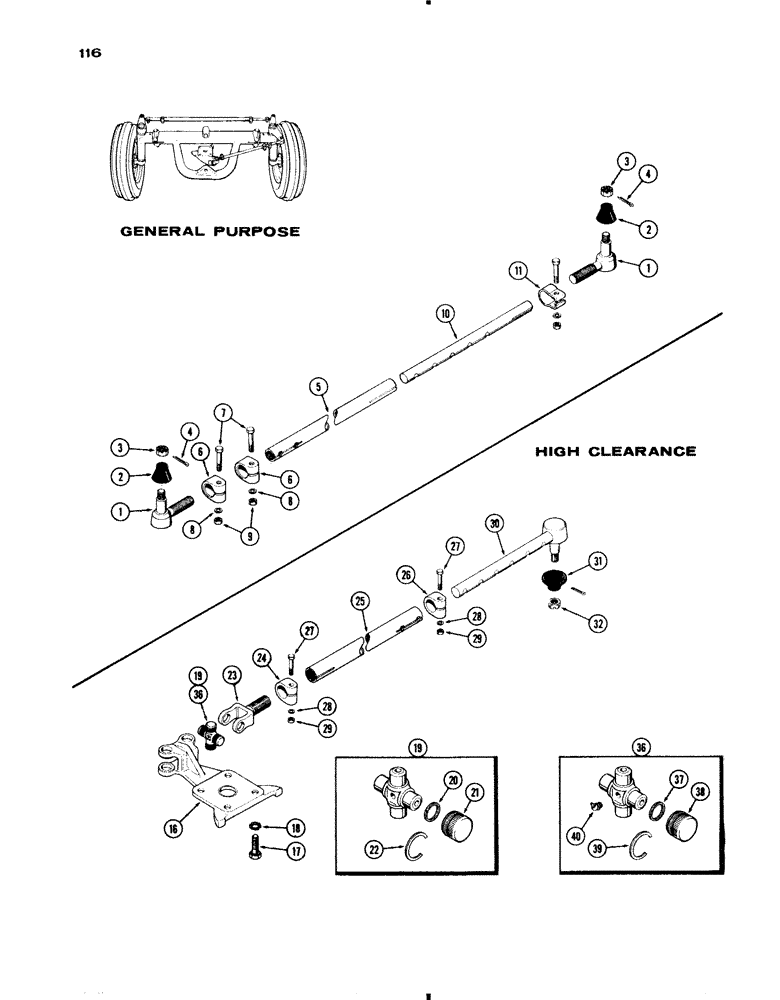

Запчасти Case IH 730 SERIES (116) - TIE RODS, GEN PURP & HIGH CLEARANCE, 48" TO 73" & 53" TO 82" TREAD, USED PRIOR TO TRAC. S/N 8332878 (05) - STEERING

1

A28419

END ASSY.

- cross rod, Includes: Ref. 2

2шт.

2

G46043

COVER

SEAL - dust (rubber)

1шт.

3

25-139

SLOTTED NUT,9/16"-18, G5

NUT - (9/16" N.F. sltd.)

2шт.

4

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

5

A24657

TUBE

- cross rod (48" to 73" tread) (29-1/2" long), no threaded I.D. required

1шт.

5

A24669

TUBE

- cross rod (53" to 82" tread) (34-1/2" long), no threaded I.D. required

1шт.

6

A20421

CLAMP

- tube

2шт.

7

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

Clamp Hex, 7/16"-14 x 2 1/4", G5

2шт.

8

92-7

LOCK WASHER,7/16"

2шт.

9

25-107

NUT,7/16"-14, G5

- (7/16" N.C. hex.)

2шт.

10

A24656

ROD

- cross (48" to 73") (17-3/4" long, solid)

2шт.

10

A24668

TIE-ROD

ROD - cross (53" to 82") (20-1/4" long, solid)

1шт.

11

A27080

CLAMP

ASSY. - cross rod (w/bolt, nut & L.W.)

2шт.

16

A7917

ARM - steering, center, high clearance

1шт.

17

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

Arm, high clearance Hex, 5/8"-18 x 1 1/2", G5

4шт.

18

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", High clearance

4шт.

19

A30435

KIT

UNIVERSAL JOINT ASSY. - w/needle brgs. (see Ref. 36), Includes: Ref. 20 - 22, high clearance

2шт.

20

A30766

WASHER - center cross (cork), high clearance

4шт.

21

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A30435), high clearance

4шт.

22

A31149

RING, SNAP

RING - snap, brg. ret., high clearance

4шт.

23

A8195

YOKE - tie rod, inner, high clearance

2шт.

24

A27746

CLAMP - tube (yoke end), high clearance

2шт.

25

A7921

TUBE - tie rod, no threaded I.D. required, high clearance

2шт.

26

A7913

CLAMP - tube (rod end), high clearance

4шт.

27

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- clamp (1/2 x 2-1/4" N.C. hex.), high clearance

6шт.

28

92-8

LOCK WASHER,1/2"

high clearance 1/2"

6шт.

29

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.), high clearance

6шт.

30

A8395

ROD ASSY. - left hand (12-3/4" long), high clearance, Includes: Ref. 31

1шт.

30

A7920

ROD ASSY. - right hand (12-3/4" long), high clearance, Includes: Ref. 31

1шт.

31

A31186

BOOT

COVER - dust (rubber), high clearance

1шт.

32

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - (5/8" N.F. hex., sltd.), high clearance

2шт.

36

B18132

X

CROSS ASSY. - (w/grease fitting) (Order A30435), Includes: Ref. 37 - 40, high clearance

1шт.

37

F62222

WASHER - center cross (cork), high clearance

4шт.

38

NSS

NOT SOLD SEPARAT

BEARING - center cross (plain) (Order A30435), high clearance

4шт.

39

A31149

RING, SNAP

RING - snap, brg. ret., high clearance

4шт.

40

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 67-1/2 deg.), high clearance

1шт.
