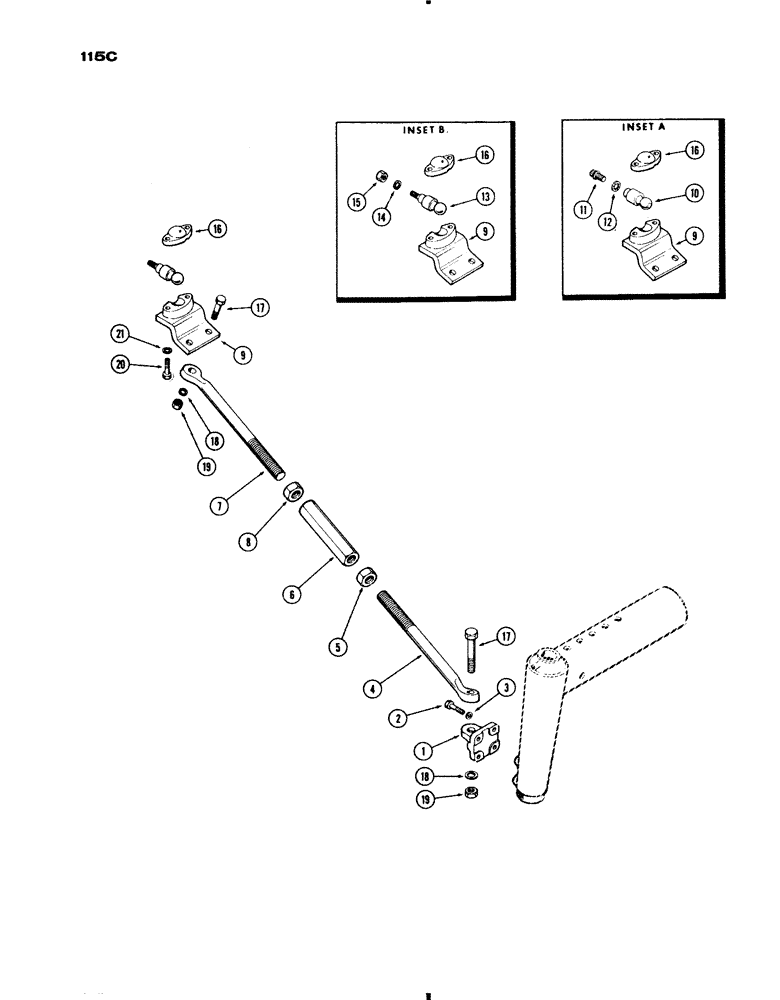

Запчасти Case IH 730 SERIES (115C) - TRUSS ROD, HIGH CLEARANCE (05) - STEERING

1

A8387

BRACKET - truss rod, front

2шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Bracket Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

A8384

ROD - truss, front (1-1/4" N.F. x 17-7/16") w/right hand thread)

2шт.

5

25-1520

NUT

- frt. truss rod (1-1/4" N.F. jam, R.H. thread)

2шт.

6

A8386

TRUNBUCKLE - truss rod adj.

2шт.

7

A8385

ROD - truss, rear (1-1/4" N.F. x 19") w/left hand thread)

2шт.

8

129-372

NUT,Jam, 1 1/4"-12, G5, LH

- rear truss rod (1-1/4" N.F. jam, L.H. thread)

2шт.

9

A33638

BRACKET - ball socket

1шт.

10

A57093

BALL

- pivot, truss rod (See inset A), Start Serial: 8301825

1шт.

11

166-114

SCREW,Flg, 5/8" - 11 x 1 3/4"

BOLT - pivot ball (5/8 x 1-3/4" N.C. Ferry)

1шт.

12

193-84

LOCK WASHER,5/8"

WASHER - ( int. skpf.) 5/8"

1шт.

13

A33748

X

BALL - pivot, truss rod (See inset B) (Order 1-A57093, 1 of 166-144 & 1 of 193-84, Serial Range: -8301825

1шт.

14

92-8

LOCK WASHER,1/2"

1шт.

15

25-118

NUT,1/2"-20, G5

- ball ret. (1/2" N.F. hex.)

1шт.

16

A34158

CAP

- ball socket (tapped)

1шт.

16

A7799

X

CAP - ball socket (plain)(Order 1-A34158 & 2-13-840)

1шт.

17

13-1440

BOLT (MACHINE),Hex, 7/8" - 9 x 2-1/2", Gr 5

BOLT - rod to brkt. (7/8 x 2-1/2" N.C. hex.)

4шт.

18

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

19

25-1014

NUT,7/8"-9, G5

4шт.

20

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- brkt. (1/2 x 2-1/2" N.C. hex.) (use w/A34158)

2шт.

20

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- brkt. (1/2 x 3" N.C. hex.) (used w/A7799)

2шт.

21

92-8

LOCK WASHER,1/2"

2шт.
