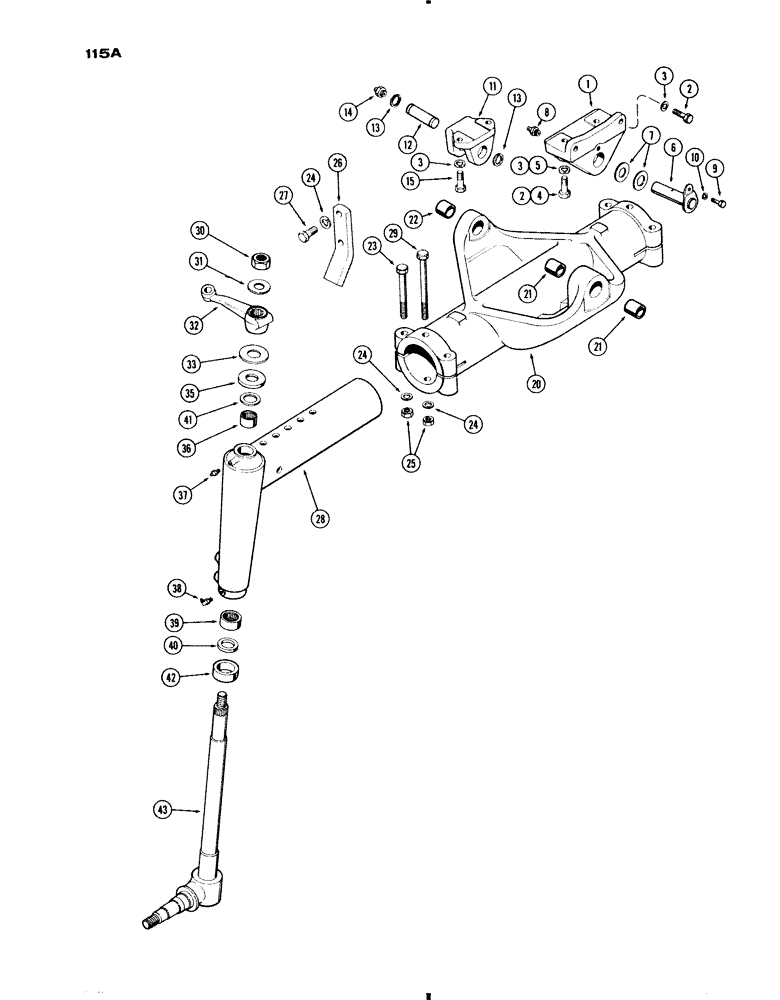

Запчасти Case IH 730 SERIES (115A) - ADJUSTABLE FRONT AXLE, HIGH CLEARANCE (05) - STEERING

1

A57068

PEDESTAL - front axle (Check A8190 before ordering) (w/two 5/8" hole & two 3/4" holes)

1шт.

1

A8190

PEDESTAL - front axle (check A57068 before ordering) (w/four 5/8" holes)

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Pedestal (2 used w/A57068 & 4 used w/A8190 Hex, 5/8"-11 x 2", G5

1шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Pedestal (Used w/A57068) Hex, 3/4"-10 x 2 1/4", G5

2шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

A7907

PIN - axle pivot, front

1шт.

7

A7905

WASHER - thrust, frt. pvt., pin (1-25/32 x 3-1/2 x 7/64")

2шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 deg.)

1шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Pivot pin Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

10

92-8

LOCK WASHER,1/2"

1шт.

11

A8191

SUPPORT - axle, rear

1шт.

12

A7909

PIN - axle pivot, rear

1шт.

13

A27568

RING

- snap, pivot pin ret.

2шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 deg.)

1шт.

15

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Support Hex, 5/8"-11 x 2", G5

2шт.

20

A7924

AXLE ASSY., Includes: Ref. 21

1шт.

21

A7908

BUSHING

- frt. pvt. pin (1-3/4 x 2 x 1-1/8")

2шт.

22

A7910

BUSHING - rear pvt. pin (1-1/2 x 1-3/4 x 1-3/4")

1шт.

23

14-296

BOLT - axle (3/4x 6" N.F. hex.)

4шт.

24

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

25

25-1112

NUT,3/4"-16, G5

- (3/4" N.F. hex.)

6шт.

26

A8194

STOP - axle pivot (on rad. brkt)

2шт.

27

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Stop Hex, 3/4"-10 x 1 3/4", G5

4шт.

28

A8196

EXTENSION - axle, right hand

1шт.

28

A8197

EXTENSION - axle, left hand

1шт.

29

16-702

BOLT - extension (3/4 x 8" N.F. hex.)

2шт.

30

129-131

NUT,1 1/8"-12, G5

- spindle ret. (1-1/8" N.F. hex.)

2шт.

31

A35047

WASHER

- spindle nut (1-13/16 x 2-1/2 x 5/32")

2шт.

32

A24688

ARM - steering, right hand

1шт.

32

A24689

ARM - steering, left hand

1шт.

33

A24645

SHIM,.0149" Thk

King pin (#28 gauge) .0149" Thk

1шт.

33

A24643

SHIM,.0359" Thk

King pin (#20 gauge) .0359" Thk

1шт.

33

A24642

SHIM,.0598" Thk

King pin (#16 gauge) .0598" Thk

1шт.

33

A24639

SHIM,.1345" Thk

King pin (#10 gauge) .1345" Thk

1шт.

35

A7849

GUARD

SHIELD - dust

2шт.

36

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING - needle, upper

1шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, upper (1/8" P.T. str)

2шт.

38

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Lower 90º, 1/8" NPT x .84" lg

2шт.

39

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, lower

2шт.

40

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust

2шт.

41

A27564

OIL SEAL

- oil (1-1/2 x 1-1/78 x 3/16")

2шт.

42

A24692

SPACER - spindle (2-1/8 x 2-3/4 x 1-7/16")

2шт.

43

A24690

SPINDLE - (king pin) front wheel

2шт.
