Запчасти Case IH 730 SERIES (113A) - TIE RODS, GEN. PURP., 53" TO 73" AND 60" TO 88" TREAD, 1ST USED TRAC. S/N 8332878, DRAG LINK (05) - STEERING

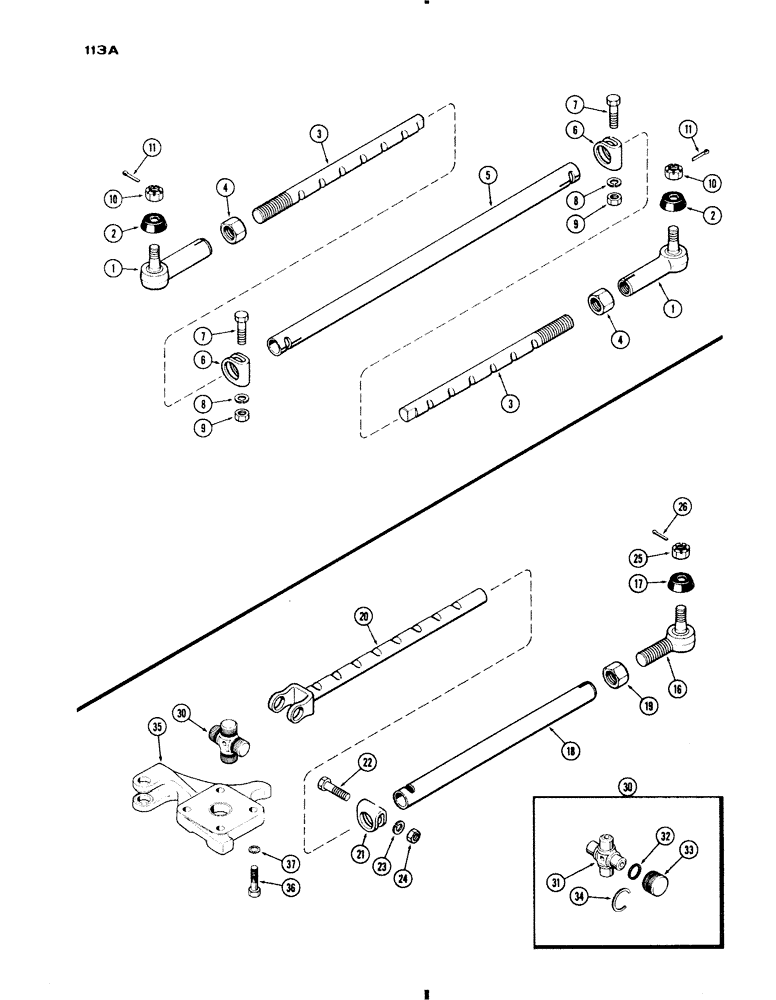

Схема запчастей Case IH 730 SERIES - (113A) - TIE RODS, GEN. PURP., 53" TO 73" AND 60" TO 88" TREAD, 1ST USED TRAC. S/N 8332878, DRAG LINK (05) - STEERING
2
1
22
31
36
4
20
35
17
1
3
23
30
32
7
9
10
11
4
8
19
6
33
24
2
34
7
11
30
8
25
10
18
37
6
9
26
3
21
5
16

Артикул

Название

Примечание

Количество

1

A41520

END

- tie rod

2шт.

2

A41509

SEAL

- dust, tie rod end (rubber)

2шт.

3

A41524

ROD

- adjusting (53" to 73" tread) (15-3/4" long w/6 notches)

2шт.

3

A41522

ROD

- adjusting (60" to 88" tread) (19-3/4" long w/8 notches)

2шт.

4

A41511

NUT

- lock, tie rod end

2шт.

5

A41523

TUBE

- adj. rod (28-13/16" long) (53" to 73" tread)

1шт.

5

A41521

TUBE

- adj. rod (35-13/16" long) (60" to 88" tread)

1шт.

6

A41561

CLAMP

-, Serial Range: rod-tube

2шт.

7

114-411

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- clamp (1/2 x 2" N.F. hex.)

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-545

NUT,1/2"-20, G8

2шт.

10

25-139

SLOTTED NUT,9/16"-18, G5

NUT - tie rod end (9/16" N.F. sltd.)

2шт.

11

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

16

A41525

END

- drag link

1шт.

17

A41509

SEAL

- dust, drag link end (rubber)

1шт.

18

A41510

TUBE

- drag link (55" to 73" tread) (15-27/32" long)

1шт.

18

A41516

TUBE

- drag link (60" to 88" tread) (18-1/4" long)

1шт.

19

A41511

NUT

- lock, drag link end

1шт.

20

A41513

LINK

- (6 notches) (53" to 73" tread), drag

1шт.

20

A41529

LINK

- (8 notches) (60" to 88" tread), drag

1шт.

21

41561

CLAMP - link to tube, drage

1шт.

22

114-411

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- clamp (1/2 x 2-1/4" N.F. hex.), drag link

1шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Drag link 1/2"

1шт.

24

129-545

NUT,1/2"-20, G8

Drag link 1/2"-20, G8

1шт.

25

25-139

SLOTTED NUT,9/16"-18, G5

NUT - drag link end (9/16" N.F. sltd.)

1шт.

26

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Drag link 1/8" x 1"

1шт.

30

A30435

KIT

UNIVERSAL ASSY., drag link, Includes: Ref. 31 - 34

1шт.

31

NSS

NOT SOLD SEPARAT

CROSS - universal joint, drag link

1шт.

32

A30766

WASHER - center cross (cork), drag link

4шт.

33

NSS

NOT SOLD SEPARAT

BEARING - needle, drag link

4шт.

34

A31149

RING, SNAP

RING - snap, bearing retaining, drag link

4шт.

35

A24659

ARM

- steering, center, drag link

1шт.

36

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Arm, drag link Hex, 5/8"-18 x 1 3/4", G5

4шт.

37

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", Drag link

4шт.

Выбрано товаров: 34
