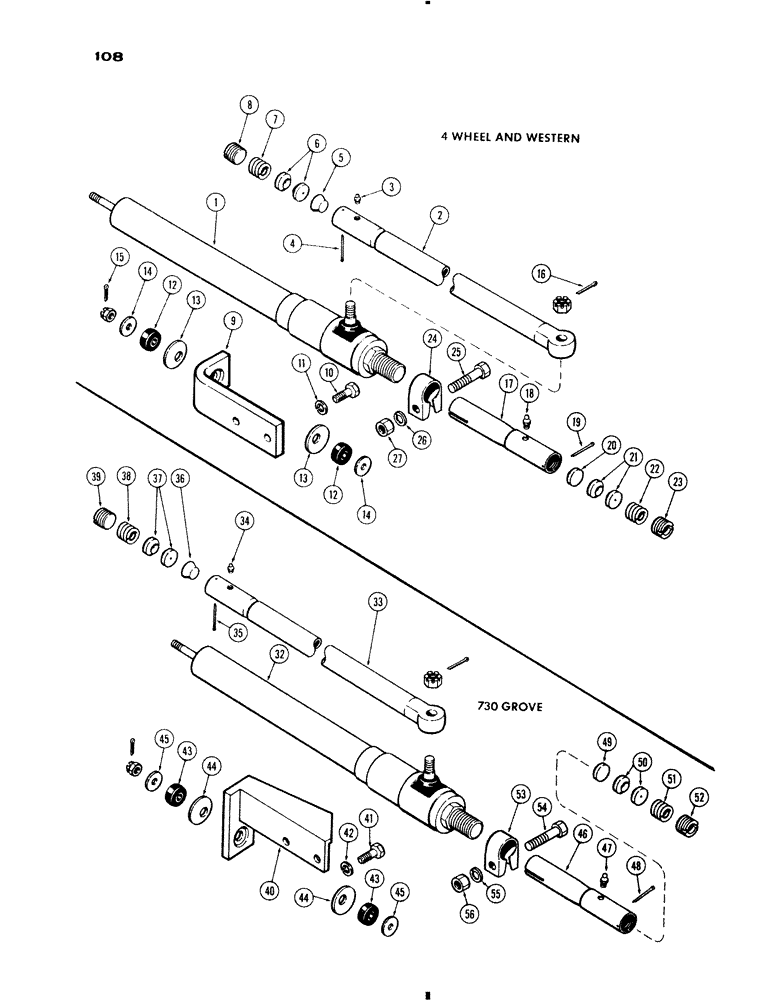

Запчасти Case IH 730 SERIES (108) - POWER STEERING DRAG LINK, 4 WHEEL AND WESTERN AND 730 GROVE ONLY (05) - STEERING

1

A34791

CYLINDER ASSY. - (See Figure 109A) (Replaces A24736)

1шт.

2

A24732

LINK

DRAG LINK ASSY - rear, Includes: Ref. 3 - 8

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

5

A26767

SEAT

- bearing

1шт.

4

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

6

A57918

SEAT

BEARING - ball seat (Repalces A26629)

2шт.

7

A26630

VALVE SPRING

SPRING - brg. pressure

1шт.

8

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - pressure adj.

1шт.

9

A21169

BRACKET - cyl. mtg.

1шт.

10

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Bracket Hex, 5/8"-11 x 1 3/4", G5, Full Thd

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

A35654

GROMMET

CUSHION - cyl. brkt.

2шт.

13

A24978

RETAINER

- cushion

2шт.

14

195-33

WASHER,1/2"

- ret. seat (17/32 x 1-1/4" x 13 Ga.)

2шт.

15

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), , Rod end 3/32" x 1"

1шт.

16

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Drag link 1/8" x 1 1/2"

1шт.

17

A21171

LINK

DRAG LINK ASSY. - front, Includes: Ref. 18 - 23

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

20

A26767

SEAT

- bearing

1шт.

19

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

21

A57918

SEAT

BEARING - ball seat (Replaces A26629)

2шт.

22

A26630

VALVE SPRING

SPRING - brg. pressure

1шт.

23

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - pressure adj.

1шт.

25

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- clamp (5/8 x 2-3/4" N.C. hex.)

1шт.

24

A23133

CLAMP

ASSY. - drag link, front, Includes: Ref. 25 - 27

1шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

27

25-1010

NUT,5/8"-11, G5

1шт.

32

A34791

CYLINDER ASSY. - (See Figure 109A) (Replaces A24736), 730 grove

1шт.

34

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease (1/8" P.T., 90 deg.), 730 grove

1шт.

33

A33791

DRAG LINK ASSY. - rear, Includes: Ref. 34 - 39, 730 grove

1шт.

36

A26767

SEAT

- bearing, 730 grove

1шт.

37

A57918

SEAT

BEARING - ball seat (Replaces A26629), 730 grove

2шт.

38

A26630

VALVE SPRING

SPRING - brg. pressure, 730 grove

1шт.

35

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , 730 grove 1/8" x 2"

1шт.

39

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - pressure adj., 730 grove

1шт.

40

A33797

BRACKET - cyl. mtg., 730 grove

1шт.

41

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Bracket, 730 grove Hex, 5/8"-11 x 1 3/4", G5, Full Thd

2шт.

42

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 730 grove 5/8"

2шт.

43

A35654

GROMMET

CUSHION - cyl. brkt., 730 grove

2шт.

44

A24978

RETAINER

- cushion, 730 grove

2шт.

45

195-33

WASHER,1/2"

- ret. seat (17/32 x 1-1/4 x 13 Ga.), 730 grove

2шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), 730 grove

1шт.

49

A26767

SEAT

- bearing, 730 grove

1шт.

46

A33795

DRAG LINK ASSY. - front, Includes: Ref. 47 - 52, 730 grove

1шт.

50

A57918

SEAT

BEARING - ball seat (Replaces A26629), 730 grove

2шт.

51

A26630

VALVE SPRING

SPRING - brg. pressure, 730 grove

1шт.

48

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , 730 grove 1/8" x 2"

1шт.

52

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - pressure adj., 730 grove

1шт.

54

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- clamp (5/8 x 2-3/4" N.C. hex.), 730 grove

1шт.

55

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 730 grove 5/8"

1шт.

56

25-1010

NUT,5/8"-11, G5

730 grove 5/8"-11, G5

1шт.

53

A23133

CLAMP

ASSY. - drag link, front, Includes: Ref. 54 - 56, 730 grove

1шт.
