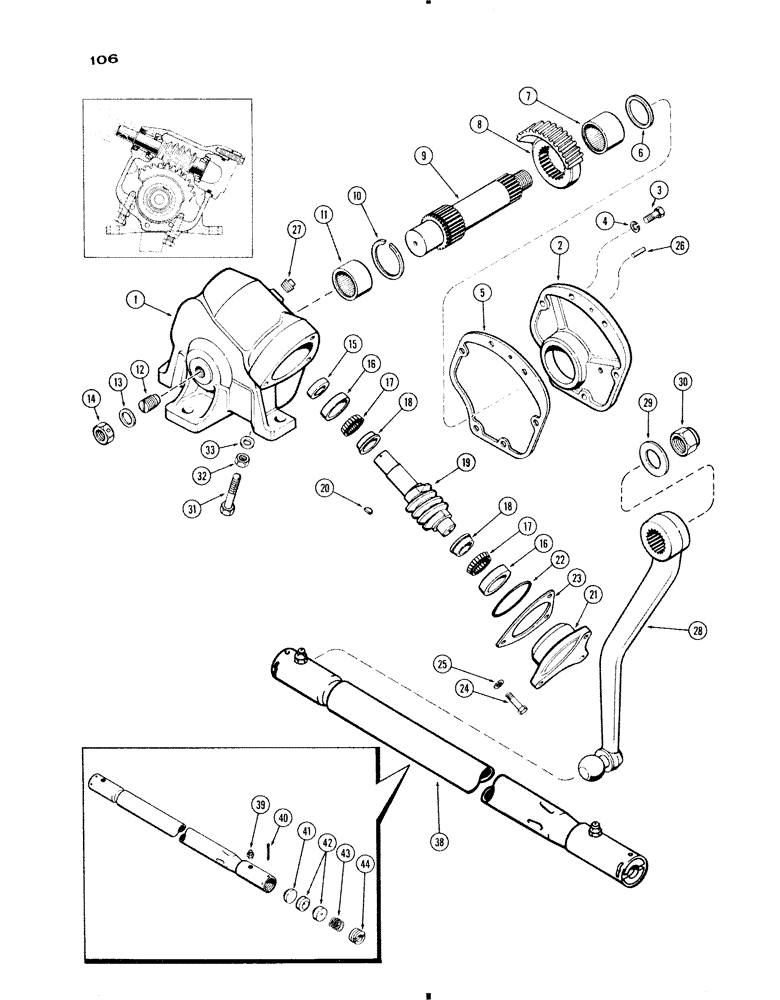

Запчасти Case IH 730 SERIES (106) - STEERING GEAR, MECHANICAL OR POWER, 4 WHEEL, WESTERN, 730 GROVE (05) - STEERING

A20974

HOUSING ASSY - w/cover (not illust.), Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - steering gear (order A20974)

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - str. gear hsg. (order A20974)

1шт.

3

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cover Hex, 3/8"-16 x 1 1/8", G5, Full Thd

5шт.

4

92-6

LOCK WASHER,3/8"

5шт.

5

A8135

GASKET

-, Serial Range: cover-hsg.

1шт.

6

A27564

OIL SEAL

- oil, str. shaft (1-1/2 x 1-7/8 x 3/16")

1шт.

7

A28213

NEEDLE BEARING,1.5" ID x 1.875" OD x 1.25"

BEARING - needle, str. shaft, outer

1шт.

8

A8763

GEAR - sector

1шт.

9

A9004

SHAFT - sector gear & str. arm

1шт.

10

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, sector gear ret.

1шт.

11

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING - needle, str. shaft, inner

1шт.

12

A57173

ADJUSTMENT SCREW,3/4" - 16 x 1.406"

- adj., backlash, Start Serial: 83909325

1шт.

12

A8139

X

SCREW - adj. backlash (Order 1-A57173, 1-A57174 & 1-G10964), Serial Range: -8309325

1шт.

13

G10964

WASHER

- (49/64 x 1 x 20 Ga. copper) (Used w/A57173)

1шт.

14

A57174

NUT - lock, adj. screw (3/4" N.F. spec.) (used w/A57173)

1шт.

14

25-1512

JAM NUT,Jam, 3/4"-10, G5

- lock, adj. screw (3/4" N.F. jam) (used w/A8139)

1шт.

15

A28317

SEAL

SEAL - oil, worm shaft (1 x 1-5/8 x 7/16")

1шт.

16

A27172

BEARING, CUP,49.21mm OD x 15.88mm W

CUP - bearing, worm shaft

2шт.

17

A27170

BEARING, ROLLER, CYL,25.4mm ID x 11.15mm W

CONE - bearing, worm shaft

2шт.

18

A27171

CONE

RACE - worm shaft bearing

2шт.

19

A8136

SHAFT - worm

1шт.

20

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - worm shaft (#11 Woodruff)

1шт.

21

A8785

CARRIER - worm shaft bearing

1шт.

22

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O"RING - carrier (2-1/2 x 2-3/4 x 1/8")

1шт.

23

A8723

SHIM,.003" Thk

Carrier .003" Thk

1шт.

23

A8724

SHIM - carrier (.005")

1шт.

23

A8725

SHIM,.010" Thk

Carrier .010" Thk

1шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- carrier (3/8 x 1-1/2" N.C. hex.)

3шт.

25

92-6

LOCK WASHER,3/8"

3шт.

26

A20976

PIN - hsg. cover locating (1/4 x 3/4")

2шт.

27

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - housing (1/2" P.T., sq. hd.)

1шт.

28

A9434

ARM - steering

1шт.

29

195-53

WASHER,1" x 2" x .134"

- (1-1/16 x 2 x 9/64")

1шт.

30

131-300

NUT - arm ret. (1" N.F. self-locking)

1шт.

31

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd, Sector gear adj.

1шт.

32

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock, adj. bolt (1/2" N.C. hex.)

1шт.

33

A11557

GASKET

WASHER - lock nut (33/64 x 7/8 x 3/64" copper)

1шт.

38

A11384

DRAG LINK ASSY - (4-wheel & west), Includes: Ref. 39 - 44, mechanical steering

1шт.

Ref: #38 A11384 Drag link Assy is 48 5/16 long.

1шт.

38

A10233

TIE-ROD

DRAG LINK ASSY - (730 Grove), Includes: Ref. 39 - 44, mechanical steering

1шт.

Ref: #38 A10233 Drag link Assy is 66 9/16 long.

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.) (1 used Grove), mechanical steering drag link

2шт.

39

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (730 Grove), Mechanical steering drag link 90º, 1/8" NPT x .84" lg

1шт.

41

A26767

SEAT

- bearing, mechanical steering drag link

2шт.

42

A57918

SEAT

BEARING - ball seat (Replaces A26629), mechanical steering drag link

4шт.

43

A26630

VALVE SPRING

SPRING - bearing pressure, mechanical steering drag link

2шт.

44

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - pressure adjusting, mechanical steering drag link

2шт.

44

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - pressure adjusting, mechanical steering drag link

2шт.

40

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Mechanical steering drag link 1/8" x 2"

2шт.
