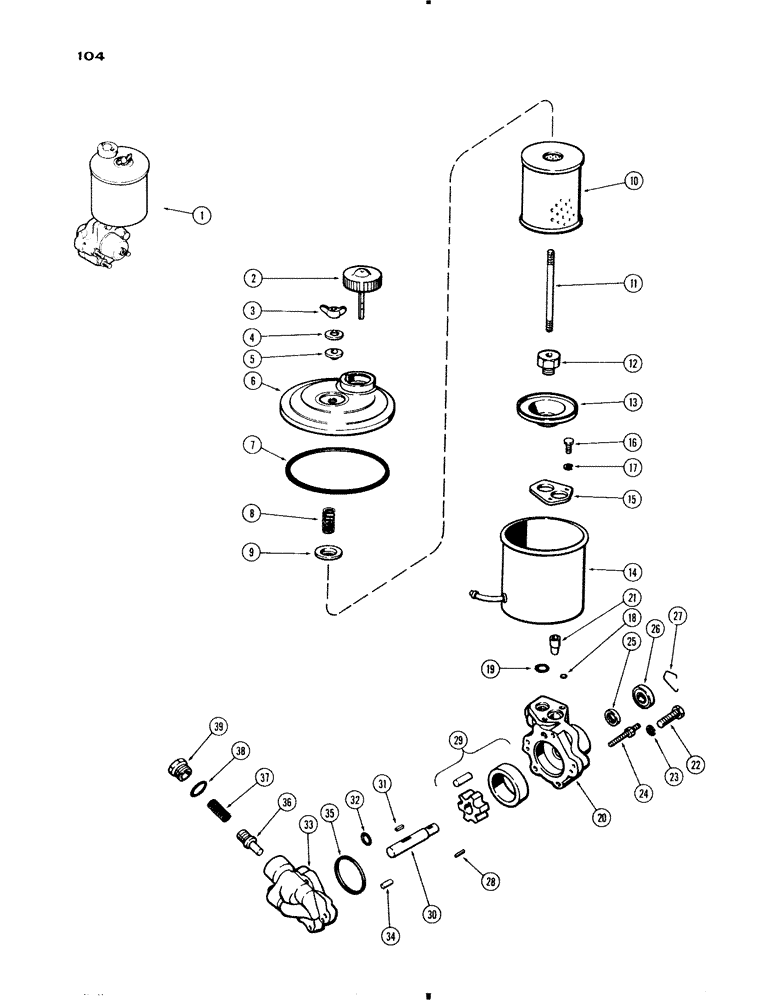

Запчасти Case IH 730 SERIES (104) - A57914, A57439, A33059 POWER STR. PUMP, ALL 730 AND 830, EXCEPT GROVE (05) - STEERING

1

A57914

PUMP ASSY. - power strg. (1.5 GPM-700RPM-700PSI), Includes: Ref. 2 - 39, Start Serial: 8343146

1шт.

1

A57439

PUMP ASSY. - power str. (1.5 GPM-700 RPM-700 PSI), Includes: Ref. 2 - 39, Serial Range: 8323504-8343146

1шт.

1

A33059

PUMP ASSY. - power str. (1 GPM-700RPM-500PSI) (Order A57439), Includes: Ref. 2 - 39, Serial Range: -8323504

1шт.

2

A24137

GAUGE ASSY.

CAP - filler, w/Bayonette gauge

1шт.

3

129-419

WING NUT,5/16"-18

NUT - cover ret. (5/16" N.C. wing)

1шт.

4

A30831

WASHER

- cover nut (3/8 x 7/8 x 3/32")

1шт.

5

A30830

GASKET

- cover stud

1шт.

6

A24136

COVER ASSY. - reservoir, Includes: Ref. 7

1шт.

7

A24138

GASKET

-, Serial Range: cover-reservoir

1шт.

8

A40000

SPRING

- element tension

1шт.

9

A22714

SEAT

- element spring

1шт.

10

A18061

FILTER, ELEMENT

ELEMENT - oil filter (2-1/2" dia. x 3-1/2")

1шт.

11

A40001

DOWEL

STUD - reservoir

1шт.

12

A20523

STUD

- reservoir ret.

1шт.

13

A40268

PLATE - element, support

1шт.

14

A40003

TANK

RESERVOIR - oil

1шт.

15

A18060

PLATE - reservoir reinforcement

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Reinforcement plate Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

A11026

GASKET

- body (11/32 x 29/64 x 1/16" rubber)

2шт.

19

A11027

GASKET

- body (53/64 x 61/64 x 7/64" rubber)

2шт.

20

A20517

BODY ASSY - pump, w/bushings & venturi, Includes: Ref. 21

1шт.

21

A20526

VENTURI

- body

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Body Hex, 3/8"-16 x 2", G5

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

A20527

STUD - body

3шт.

25

A30838

OIL SEAL

- oil, pump shaft

1шт.

26

A30835

BEARING

- pump shaft

1шт.

27

A20524

RING, SNAP

RING - snap, brg, ret.

1шт.

28

A20528

PIN

- impeller cam

1шт.

29

A41319

SEAL ASSY.

IMPELLER KIT - oil

1шт.

30

A20510

SHAFT

- pump

1шт.

31

A30839

AXLE PIN

KEY - impeller

1шт.

32

A20514

O-RING

"O"RING - by-pass port

1шт.

33

A41811

COVER

- pump, w/bushings (Replaces A20521)

1шт.

34

A30836

DOWEL

PIN - cover locating

2шт.

35

A20513

O-RING

"O"RING -, Serial Range: cover-body

1шт.

36

A20516

VALVE

- pressure relief

1шт.

37

A20511

SPRING

- praessure relief valve

1шт.

38

A30837

O-RING

"O"RING - relief valve cap

1шт.

39

A20512

CAP - pressure relief valve

1шт.
