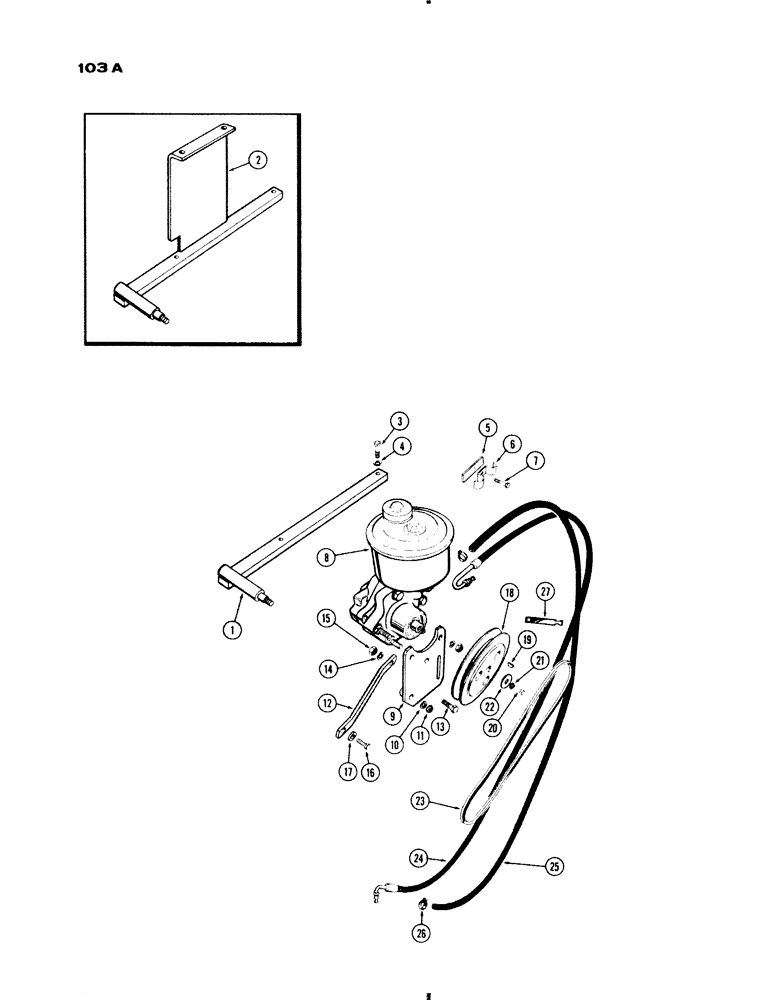

Запчасти Case IH 730 SERIES (103A) - POWER STEERING PUMP ATTACHMENTS, GEN. PURP. AND HI-CLR. (05) - STEERING

1

A57792

STRAP

SUPPORT - (Gas & Diesel & all Grove) (Replaces A23344)

1шт.

2

A57791

SUPPORT - (LP) (Not used Grove) (Repalces A33031)

1шт.

3

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Support

2шт.

4

92-7

LOCK WASHER,7/16"

2шт.

5

A23349

BRACKET - clamp (w/13/32" dia. hole)

1шт.

6

A23350

CLAMP - hose (w/13/32" dia. hole)

1шт.

7

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- clamp (3/8 x 2-3/4" N.C. hex.)

1шт.

8

A57913

PUMP ASSY. - power steering (See Figure 105A), Start Serial: 8347808

1шт.

8

A57440

PUMP ASSY. - power steering (See Figure 105A, Serial Range: 8323504-8347808

1шт.

8

A22145

PUMP ASSY. - power steering (See Figure 105A) (Order A57440), Serial Range: -8323504

1шт.

8

A57914

PUMP ASSY. - power steering (See Figure 104), Start Serial: 8343146

1шт.

8

A57439

PUMP ASSY. - power steering (See Figure 104), Serial Range: 8323504-8343146

1шт.

8

A33059

PUMP ASSY. - power steering (See Figure 104) (Order A57439), Serial Range: -8323504

1шт.

9

A21736

PLATE - pump mounting

1шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- pump studs (3/8" N.F. hex.)

4шт.

12

A21740

STRAP - pump adj.

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Adj. strap, top Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

16

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- adj. strap, bottom (3/8 x 2-3/4" N.C. hex)

1шт.

17

A23264

WASHER - (25/64 x 31/32 x 5/32")

1шт.

16

A8186

PULLEY

- pump drive

1шт.

19

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Pulley #3, 1/8" x 1/2"

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pulley Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

A34092

WASHER

- (11/32 x 1 x 3/16")

1шт.

23

A22765

BELT,32.00" L

Pulley Drive 32.00" L

1шт.

24

A23347

HOSE

- pressure (Not Grove)

1шт.

25

A23348

HOSE

- return (3/8" I.D. x 51") (Not Grove)

1шт.

26

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - return hose (5/8" clamp)

2шт.

27

A22926

CLAMP

- hose (Strap type)

1шт.
