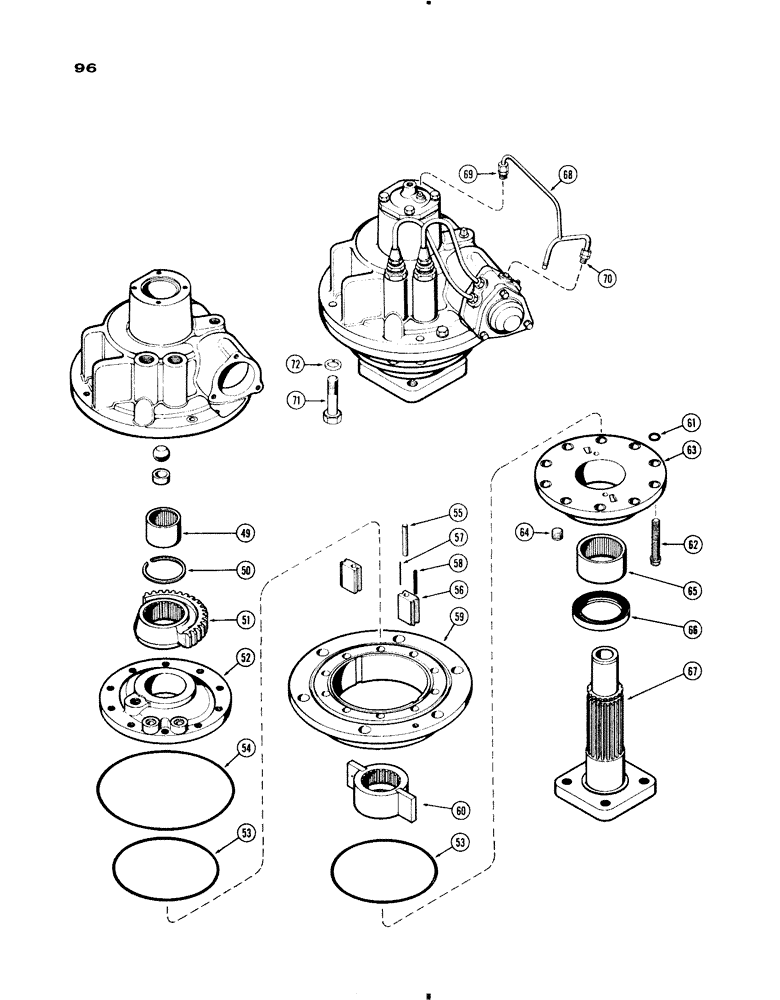

Запчасти Case IH 730 SERIES (096) - A33620 POWER STEERING GEAR, 730 GEN. PURP. AND HI-CLR. (05) - STEERING

A33620

GEAR ASSY. - steering (cont. from Figure 94), Includes: Ref. 49 - 67 and 2 - 48 on Fig. 94

1шт.

49

A28310

BEARING, NEEDLE,1.75" ID x 2.1255" OD x 1.5"

BEARING - needle, spindle, upper

1шт.

50

A27760

RING, SNAP

RING - snap,, sector gear ret.

1шт.

51

A33061

GEAR

- sector

1шт.

52

A7972

COVER - vane, upper

1шт.

53

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O"RING - vane body (6-1/4 x 6-1/2 x 1/8")

2шт.

54

A28319

O-RING,8.234" ID x 8.512" OD x 0.139"

"O"RING - cover (8-1/4 x 8-1/2 x 1/8")

1шт.

55

A7975

PIN

- stationary vane (5/16 x 2-1/4")

2шт.

56

A34186

VALVE

VANE - stationary (1-23/32" high)

2шт.

57

A57042

SEAL

- stationary vane (9/64 x 1-3/4" rubber) (Replaces A7991)

2шт.

58

A24701

SEAL

SEAL - stationary vane (13/64 x 1-3/4" rubber)

2шт.

59

A7971

BODY - vane

1шт.

60

A20354

VANE - torque motor

1шт.

61

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O"RING - cover bolts (7/16 x 5/8 x 3/32")

10шт.

62

166-72

BOLT - cover (7/16 x 2-3/4" N.C., 12 ptd. sckt. hd)

10шт.

63

A7973

COVER - vane, lower

1шт.

64

221-841

PLUG

- cover (1/4" P.T., sckt. hd.)

1шт.

65

A28311

BEARING, NEEDLE,63.5 mm ID x 73.139 mm OD x 38.1 mm

BEARING - needle, spindle, lower (2-7/8 ID x 1-1/2")

1шт.

66

A24166

SEAL

- oil, spindle (2-1/2 x 2-1/2 x 1/2")

1шт.

67

A8649

SPINDLE - steeing (w/1 spline shaft)

1шт.

68

A23346

TUBE ASSY.

TUBE - bleed

1шт.

69

222-28

HYD CONNECTOR,5/8"-24 x 3/8" NPTF W/Nut

CONNECTOR - (3/8" P.T. male)

1шт.

70

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - tube (1/8" P.T. male)

1шт.

71

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Str. gear Hex, 5/8"-11 x 2 1/4", G5

1шт.

71

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Strg gear Hex, 5/8"-11 x 2 1/2", G5

5шт.

72

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.
