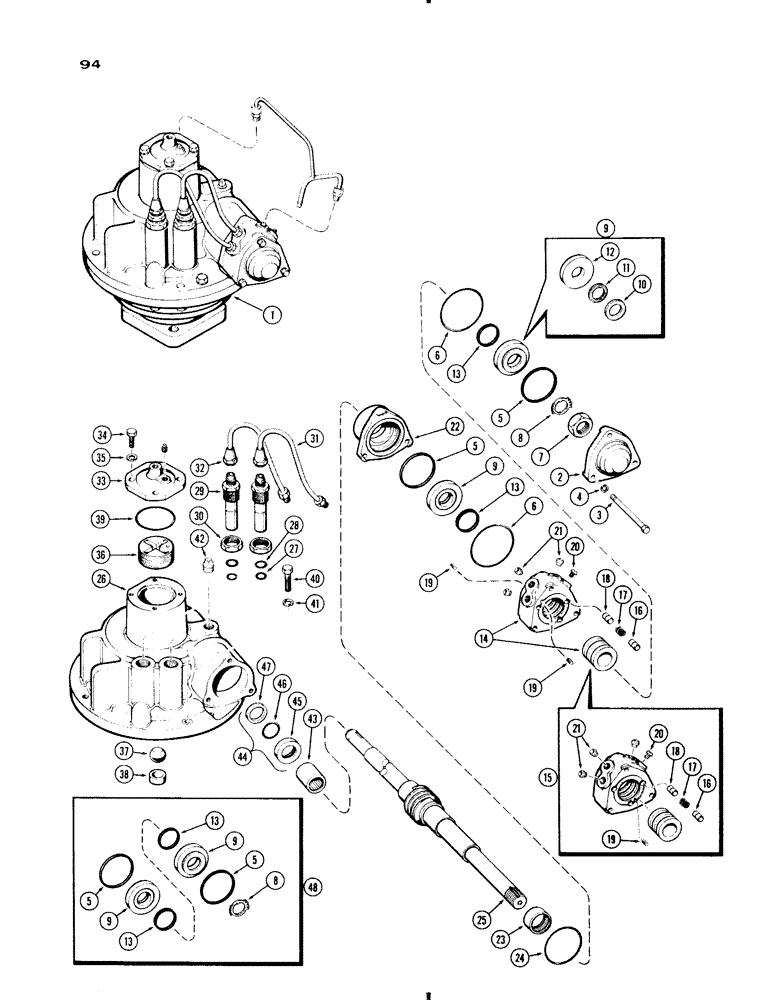

Запчасти Case IH 730 SERIES (094) - A33620 POWER STEERING GEAR, 730 GEN. PURP. AND HI-CLR. (05) - STEERING

1

A33620

GEAR ASSY. - steering (small vane motor), Includes: Ref. 2 - 48 and 49 - 67 on Fig. 96

1шт.

2

A57039

CAP - valve (replaces A33069)

1шт.

3

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- cap (3/8 x 3-3/4" N.C. hex.)

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

A57057

O-RING,0.103" Thk x 2.175" ID, -139, Cl 6, 90 Duro

"O"RING - thrust brg. (2-3/16 x 2-3/8 x 3/32") (replaces A23904) (See ref. 48)

2шт.

6

A7990

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

"O"RING - cap & carrier (2-13/16 x 3 x 3/32")

2шт.

7

A7988

NUT

- thrust brg. ret. (1" - 16 hex. spec.)

1шт.

8

A8317

LOCK ASSY

LOCK - wormshaft nut (see ref. 48)

1шт.

9

A57044

BEARING

ASSY. - (replaces A33067) (see ref. 48), Includes: Ref. 10 - 12

2шт.

10

NSS

NOT SOLD SEPARAT

RACE - thrust brg., (1" O.D.)

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - thrust, needle

1шт.

12

NSS

NOT SOLD SEPARAT

RACE - thrust brg. (2-7/32" O.D.)

1шт.

13

A57041

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

"O"RING - thrust brg. (1-1/4 x 1-7/16 x 3/32") (replaces A13084) (see ref. 48)

2шт.

14

A34297

VALVE ASSY - (w/2 orifices) 7, Includes: Ref. 16 - 21, Start Serial: 8276696

1шт.

15

A33062

VALVE ASSY. - (w/1 orifice) (Order A34297) 7, Includes: Ref. 16 - 21, Serial Range: -8276696

1шт.

16

A33064

PLUNGER - valve centering (drilled)

3шт.

17

A33065

SPRING

- valve centering

3шт.

18

A9475

PLUNGER

- valve centering (solid)

3шт.

19

A33066

ORIFICE - dampening (2 used w/A34297, 1 used w/A33062)

1шт.

20

A9474

VALVE

- check

1шт.

21

A15233

SEAT

- power strg. lines

3шт.

22

A57040

CARRIER

- worm shaft brg. (replaces A33070)

1шт.

23

A7985

BEARING, NEEDLE,1.25" ID x 1.5" OD x 0.75"

BEARING - needle, worm shaft, front

1шт.

24

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - carrier (2-1/2 x 2-3/4 x 1/8")

1шт.

25

A9392

SHAFT - worm

1шт.

26

A7970

HOUSING - steering gear

1шт.

27

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O"RING - connector (7/16 x 5/8 x 3/32")

2шт.

28

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O"RING - connector (5/8 x 13/16 x 3/32")

2шт.

29

A7979

CONNECTOR - valve inlet & outlet

2шт.

30

A7980

LOCK NUT

NUT - lock, connector

2шт.

31

A8309

TUBE - hsg. to valve (5-1/4" long)

1шт.

32

A8308

TUBE

- hsg. to valve (6-13/16" long)

1шт.

33

A26371

COVER - housing

1шт.

34

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

A28314

PLUG - thrust ball, upper seat

1шт.

37

A28312

BALL

- thrust, spindle

1шт.

38

A28313

SEAT

SADDLE - thrust ball, lower seat

1шт.

39

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O"RING - cover (2-3/8 x 2-5/8 x 1/8")

1шт.

40

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hsg. (3/8 x 1-1/2" N.C. hex.)

2шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - housing (1/2" P.T., sq. hd. )

1шт.

43

A7986

NEEDLE BEARING,1" ID x 1.25" OD x 3"

BEARING - needle, worm shaft, rear

1шт.

44

A22660

SEAL

KIT - worm shaft, dust, Includes: Ref. 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

CARRIER - dust seal

1шт.

46

A9394

RING

QUAD RING - (1 x 1-1/4 x 1/8")

1шт.

47

A9393

SEAL

- dust (1 x 1-3/8" x 3/16")

1шт.

48

A57202

VALVE

VANE KIT - (incl. Refs. 5, 8, 9 & 13)

1шт.
