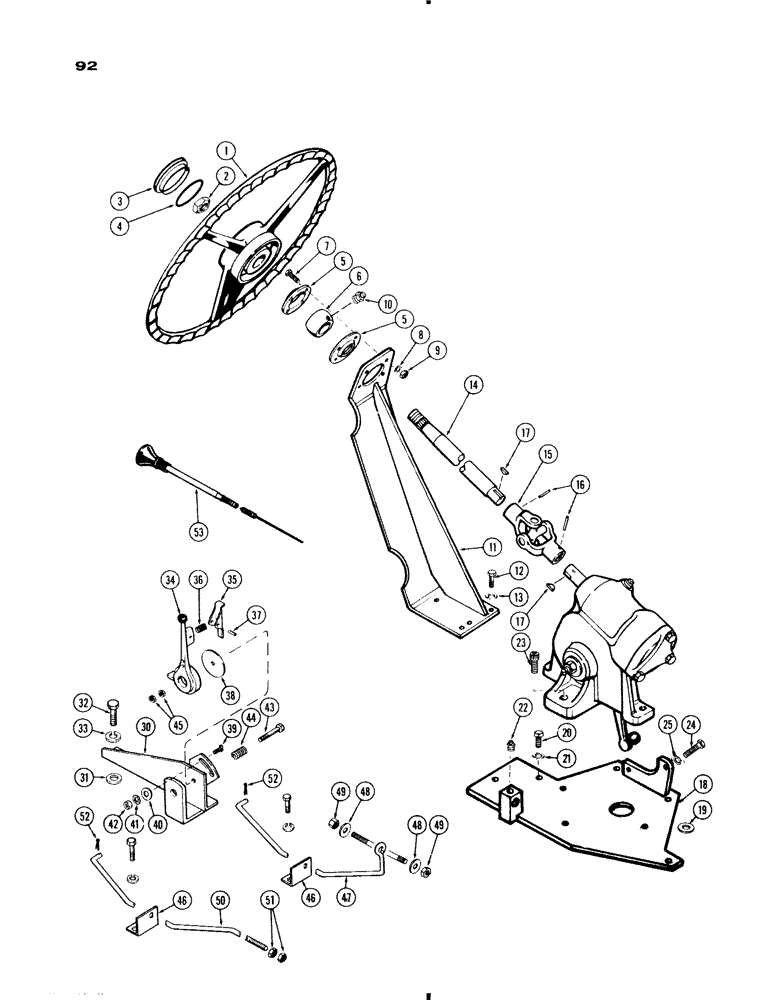

Запчасти Case IH 730 SERIES (092) - STEERING GEAR LINKAGE, THROTTLE LINKAGE, 730 GROVE (05) - STEERING

1

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

- wheel ret. (3/4" N.F. half hex.)

1шт.

3

A35603

CAP

MEDALLION - power str. (Replaces A20475)

1шт.

4

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O"RING - medallion (2-1/2 x 2-3/4 x 1/8")

1шт.

5

A8959

RETAINER

CAP - ball ret.

2шт.

6

A9598

BALL

- str. shaft brg.

1шт.

7

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

25-104

NUT,1/4"-20, G5

4шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str)

1шт.

11

A10279

SUPPORT - str. shaft & brg.

1шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Support Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

13

92-8

LOCK WASHER,1/2"

3шт.

14

A33834

SHAFT - steering

1шт.

15

A7511

JOINT

ASSY. - universal

1шт.

16

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, , Univ. joint 3/16" x 1 3/8", Slotted

2шт.

17

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - univ. joint (#11 Woodruff)

2шт.

18

A33831

PLATE - str. gear mtg.

1шт.

19

A8966

SPACER - mtg. plate

1шт.

20

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Plate to cover

2шт.

21

92-8

LOCK WASHER,1/2"

2шт.

22

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" drive, str.)

1шт.

23

166-111

BOLT - plate to hsg. (5/8 x 1" N.C. sckt. hd.)

3шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Plate to housing Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

A33826

PLATE - shift decal mtg.

1шт.

30

A33811

BRACKET - throttle lever, linkage

1шт.

31

95-10

WASHER,5/8"

SPACER - brkt. (11/16 x 1-3/4 x 9/64"), throttle linkage

1шт.

32

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Bracket, throttle linkage Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Throttle linkage 5/8"

1шт.

34

A9202

LEVER - throttle control, linkage

1шт.

35

A8011

LOCK - shut-off, throttle linkage

1шт.

36

A8012

SPRING

- shut-off lock, throttle linkage

1шт.

37

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Throttle linkage 3/16" x 3/4", Slotted

1шт.

38

A27062

GASKET

DISC - friction, throttle linkage

1шт.

39

A9203

STOP - throttle lever, linkage

1шт.

40

195-21

WASHER,5/16"

- (11/32 x 11/16 x 1/16"), Throttle linkage

1шт.

41

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" int. ext. skpf.), throttle linkage

1шт.

42

25-155

JAM NUT,Jam, 5/16"-24, G5

- (5/16" N. F. half hex.), throttle linkage

1шт.

43

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Lever, Throttle linkage Hex, 5/16"-18 x 2 1/4", G5

1шт.

44

A27065

SPRING

- lever, throttle linkage

1шт.

45

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.), throttle linkage

2шт.

46

A33814

SUPPORT - rod guide, throttle linkage

1шт.

47

A33815

ROD - throttle rear (Gas & Diesel), linkage

1шт.

48

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64"), throttle linkage

2шт.

49

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N. F. hex.), throttle linkage

2шт.

50

A33816

ROD - throttle rear (lP), linkage

1шт.

51

25-115

NUT,5/16"-24, G5

- (5/16" NF hex), throttle linkage

2шт.

52

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Throttle linkage 3/32" x 5/8"

1шт.

53

A10234

CABLE

CHOKE ASSY., throttle linkage

1шт.
